Indicator

  • 17-08035W

17-08035W Indicator, Ø 8 mm, Ø 9,5 mm, Round, Plug-in terminal, 2.8 x 0.8 mm, White
17-08035W
0 in stock 24.75 USD
Add to Cart
Your product:
17-08035W

17-08035W

Indicator

24.75 USD0 in stock
Front
Front dimension:
Ø 9,5 mm
Front form:
Round
Reflector:
Metal, polished chromium-plated, domed
Mounting
Design:
Raised
Mounting cut-out:
Ø 8 mm
Mounting type:
Panel mounting
Operating-/Indication part
Lens:
round
Illumination colour:
White
Electrical characteristics
Operating voltage:
24 V AC/DC ±10 %
Operation current:
3 - 6 mA ±15 %
Lumi. Intensity:
1000 mcd
Polarity:
Anode (+) Brass plug-in connector
Cathode (-) Brass tinned plug-in connector
Mechanical Characteristics
Terminal:
Plug-in terminal, 2.8 x 0.8 mm
Tightening torque:
Fixing nut max. 0.2 Nm
Weight:
0.005 kg
Ambient Condition
IP Protection:
IP40 front side, IP65 front side, according to IEC 60529
Operating temperature:
– 20 °C … + 60 °C
Storage temperature:
– 25 °C … + 80 °C
Certificate
Approbations:
UL
Conformities:
2011 / 65 / EC (RoHS), 2014 / 35 / EU (230 VAC)
REACH:
REACH compliant
RoHS:
RoHS compliant
Other
Short Description:
Indicator, Ø 8 mm, Ø 9,5 mm, Round, Plug-in terminal, 2.8 x 0.8 mm, White
Kind of iIllumination:
Single-LED
Product attributes:
Sunlight visibility
Hints:
Connectors: Brass terminal = anode (+); brass tinned terminal = cathode (-)
IP67 front side gap between LED and reflector and gap between reflector and frontplate sealed to IP67 when using the supplied gasket.
The plastic is limited resistant to chemicals.
Wiring diagrams:
Wiring diagrams
Mounting cut-outs:
Mounting cut-outs

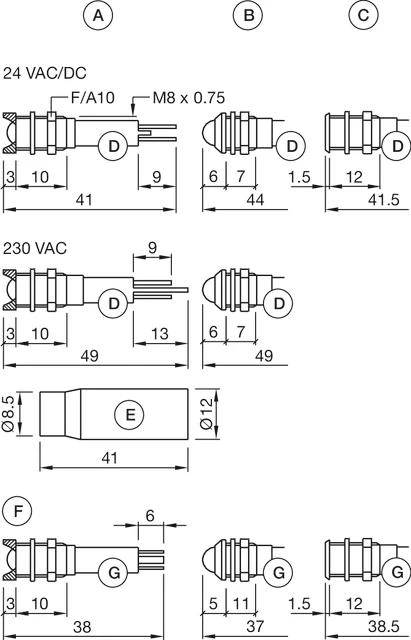

Dimension drawings:
Dimension drawings
A = interior
B = exterior
C = superflat
D = Plug-in terminal 2.8 mm x 0.8 mm
E = Multi-colour
F = Protection tube
G = Plug-in terminal 2.0 mm x 0.5 mm
