Actuator

  • 19-452.035

19-452.035 Actuator, Ø 8 mm, 9 mm x 9 mm, Illuminated, Square, Black, Plastic, 1 NC, Momentary, Plug-in terminal, 2 x 0.5 mm
19-452.035
Component for 18.20 USD
Add to Cart
Your product:
19-452.035

19-452.035

Actuator

18.20 USD5 in stock
Front
Front dimension:
9 mm x 9 mm
Front form:
Square
Front bezel colour:
Black
Front bezel material:
Plastic
Mounting
Design:
Raised
Mounting cut-out:
Ø 8 mm
Mounting type:
Panel mounting
Operating-/Indication part
Lens illumination:
Illuminated
Electrical characteristics
Switching voltage and switching current:

100 mA at 42 VAC/VDC
Contacts:
1 NC
Switching rating:
50 V @ 0,1 A
Electric strength:
2500 VAC, 50 Hz, 1 minute, as per IEC 60512-2-11 between all terminals and earth
Mechanical Characteristics
Terminal:
Plug-in terminal, 2 x 0.5 mm
Contact material:
Gold
Switching action:
Momentary
Switching system:
Low-level element
Switching system:
This low-level switching element was developed for low switching voltages and currents.
Single-break momentary contact, as normally open or normally closed with 4 independent points of contact.
Mechanical lifetime:
5 Mil. cycles of operation
Operating force:
1.8 N ±0.3 N
Operating Travel:
ca. 2.8 mm ± 0.2 mm
Tightening torque:
Fixing nut max. 0.2 Nm
Wire cross section:
Max. wire diameter 2 wires à 0.8 mm
Max. wire cross-section of stranded cable 1 x 0.75 mm²
Weight:
0.003 kg
Ambient Condition
IP Protection:
IP40 front side, according to DIN EN 60529
Operating temperature:
– 25 °C … + 45 °C with filament lamp, – 25 °C … + 65 °C with LED, – 25 °C … + 65 °C without illumination, mounted as a block, make sure the heat can escape freely
Storage temperature:
– 40 °C … + 85 °C
Shock resistance:
15 g for 11 ms, as per DIN/EN 60512-4-3, IEC 60068-2-27 (Single impacts, semi-sinusoidal)
Certificate
Conformities:
2011 / 65 / EC (RoHS)
REACH:
REACH compliant
RoHS:
RoHS compliant
Other
Short Description:
Actuator, Ø 8 mm, 9 mm x 9 mm, Illuminated, Square, Black, Plastic, 1 NC, Momentary, Plug-in terminal, 2 x 0.5 mm
Internal size:
7,3 mm x 7,3 mm
Housing colour:
Black
Housing material:
Plastic
Wiring diagrams:
Wiring diagrams

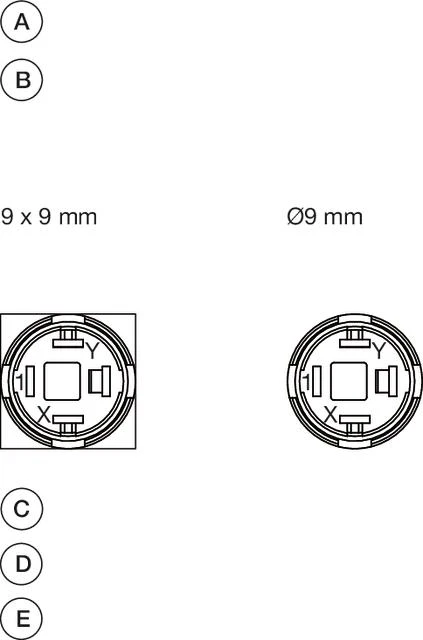

Component layouts:
Component layouts
A = Terminals (rear side)
B = Illuminated pushbutton
C = x = Contact No.
D = 2 = Normally open
E = 4 = Normally close

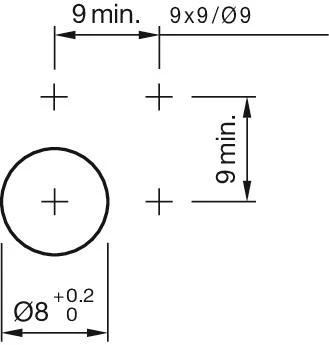

Mounting cut-outs:
Mounting cut-outs

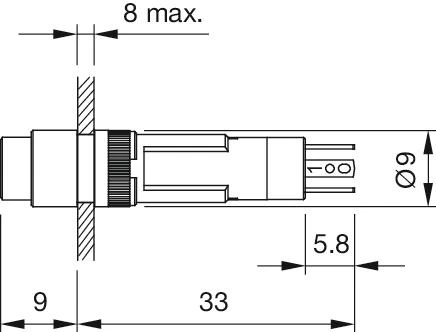

Dimension drawings:
Dimension drawings
Download files
Component for 18.20 USD
Add to Cart
