https://mouser.eao.com/component/51-457.036D/...

Actuator

  • 51-457.036D

51-457.036D Actuator, 18 mm x 18 mm, Square, 2 NO, Rest (a) - Momentary, Universal terminal, 2 x 0.5 mm, IP65, according to DIN EN 60529
51-457.036D
0 in stock 76.59 USD
Add to Cart
Your product:
51-457.036D

51-457.036D

Actuator

76.59 USD0 in stock
Front
Front dimension:
18 mm x 18 mm
Front form:
Square
Mounting
Design:
Raised
Mounting type:
Panel mounting
Electrical characteristics
Switching voltage and switching current:
100 mA at 42 VAC/VDC
Contacts:
2 NO
Switching rating:
42 V @ 0,1 A
Electric strength:
2500 VAC, 50 Hz, 1 min. between all terminals and earth, according to IEC 61058-1, part 15
Electrostatic discharge (ESD):
≤ 15 KV
Mechanical Characteristics
Terminal:
Universal terminal, 2 x 0.5 mm
Contact material:
Gold
Switching action:
Rest (a) - Momentary
Switching system:
Low-level element
Switching system:
This low-level switching element was designed for switching low powers in electronic circuits. The mechanism assures reliable switching of loads ranging from a few μA/μV up to 100 mA/ 42 VAC/DC.
Single-break momentary contact, as normally open or normally closed with 4 independent points of contact. 2 momentary contactsper switching element; combination of normally open and normally closed is possible.
Special features are the long life, extremely short rebound time and stable contact resistance.
Switching positions:
2 positions
Switching angle:
42° right
Mechanical lifetime:
50 000 cycles of operation
Operating force:
1,8 … 3,5 N
Tightening torque:
Fixing nut max. 0.5 Nm
Terminal details 1:
The universal terminals permit these units to be mounted on printed circuit boards (PCB). These terminals can also be used as soldering or plug-in terminals.
For these terminals we can also supply a plug-in base which, when soldered on to the board, enables the switch to be plugged in.
Weight:
0.02 kg
Ambient Condition
IP front protection:
IP65, according to DIN EN 60529
Operating temperature:
– 25 °C … + 55 °C
Storage temperature:
– 40 °C … + 85 °C
Shock resistance:
15 g for 11 ms, as per DIN / EN 60512-4-3, DIN / EN 60068-2-27 (Single impacts, semi-sinusoidal)
Certificate
Approbations:
CB (IEC 61058-1), CQC, CSA, DNV, ENEC (EN 61058-1), UL
REACH:
REACH compliant
RoHS:
RoHS compliant
Other
Short Description:
Actuator, 18 mm x 18 mm, Square, 2 NO, Rest (a) - Momentary, Universal terminal, 2 x 0.5 mm, IP65, according to DIN EN 60529
Housing colour:
Black
Hints:
Standard lock: DOM 311
Switching positions:
Switching positions

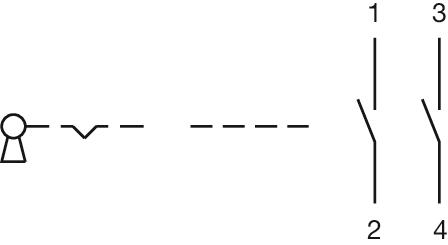

Wiring diagrams:
Wiring diagrams

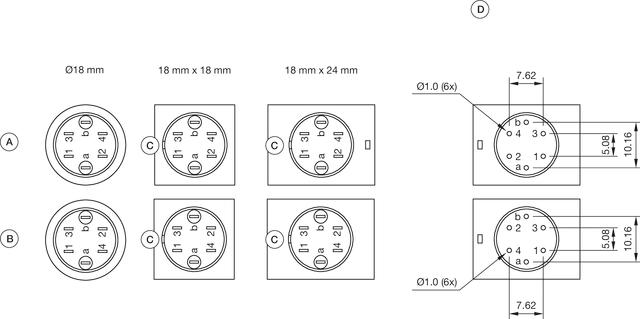

Component layouts:
Component layouts
A = Universal terminal (rear side)
B = Plug-in terminal (rear side)
C = Anti twist device
D = Drilling plan
Mounting cut-outs:
Mounting cut-outs

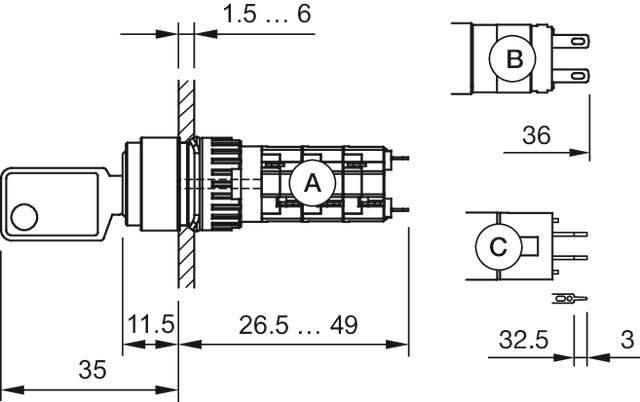

Dimension drawings:
Dimension drawings
A = Solder terminal
B = Plug-in terminal 2.8 mm x 0.5 mm
C = Universal terminal 2.0 mm x 0.5 mm
Download files
0 in stock 76.59 USD
Add to Cart
