Actuator

  • 704.101.018KNI

704.101.018KNI Actuator, Ø 30.5 mm, Ø 35 mm, non illuminative, Black, long, Round, Nature, Aluminium, anodised
704.101.018KNI
0 in stock 48.73 USD
Add to Cart
Your product:
704.101.018KNI

704.101.018KNI

Actuator

48.73 USD0 in stock
Front
Front dimension:
Ø 35 mm
Front form:
Round
Front bezel colour:
Nature
Front bezel material:
Aluminium
Mounting
Design:
Flush
Mounting cut-out:
Ø 30.5 mm
Mounting type:
Panel mounting
Operating-/Indication part
Lever colour:
Black
Lever bar colour:
White
Lever material:
plastic
Lever shape:
long
Mechanical Characteristics
Weight:
0.043 kg
Certificate
REACH:
REACH compliant
RoHS:
RoHS compliant
Other
Short Description:
Actuator, Ø 30.5 mm, Ø 35 mm, non illuminative, Black, long, Round, Nature, Aluminium, anodised
Hints:
The colour of anodised aluminium parts can vary due to technical production reasons
max. number of switching elements:
1

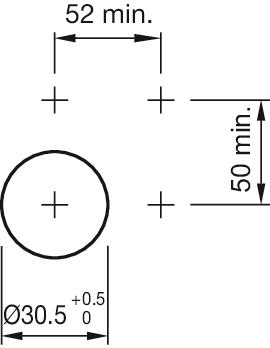

Mounting cut-outs:
Mounting cut-outs

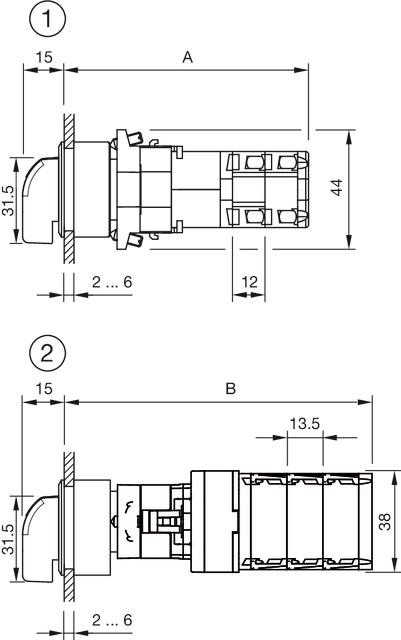

Dimension drawings:
Dimension drawings
1 = Kraus & Naimer switching element
A = (Number of stages x 12) + 66.5 mm
2 = Santon switching element
B = (Number of stages x 13.5) + 65.5 mm
