Illuminated push button, Ø 22 mm, stainless steel 316L, cable 200 mm, 90°

  • 82-665C.2154

82-665C.2154 Illuminated push button, Ø 22 mm, stainless steel 316L, cable 200 mm, 90°, Maintained, 35 V AC/DC @ 0,6 A, 24 V DC (LED), Cable 200 mm, 90°, Round, Stainless steel 316L, White, Silver
82-665C.2154
Component for 67.09 USD
Add to Cart
Your product:
82-665C.2154

82-665C.2154

Illuminated push button, Ø 22 mm, stainless steel 316L, cable 200 mm, 90°

67.09 USD4 in stock
Front
Front dimension:
Ø 25 mm
Front form:
Round
Front bezel material:
Stainless steel 316L
Front bezel shape:
Flush
Mounting
Mounting cut-out:
Ø 22 mm
Mounting type:
Panel mounting
Operating-/Indication part
Lens colour:
Silver
Lens material:
Stainless steel 316L
Lens illumination:
Illuminated
Lens shape:
Flush
Lens optics:
opaque
Illumination colour:
White
Shape of illumination:
Ring (Tritan)
Electrical characteristics
Switching voltage and switching current:

according to UL 508 (Silver contacts)

cosφ 0,75 … 0,8

Voltage

Current

120 VAC

5 A

240 VAC

3 A

24 VAC

1 A

according to IEC 60947-5-1 (Silver contacts)

Service categorie AC-15

Voltage

Current

24 VAC

1 A

35 VAC

1 A (M12 version)

110 VAC

1 A

220 VAC

0.5 A

Switch rating DC service categorie DC-13 (Silver contacts)

Voltage

Current

24 VDC

0.7 A

35 VDC

0.5 A (M12 version)

110 VDC

0.2 A

220 VDC

0.1 A
Operating voltage:
24 V DC (LED)
Rated Operational Voltage Ue:
250 VAC
Rated insulation voltage Ui:
250 V
Switching rating:
35 V AC/DC @ 0,6 A
Electrical lifetime:
50 000 cycles of operation
Electric strength:
1500 VAC, 50 Hz 1 minute between life terminals and ground
Pollution degree:
2, according to EN IEC 60947-1
Thermal current Ith:
5 A
Mechanical Characteristics
Terminal:
Cable 200 mm, 90°
Switching action:
Maintained
Switching system:
Snap-action switching element
Mechanical lifetime:
500 000 cycles of operation
Operating force:
4 N … 7 N
Operating Travel:
ca. 3 mm
Tightening torque:
0.5 … 0.6 Nm
Weight:
0.04 kg
Ambient Condition
IP front protection:
IP65, IP67
Operating temperature:
– 30 °C … + 70 °C
Storage temperature:
– 40 °C … + 80 °C
Shock resistance:
Max. 500 m / s² as per IEC 60068-2-27
Vibration resistance:
10 … 500 Hz, amplitude 1.5 mm p-p according to IEC 60068-2-6
Climate resistance:
Damp heat, 21 days according to IEC 60512-11
Certificate
Conformities:
CE, 2011 / 65 / EC (RoHS), 2014 / 35 / EU (LVD)
REACH:
REACH compliant
RoHS:
RoHS compliant
Other
Short Description:
Illuminated push button, Ø 22 mm, stainless steel 316L, cable 200 mm, 90°, Maintained, 35 V AC/DC @ 0,6 A, 24 V DC (LED), Cable 200 mm, 90°, Round, Stainless steel 316L, White, Silver
Kind of iIllumination:
Single-LED
Housing size:
19 mm
Hints:
Cable with certification ECE-R118

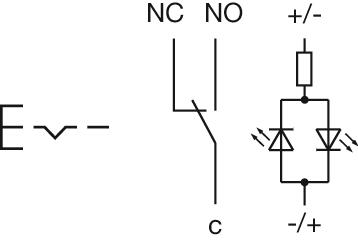

Wiring diagrams:
Wiring diagrams
Component layouts:
Component layouts
1 = NC
2 = LED+
3 = Common
4 = LED-
5 = NO
A-Coded

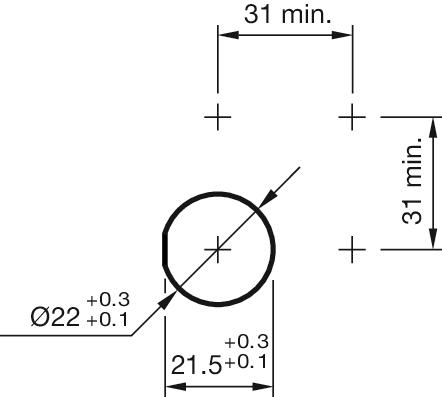

Mounting cut-outs:
Mounting cut-outs
Dimension drawings:
Dimension drawings
Download files
Component for 67.09 USD
Add to Cart
Cookie consent
Our website uses cookies. For more information about cookies on this website, please see our Privacy Policy and learn more about us in the Legal Notice. You may change the setting in the Privacy Policy.
Accept all
Reject non-required
Manage Settings
