Front
- Front dimension:
- Ø 32 mm
- Front form:
- Round
Mounting
- Mounting cut-out:
- Ø 22.3 mm
- Mounting type:
- Panel mounting
Operating-/Indication part
- Lens colour:
- Red-white
- Lens material:
- Plastic, according to UL 94 V0
- Lens illumination:
- Non illuminated
- Lens shape:
- Mushroom-head
- Lens optics:
- opaque
- Lens:
- round
- Switching position ring:
- Green
Electrical characteristics
- Switching voltage and switching current:
Switch rating AC with silver contact (gold plated)
Service category AC-15 as per EN IEC 60947-5-1
Voltage
120 VAC
240 VAC
Current
3 A
1,5 A
Switch rating AC with silver contact (gold plated)
Service category DC-13 as per EN IEC 60947-5-1
NO contacts
NC contacts
NO/NC contacts
(48 VA)
(60 VA)
12 VDC/2.0 A
12 VDC/2.5 A
125 VDC/0.22 A
24 VDC/2.0 A
24 VDC/2.5 A
250 VDC/0.11 A
48 VDC/1.0 A
48 VDC/1.25 A
60 VDC/0.8 A
60 VDC/1.0 A
- Contacts:
- 1 NC
- Rated Operational Voltage Ue:
- 250 VAC/DC according to EN IEC 60947-1
- Rated impulse withstand voltage Uimp:
- 4 kV, according to EN IEC 60947-1
- Rated insulation voltage Ui:
- 250 V according to EN / IEC 60947-1
- Rated short-circuit current caused:
- 1 000 A, type of short-circuit device 6 A gG (EN 60947-5-1)
- Recommended minimum operational data:
Silver contacts (gold plated)
Voltage
1 VAC/DC
Current
1 mA
- Switching rating:
- 250 V AC @ 1,5 A
- Electrical lifetime:
- 50 000 cycles of operation
- Electric strength:
- 500 VAC, 50 Hz, 1 minute according to DIN IEC 60512-2
- Overvoltage category:
- III, according to EN / IEC 61058-1
- Pollution degree:
- 3, according to EN IEC 60947-1
- Protection class:
- II, according to EN / IEC 60947-5
- Standards:
- According to EN 60947-5-1, EN 60947-5-5, DIN EN ISO 13850, EN IEC 60204
- Thermal current Ith:
- 5 A
Mechanical Characteristics
- Terminal:
- Plug-in terminal, 2.8 x 0.5 mm
- Contact material:
- Gold
- Switching action:
- Maintained
- Switching system:
- Slow-make switching element
- Release type:
- Twist to unlock
- Mechanical lifetime:
- 250 000 cycles of operation
- Operating force:
- 20 N ±4 N
- Operating Travel:
- ca. 4 mm
- Tightening torque:
- Fixing nut 0.8 Nm
- Weight:
- 0.024 kg
Ambient Condition
- IP front protection:
- IP65, IP66, IP67, according to DIN EN 60529
- IK Protection:
- IK07 as per IEC 62262
- Operating temperature:
- – 25 °C … + 70 °C
- Storage temperature:
- – 25 °C … + 85 °C
- Shock resistance:
- Max. 150 m / s², pulse width 11 ms, 3-axis, (semi-sinusoidal as per EN IEC 60068-2-27)
- Vibration resistance:
- Max. 50 m / s² from 10 Hz ... 500 Hz, 10 cycles, 3-axis (sinusoidal EN IEC 60068-2-6)
- Climate resistance:
- Damp heat, cyclic: 96 hours, + 25 °C/97 %, + 55 °C/93 % relative humidity, as per EN IEC 60068-2-30Damp heat, steady: 56 days, + 40 °C/93 % relative humidity, according to EN IEC 60068-2-78Saline mist: 96 hours, + 35 °C in chemical solution NaCl, as per EN IEC 60068-2-11Dry heat: 96 hours, + 70 °C, as per EN IEC 60068-2-2Low temperature: 96 hours, – 40 °C (as per EN IEC 60068-2-1)Simulated solar radiation test SA2 and weathering test SB1 as per EN IEC 60068-2-5
Certificate
- Approbations:
- CB (IEC 60947-5-1. IEC60947-5-5), CCC, EN ISO 13850, UL NISD
- Conformities:
- CE, UKCA, 2006 / 42 / EC (MD), 2011 / 65 / EC (RoHS)
- REACH:
- REACH compliant
- RoHS:
- RoHS compliant
Other
- Short Description:
- Emergency stop switch, Ø 22.3 mm, Ø 32 mm, Mushroom-head, Non illuminated, Red-white, Plastic, according to UL 94 V0, opaque, Round, 1 NC, Maintained, Plug-in terminal, 2.8 x 0.5 mm, IP65, IP66, IP67, according to DIN EN 60529, Twist to unlock
- Material:
- Plastic, according to UL 94 V0
- Housing colour:
- Yellow
- Housing material:
- Plastic, according to UL 94 V0
- Hints:
- Twist to unlock clockwiseFoolproof according to EN IEC 60947-5-5
- Description component:
- The double-break switching system can be supplied for the following switching functions: 1 Normally closed, 2 Normally closed, 1 Normally closed + 1 Normally open. The Normally closed contacts have forced opening according to EN 60947-5-5

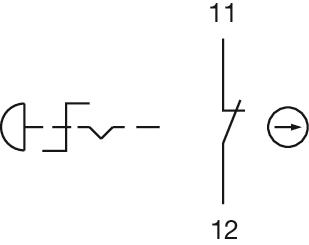

- Wiring diagrams:

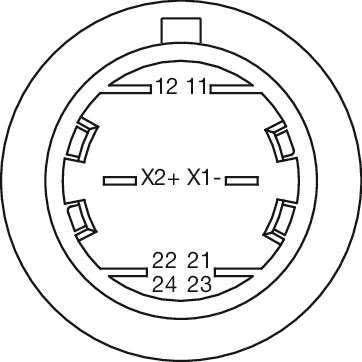

- Component layouts:

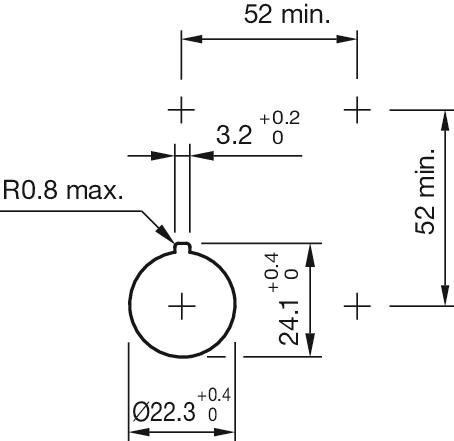

- Mounting cut-outs:
- Dimension drawings:
