Emergency stop switch

  • 84-5341.2B20

84-5341.2B20 Emergency stop switch, Ø 22.3 mm, Ø 32 mm, Mushroom-head, Illuminated, Red, Plastic, according to UL 94 V0, opaque, Round, 2 NC, Maintained, Plug-in terminal, 2.8 x 0.5 mm, IP65, IP66, IP67, according to DIN EN 60529, Twist to unlock, Red
84-5341.2B20
0 in stock 60.42 USD
Add to Cart
Your product:
84-5341.2B20

84-5341.2B20

Emergency stop switch

60.42 USD0 in stock
Front
Front dimension:
Ø 32 mm
Front form:
Round
Mounting

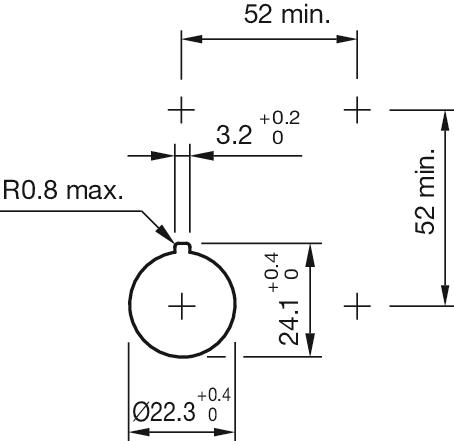

Mounting cut-out:
Ø 22.3 mm
Mounting type:
Panel mounting
Operating-/Indication part
Lens colour:
Red
Lens material:
Plastic, according to UL 94 V0
Lens illumination:
Illuminated
Lens shape:
Mushroom-head
Lens optics:
opaque
Lens:
round
Switching position ring:
Green
Illumination colour:
Red
Electrical characteristics
Switching voltage and switching current:

Switch rating AC with silver contact (gold plated)

Service category AC-15 as per EN IEC 60947-5-1

Voltage

120 VAC

240 VAC

Current

3 A

1,5 A

Switch rating AC with silver contact (gold plated)

Service category DC-13 as per EN IEC 60947-5-1

NO contacts

NC contacts

NO/NC contacts

(48 VA)

(60 VA)

12 VDC/2.0 A

12 VDC/2.5 A

125 VDC/0.22 A

24 VDC/2.0 A

24 VDC/2.5 A

250 VDC/0.11 A

48 VDC/1.0 A

48 VDC/1.25 A

60 VDC/0.8 A

60 VDC/1.0 A
Contacts:
2 NC
Operating voltage:
5 - 30 V DC (LED)
Operation current:
9,7 - 12,4 mA
Rated Operational Voltage Ue:
250 VAC/DC according to EN IEC 60947-1
Rated impulse withstand voltage Uimp:
4 kV, according to EN IEC 60947-1
Rated insulation voltage Ui:
250 V according to EN / IEC 60947-1
Rated short-circuit current caused:
1 000 A, type of short-circuit device 6 A gG (EN 60947-5-1)
Recommended minimum operational data:

Silver contacts (gold plated)

Voltage

1 VAC/DC

Current

1 mA
Switching rating:
250 V AC @ 1,5 A
Electrical lifetime:
50 000 cycles of operation
Electric strength:
500 VAC, 50 Hz, 1 minute according to DIN IEC 60512-2
Overvoltage category:
III, according to EN / IEC 61058-1
Pollution degree:
3, according to EN IEC 60947-1
Protection class:
II, according to EN / IEC 60947-5
Standards:
According to EN 60947-5-1, EN 60947-5-5, DIN EN ISO 13850, EN IEC 60204
Thermal current Ith:
5 A
Mechanical Characteristics
Terminal:
Plug-in terminal, 2.8 x 0.5 mm
Contact material:
Gold
Switching action:
Maintained
Switching system:
Slow-make switching element
Release type:
Twist to unlock
Mechanical lifetime:
250 000 cycles of operation
Operating force:
20 N ±4 N
Operating Travel:
ca. 4 mm
Tightening torque:
Fixing nut 0.8 Nm
Weight:
0.028 kg
Ambient Condition
IP front protection:
IP65, IP66, IP67, according to DIN EN 60529
IK Protection:
IK07 as per IEC 62262
Operating temperature:
– 25 °C … + 70 °C
Storage temperature:
– 25 °C … + 85 °C
Shock resistance:
Max. 150 m / s², pulse width 11 ms, 3-axis, (semi-sinusoidal as per EN IEC 60068-2-27)
Vibration resistance:
Max. 50 m / s² from 10 Hz ... 500 Hz, 10 cycles, 3-axis (sinusoidal EN IEC 60068-2-6)
Climate resistance:
Damp heat, cyclic: 96 hours, + 25 °C/97 %, + 55 °C/93 % relative humidity, as per EN IEC 60068-2-30
Damp heat, steady: 56 days, + 40 °C/93 % relative humidity, according to EN IEC 60068-2-78
Saline mist: 96 hours, + 35 °C in chemical solution NaCl, as per EN IEC 60068-2-11
Dry heat: 96 hours, + 70 °C, as per EN IEC 60068-2-2
Low temperature: 96 hours, – 40 °C (as per EN IEC 60068-2-1)
Simulated solar radiation test SA2 and weathering test SB1 as per EN IEC 60068-2-5
Certificate
Approbations:
CB (IEC 60947-5-1. IEC60947-5-5), CCC, EN ISO 13850, UL NISD
Conformities:
CE, UKCA, 2006 / 42 / EC (MD), 2011 / 65 / EC (RoHS)
REACH:
REACH compliant
RoHS:
RoHS compliant
Other
Short Description:
Emergency stop switch, Ø 22.3 mm, Ø 32 mm, Mushroom-head, Illuminated, Red, Plastic, according to UL 94 V0, opaque, Round, 2 NC, Maintained, Plug-in terminal, 2.8 x 0.5 mm, IP65, IP66, IP67, according to DIN EN 60529, Twist to unlock, Red
Material:
Plastic, according to UL 94 V0
Housing colour:
Yellow
Housing material:
Plastic, according to UL 94 V0
Description component:
The double-break switching system can be supplied for the following switching functions: 1 Normally closed, 2 Normally closed, 1 Normally closed + 1 Normally open. The Normally closed contacts have forced opening according to EN 60947-5-5

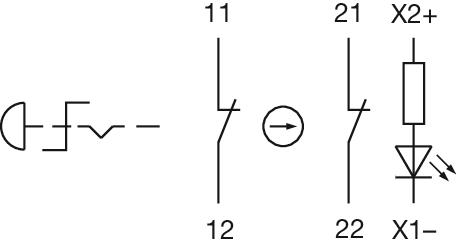

Wiring diagrams:
Wiring diagrams

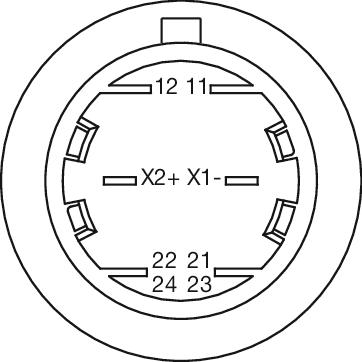

Component layouts:
Component layouts
Mounting cut-outs:
Mounting cut-outs

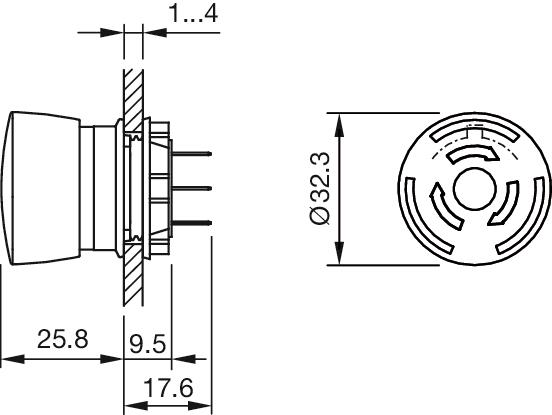

Dimension drawings:
Dimension drawings
Download files
0 in stock 60.42 USD
Add to Cart
Cookie consent
Our website uses cookies. For more information about cookies on this website, please see our Privacy Policy and learn more about us in the Legal Notice. You may change the setting in the Privacy Policy.
Accept all
Reject non-required
Manage Settings
