Assembly settings
정면
Front form
Rectangular
Rectangular
선택하다 ...
Front bezel type
Raised
Raised
선택하다 ...
Front bezel colour
Black
Black
선택하다 ...
Front bezel material
Plastic
Plastic
선택하다 ...
Front dimension
36 mm x 24 mm
36 mm x 24 mm
선택하다 ...
장착
Design
Flush
Flush
선택하다 ...
Mounting type
Panel mounting
Panel mounting
선택하다 ...
Mounting cut-out
21 mm x 29 mm
21 mm x 29 mm
선택하다 ...
작동/표시 부분
Lens shape
Flush
Flush
선택하다 ...
Lens colour
Colourless
Colourless
선택하다 ...
Lens material
Plastic
Plastic
선택하다 ...
Lens illumination
Illuminated
Illuminated
선택하다 ...
Illumination colour
White
White
선택하다 ...
전기적 특성
Operating voltage kind of
V AC/DC
V AC/DC
선택하다 ...
Operating voltage
28 V
28 V
선택하다 ...
기계적 특성
Terminal
Screw terminal
Screw terminal
선택하다 ...
주변 환경
IP front protection
IP40
IP40
선택하다 ...
뒤로
배포에 의한
Mouser
Mouser
Indicator, Series 02, 36 mm x 24 mm, Flush, IP40, Screw terminal
- 02-902.7
- 02-021.001
- 10-2K13.1079
- 02-967.0
- Lens colour
- Illumination colour
- Operating voltage
- Operating voltage kind of
- Front bezel type
액세서리 및 도구 추가
귀사의 제품:
제품 라인업
- Product Status:
- Not Recommended for new design
- HMI function:
- Indicator
- 시리즈:
- Series 02
정면
- Front dimension:
- 36 mm x 24 mm
- Front form:
- Rectangular
- Front bezel colour:
- Black
- Front bezel material:
- Plastic
- Front bezel type:
- Raised
장착
- Design:
- Flush
- Mounting cut-out:
- 21.2 mm x 29.2 mm
- Mounting type:
- Panel mounting
작동/표시 부분
- Lens colour:
- Colourless
- Lens material:
- Plastic
- Lens illumination:
- Illuminated
- Lens shape:
- Flush
- Lens optics:
- transparent
- Illumination colour:
- White
전기적 특성
- Operating voltage:
- 28 V AC/DC +10%
- Operation current:
- 2,5 - 5 mA ±15 %
- Lumi. Intensity:
- 750 mcd
기계적 특성
- Terminal:
- Screw terminal
- 총 중량:
- 0.041 kg
주변 환경
- IP front protection:
- IP40
기타
- Product attributes:
- Use holder for film insert
- Wiring diagrams:
이 제품을 공유하고 저장하세요
파일 다운로드
제품 51.96 USD
장바구니에 담기
귀사의 제품은 다음과 같이 구성됩니다 4 COMPONENTS:
제품 라인업
- Product Status:
- Not Recommended for new design
정면
- Front form:
- Rectangular
작동/표시 부분
- Lens colour:
- Colourless
- Lens material:
- Plastic
- Lens illumination:
- Illuminated
- Lens shape:
- Flush
- Lens optics:
- transparent
기계적 특성
- Weight:
- 0.004 kg
증명서
- REACH:
- REACH compliant
- RoHS:
- RoHS compliant
기타
- Short Description:
- Lens, 17.5 mm x 25.4 mm, Illuminated, Colourless, Flush, Plastic
- Dimension:
- 17.5 mm x 25.4 mm
- Product attributes:
- Use holder for film insert
파일 다운로드
구성 요소 4.04 USD
장바구니에 담기
제품 라인업
- Product Status:
- Not Recommended for new design
정면
- Front form:
- Rectangular
장착
- Design:
- Flush
- Mounting cut-out:
- 21.2 mm x 29.2 mm
- Mounting type:
- Panel mounting
기계적 특성
- Terminal:
- Screw terminal
- Weight:
- 0.034 kg
증명서
- REACH:
- REACH compliant
- RoHS:
- RoHS compliant
기타
- Short Description:
- Actuator, 21.2 mm x 29.2 mm, Rectangular, Screw terminal
- Product attributes:
- Without serie resistor, for LED or filament lamp
- Wiring diagrams:

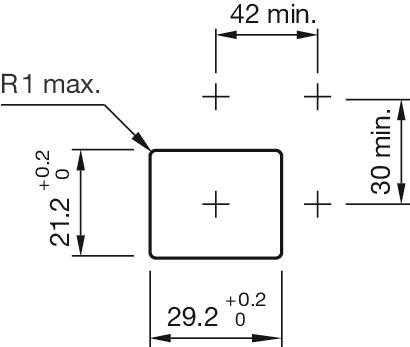

- Mounting cut-outs:
- Dimension drawings:
파일 다운로드
구성 요소 29.34 USD
장바구니에 담기
작동/표시 부분
- Illumination colour:
- White
전기적 특성
- Operating voltage:
- 28 V AC/DC +10%
- Operation current:
- 2,5 - 5 mA ±15 %
- Lumi. Intensity:
- 750 mcd
기계적 특성
- Weight:
- 0.002 kg
증명서
- REACH:
- REACH compliant
- RoHS:
- RoHS compliant
기타
- Short Description:
- Single-LED, T6.9, White, 28 V AC/DC +10%
- Kind of iIllumination:
- Single-LED
- Hints:
- Order two LEDsFor LED element fitting information see Application guidelines, LED polarityDue to high surface temperatures, the series resistor must not be soldered directly to the terminals of the equipment (use a terminal plate)When using AC/DC types with AC operation, slight flickering can occurThe luminous intensity stated is for when used with DCElectrical and optical data are measured at 25 °CThe specified versions are built with a protection diode (halve wave rectifier) in series and the LEDLuminosity and wave length variations caused by LED manufacturing processes may cause slight differences regarding the illumination.Where supply voltages are over 48 V, a voltage-reduction element (external protective series resistor) must be used.
- Wiring diagrams:

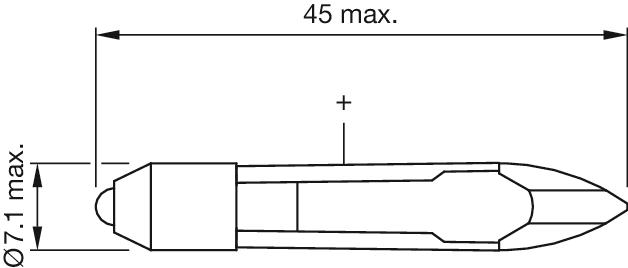

- Dimension drawings:
파일 다운로드
구성 요소 16.15 USD
장바구니에 담기
제품 라인업
- Product Status:
- Not Recommended for new design
정면
- Front dimension:
- 36 mm x 24 mm
- Front form:
- Rectangular
- Front bezel colour:
- Black
- Front bezel material:
- Plastic
- Front bezel type:
- Raised
장착
- Mounting type:
- Panel mounting
기계적 특성
- Weight:
- 0.001 kg
증명서
- REACH:
- REACH compliant
- RoHS:
- RoHS compliant
기타
- Short Description:
- Front bezel raised, 36 mm x 24 mm, Black, Plastic
- Dimension:
- 36 mm x 24 mm
파일 다운로드
구성 요소 2.43 USD
장바구니에 담기
