Bouton poussoir
Distribution par
Mouser
https://mouser.eao.com/p/ff2e8fb1

Illuminated push button, Series 02, 36 mm x 24 mm, illuminative, Flush, 2 C, Silver, IP40, Screw terminal

  • 02-902.7
  • 02-619.011
  • 10-2K19.1055
  • 02-967.0

  • Lens colour
02-902.7
  • Switching action
  • Contacts Configuration
02-619.011
  • Illumination colour
  • Operating voltage
  • Operating voltage kind of
10-2K19.1055
  • Front bezel type
02-967.0
Ajoute des accessoires & outilage
Ajouter à la comparaison
0 en stock 115.56 USD
Ajouter au panier
Votre produit:
02-902.7
02-619.011
10-2K19.1055
02-967.0

02-902.7~02-619.011~02-967.0~10-2K19.1055

Illuminated push button, Series 02, 36 mm x 24 mm, illuminative, Flush, 2 C, Silver, IP40, Screw terminal

115.56 USD0 en stock
Gamme de produits
Product Status:
Not Recommended for new design
HMI function:
Illuminated push button
Séries:
Series 02
Front
Front dimension:
36 mm x 24 mm
Front form:
Rectangular
Front bezel colour:
Black
Front bezel material:
Plastic
Front bezel type:
Raised
Montage
Design:
Flush
Mounting cut-out:
21.2 mm x 29.2 mm
Mounting type:
Panel mounting
Partie commande/affichage
Lens colour:
Colourless
Lens material:
Plastic
Lens illumination:
Illuminated
Lens shape:
Flush
Lens optics:
transparent
Illumination colour:
Green
Caractéristiques électriques
Switching voltage and switching current:

according to UL

250 VAC, 10 A

according to IEC 60947-5-1

AC-12: 400 V, 10 A

AC-15: 400 V, 6 A

AC-15: 250 V, 8 A

DC-13: 110 V, 0.4 A

DC-13: 60 V, 1 A

DC-13: 24 V, 3 A
Contacts Configuration:
2 C
Operating voltage:
48 V AC/DC +10%
Operation current:
2 - 4 mA ±15 %
Switching rating:
400 V @ 10 A
Lumi. Intensity:
600 mcd
Thermal current Ith:
10 A
Caractéristiques mécaniques
Terminal:
Screw terminal
Contact material:
Silver
Switching action:
Maintained
Switching system:
Snap-action switching element
Tightening torque:
Fixing nut max. 0.2 Nm, Screw terminal 0.8 Nm
Poids total:
0.066 kg
Conditions environnementales
IP front protection:
IP40
Operating temperature:
– 25 °C … + 55 °C, mounted as a block, make sure the heat can escape freely
Vibration resistance:
10 g at 10 Hz…2000 Hz, amplitude 1.0 mm, according to IEC 60068-2-6
Autres
Housing colour:
Black
Housing material:
Plastic
Product attributes:
Use holder for film insert

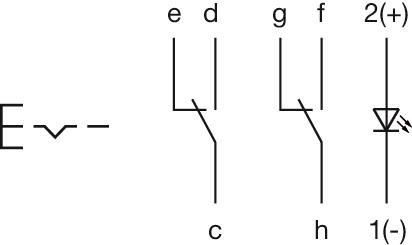

Wiring diagrams:
Wiring diagrams
Wiring diagrams
Enregistrer ou recommander un produit
Télécharger des fichiers
0 en stock 115.56 USD
Ajouter au panier
Votre produit se compose des éléments suivants 4 COMPONENTS:
02-902.7

02-902.7

Lens

4.04 USD7 en stock
Gamme de produits
Product Status:
Not Recommended for new design
Front
Front form:
Rectangular
Partie commande/affichage
Lens colour:
Colourless
Lens material:
Plastic
Lens illumination:
Illuminated
Lens shape:
Flush
Lens optics:
transparent
Caractéristiques mécaniques
Weight:
0.004 kg
Certificats
REACH:
REACH compliant
RoHS:
RoHS compliant
Autres
Short Description:
Lens, 17.5 mm x 25.4 mm, Illuminated, Colourless, Flush, Plastic
Dimension:
17.5 mm x 25.4 mm
Product attributes:
Use holder for film insert
Télécharger des fichiers
Composant pour 4.04 USD
Ajouter au panier
02-619.011

02-619.011

Actuator

94.84 USD6 en stock
Gamme de produits
Product Status:
Not Recommended for new design
Front
Front form:
Rectangular
Front bezel colour:
Black
Front bezel material:
Plastic
Montage
Design:
Flush
Mounting cut-out:
21.2 mm x 29.2 mm
Mounting type:
Panel mounting
Partie commande/affichage
Lens illumination:
Illuminated
Caractéristiques électriques
Switching voltage and switching current:

according to UL

250 VAC, 10 A

according to IEC 60947-5-1

AC-12: 400 V, 10 A

AC-15: 400 V, 6 A

AC-15: 250 V, 8 A

DC-13: 110 V, 0.4 A

DC-13: 60 V, 1 A

DC-13: 24 V, 3 A
Contacts:
2 C
Rated insulation voltage Ui:
400 VAC/440 VDC according toIEC 60947-5-1
Switching rating:
400 V @ 10 A
Electric strength:
2500 VAC, 50 Hz, 1 minute, as per IEC 60947-5-1 between all terminals and earth
Standards:
The switches comply with the “Standards for low-voltage switching devices” EN IEC 60947-5-1
Thermal current Ith:
10 A
Caractéristiques mécaniques
Terminal:
Screw terminal
Contact material:
Silver
Switching action:
Maintained
Switching system:
Snap-action switching element
Switching system:
1 or 2 self-cleaning snap action switching elements.
1 or 2 double-throw contacts.
Mechanical lifetime:
1 Mil. cycles of operation (RCC/RPB)
Operating force:
6 ... 12 N
Operating Travel:
ca. 5 mm
Tightening torque:
Fixing nut max. 0.2 Nm, Screw terminal 0.8 Nm
Terminal details 1:
Max. wire cross-section 2 mm x 2.5 mm²
Max. wire cross-section of stranded cable 2 x 1.5 mm²
Weight:
0.059 kg
Conditions environnementales
IP Protection:
IP40 front side, IP65 with spray cover, according to IEC 60529
Operating temperature:
– 25 °C … + 55 °C, mounted as a block, make sure the heat can escape freely
Shock resistance:
15 g for 11 ms, according to IEC 60068-2-27
Vibration resistance:
10 g at 10 Hz…2000 Hz, amplitude 1.0 mm, according to IEC 60068-2-6
Certificats
Approbations:
CB (IEC 60947-5-1), CENELEC CCA-NTR (EN 60947-5-1), CSA, DNV, SEV, UL
Conformities:
CE, UKCA, 2011 / 65 / EC (RoHS), 2014 / 35 / EU (LVD)
REACH:
REACH compliant
RoHS:
RoHS compliant
Autres
Short Description:
Actuator, 21.2 mm x 29.2 mm, Illuminated, Rectangular, Black, Plastic, 2 C, Maintained, Screw terminal
Housing colour:
Black
Housing material:
Plastic
Wiring diagrams:
Wiring diagrams

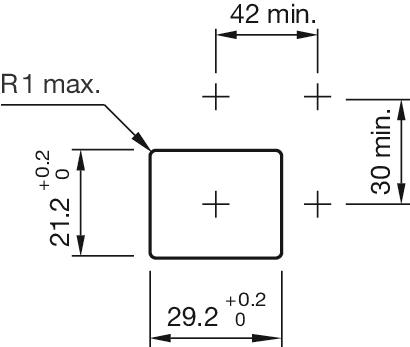

Mounting cut-outs:
Mounting cut-outs
Dimension drawings:
Dimension drawings
Télécharger des fichiers
Composant pour 94.84 USD
Ajouter au panier
10-2K19.1055

10-2K19.1055

Single-LED

14.25 USD0 en stock
Partie commande/affichage
Illumination colour:
Green
Caractéristiques électriques
Operating voltage:
48 V AC/DC +10%
Operation current:
2 - 4 mA ±15 %
Lumi. Intensity:
600 mcd
Caractéristiques mécaniques
Weight:
0.002 kg
Certificats
REACH:
REACH compliant
RoHS:
RoHS compliant
Autres
Short Description:
Single-LED, T6.9, Green, 48 V AC/DC +10%
Kind of iIllumination:
Single-LED
Hints:
Order two LEDs
For LED element fitting information see Application guidelines, LED polarity
Due to high surface temperatures, the series resistor must not be soldered directly to the terminals of the equipment (use a terminal plate)
When using AC/DC types with AC operation, slight flickering can occur
The luminous intensity stated is for when used with DC
Electrical and optical data are measured at 25 °C
The specified versions are built with a protection diode (halve wave rectifier) in series and the LED
Luminosity and wave length variations caused by LED manufacturing processes may cause slight differences regarding the illumination.
Where supply voltages are over 48 V, a voltage-reduction element (external protective series resistor) must be used.
Wiring diagrams:
Wiring diagrams

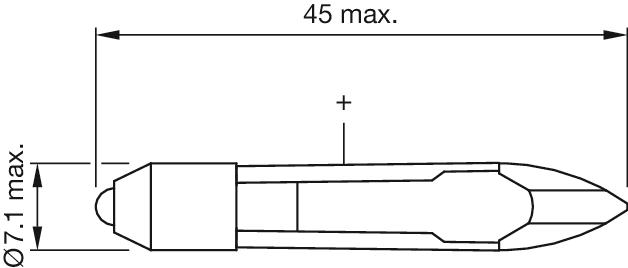

Dimension drawings:
Dimension drawings
Télécharger des fichiers
0 en stock 14.25 USD
Ajouter au panier
02-967.0

02-967.0

Front bezel raised

2.43 USD66 en stock
Gamme de produits
Product Status:
Not Recommended for new design
Front
Front dimension:
36 mm x 24 mm
Front form:
Rectangular
Front bezel colour:
Black
Front bezel material:
Plastic
Front bezel type:
Raised
Montage
Mounting type:
Panel mounting
Caractéristiques mécaniques
Weight:
0.001 kg
Certificats
REACH:
REACH compliant
RoHS:
RoHS compliant
Autres
Short Description:
Front bezel raised, 36 mm x 24 mm, Black, Plastic
Dimension:
36 mm x 24 mm
Télécharger des fichiers
Composant pour 2.43 USD
Ajouter au panier
