Selector Switch
Distribution by
Mouser
https://mouser.eao.com/p/e9db8786

Selector switch 2 positions, Series 14, 2 positions, Flush, 2 NO, Universal terminal, 2 x 0.5 mm

  • 14-520.0360
  • 14-955.1
  • 704.954.0

  • Switching rating
  • Terminal
  • Switching angle
  • Switching action
  • Contact material
  • Switching system
  • Contacts configuration
14-520.0360
14-955.1
704.954.0
Add Accessories & Tools
Add to compare
0 in stock 61.04 USD
Add to Cart
Your product:
14-520.0360
14-955.1
704.954.0

14-520.0360~14-955.1~704.954.0

Selector switch 2 positions, Series 14, 2 positions, Flush, 2 NO, Universal terminal, 2 x 0.5 mm

61.04 USD0 in stock
Product range
HMI function:
Selector switch
Series:
Series 14
Front
Front dimension:
Ø 35 mm
Front form:
Round
Front bezel colour:
Nature
Front bezel material:
Aluminium
Front bezel type:
Flush
Mounting
Design:
Flush
Mounting cut-out:
Ø 30.5 mm
Mounting type:
Panel mounting
Operating-/Indication part
Lever colour:
Black
Lever shape:
short
Electrical characteristics
Switching voltage and switching current:
100 mA at 42 VAC/VDC
Contacts configuration:
2 NO
Switching rating:
42 V @ 0,1 A
Mechanical Characteristics
Terminal:
Universal terminal, 2 x 0.5 mm
Contact material:
Gold
Switching action:
Rest - Maintained
Switching system:
Low-level element
Switching positions:
2 positions
Switching angle:
90° right
Tightening torque:
Fixing nut max. 0.25 Nm
Total weight:
0.043 kg
Ambient Condition
IP front protection:
IP67
Operating temperature:
– 25 °C … + 55 °C, mounted as a block, make sure the heat can escape freely
Other
Material:
Steel plate
Housing colour:
Black
Housing material:
Plastic
Wiring diagrams:
Wiring diagrams
Share and save this product
Download files
0 in stock 61.04 USD
Add to Cart
Your product consists of the following 3 COMPONENTS:
14-520.0360

14-520.0360

Actuator

43.09 USD0 in stock
Front
Front form:
Round
Front bezel colour:
Nature
Front bezel material:
Aluminium
Mounting
Mounting type:
Panel mounting
Operating-/Indication part
Lever colour:
Black
Lever material:
plastic
Lever shape:
short
Electrical characteristics
Switching voltage and switching current:
100 mA at 42 VAC/VDC
Contacts:
2 NO
Switching rating:
42 V @ 0,1 A
Electric strength:
3000 VAC, 50 Hz, 1 min. between all terminals and earth, according to EN/IEC 61058-1
Protection class:
ll
Mechanical Characteristics
Terminal:
Universal terminal, 2 x 0.5 mm
Contact material:
Gold
Switching action:
Rest - Maintained
Switching system:
Low-level element
Switching system:
This low-level switching element was designed for switching low powers in electronic circuits. The mechanism assures reliable switching of loads ranging from a few μA/μV up to 100 mA/ 42 VAC/DC.
Single-break momentary contact, as normally open or normally closed with 4 independent points of contact. 2 momentary contactsper switching element; combination of normally open and normally closed is possible.
Special features are the long life, extremely short rebound time and stable contact resistance.
Switching positions:
2 positions
Switching angle:
90° right
Mechanical lifetime:
1 Mil. cycles of operation (RCC/RPB)
Operating force:
3 N … 4 N, depending on the number of switching elements
Tightening torque:
Fixing nut max. 0.25 Nm
Terminal details 1:
The universal terminals permit these units to be mounted on printed circuit boards (PCB). These terminals can also be used as soldering or plug-in terminals.
For these terminals we can also supply a plug-in base which, when soldered on to the board, enables the switch to be plugged in.
Wire cross section:
Max. wire diameter 2 wires of 1 mm
Max. wire cross-section of stranded cable 2 x 0.75 mm²
Weight:
0.025 kg
Ambient Condition
IP front protection:
IP67, according to DIN EN 60529
Operating temperature:
– 25 °C … + 55 °C, mounted as a block, make sure the heat can escape freely
Storage temperature:
– 40 °C … + 85 °C
Shock resistance:
Max. 150 m / s², pulse width 11 ms, 3-axis, (semi-sinusoidal as per EN IEC 60068-2-27)
Certificate
Conformities:
2011 / 65 / EC (RoHS), 2014 / 35 / EU (LVD)
REACH:
REACH compliant
RoHS:
RoHS compliant
Other
Short Description:
Actuator, non illuminative, Black, short, Round, Nature, Aluminium, anodised, 2 NO, Rest - Maintained, Universal terminal, 2 x 0.5 mm, IP67, according to DIN EN 60529
Hints:
The colour of anodised aluminium parts can vary due to technical production reasons
Switching positions:
Switching positions

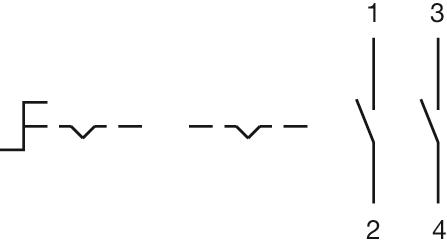

Wiring diagrams:
Wiring diagrams

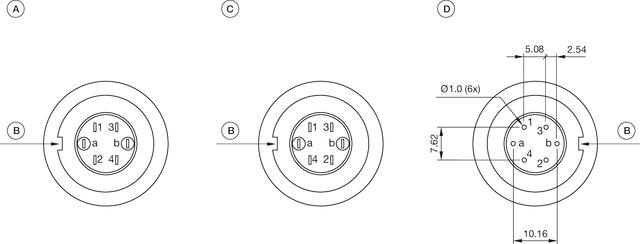

Component layouts:
Component layouts
A = Terminals (rear side)
B = Anti twist device
C = Diode block
D = Drilling plan (component side)

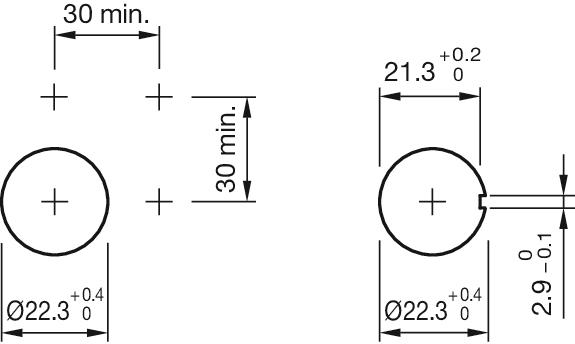

Mounting cut-outs:
Mounting cut-outs
Mounting cut-outs

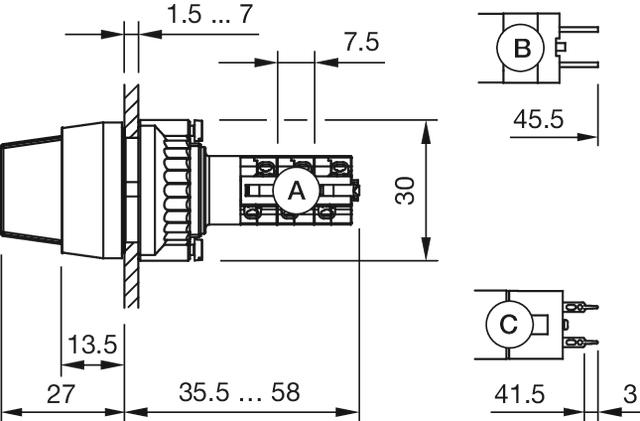

Dimension drawings:
Dimension drawings
A = Solder terminal
B = Plug-in terminal 2.8 x 0.5 mm
C = Universal terminal 2.0 mm x 0.5 mm

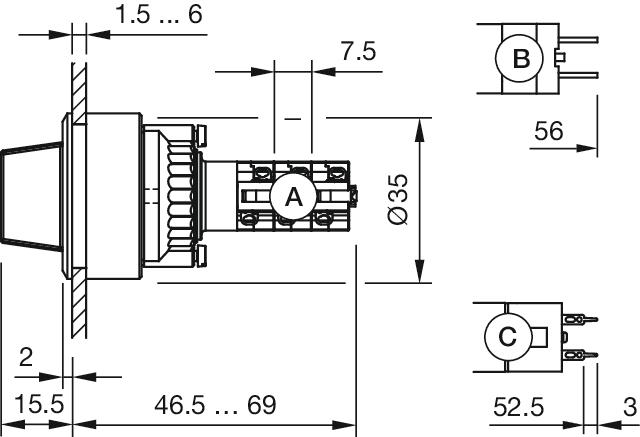

Dimension drawings
A = Solder terminal
B = Plug-in terminal 2.8 x 0.5 mm
C = Universal terminal 2.0 mm x 0.5 mm
Download files
0 in stock 43.09 USD
Add to Cart
14-955.1

14-955.1

Front bezel

15.63 USD0 in stock
Front
Front dimension:
Ø 35 mm
Front form:
Round
Front bezel colour:
Nature
Front bezel material:
Aluminium
Front bezel type:
Flush
Mounting
Mounting cut-out:
Ø 30.5 mm
Mounting type:
Panel mounting
Mechanical Characteristics
Weight:
0.016 kg
Certificate
REACH:
REACH compliant
RoHS:
RoHS compliant
Other
Short Description:
Front bezel, Ø 35 mm, Nature, Aluminium
Dimension:
Ø 35 mm
Housing colour:
Black
Housing material:
Plastic
Hints:
The colour of anodised aluminium parts can vary due to technical production reasons

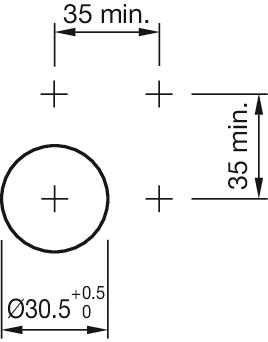

Mounting cut-outs:
Mounting cut-outs
Download files
0 in stock 15.63 USD
Add to Cart
704.954.0

704.954.0

Anti-twist device

2.32 USD240 in stock
Mounting
Design:
Flush
Mounting cut-out:
Ø 30 mm
Mechanical Characteristics
Weight:
0.002 kg
Certificate
REACH:
REACH compliant
RoHS:
RoHS compliant
Other
Short Description:
Anti-twist device, Ø 30 mm, Steel plate
Material:
Steel plate
Download files
Component for 2.32 USD
Add to Cart
