Assembly settings
Front
Front form
Square

Square

choisir ...
  • Square
Front bezel colour
Black

Black

choisir ...
  • Black
Front bezel material
Plastic

Plastic

choisir ...
  • Plastic
Front dimension
19 mm x 19 mm

19 mm x 19 mm

choisir ...
  • 19 mm x 19 mm
Montage
Design
Flush

Flush

choisir ...
  • Flush
Mounting type
Panel mounting

Panel mounting

choisir ...
  • Panel mounting
Mounting cut-out
16 mm x 16 mm

16 mm x 16 mm

choisir ...
  • 16 mm x 16 mm
Partie commande/affichage
Lens shape
Flush

Flush

choisir ...
  • Flush
Lens colour
Red

Red

choisir ...
  • Red
Lens material
Plastic

Plastic

choisir ...
  • Plastic
Lens illumination
Illuminated

Illuminated

choisir ...
  • Illuminated
Caractéristiques électriques
Contacts Configuration
1 NO

1 NO

choisir ...
  • 1 NO
Switching rating
42 V @ 0,1 A

42 V @ 0,1 A

choisir ...
  • 42 V @ 0,1 A
Caractéristiques mécaniques
Terminal
Soldering terminal

Soldering terminal

choisir ...
  • Soldering terminal
Switching system
Snap-action switching element

Snap-action switching element

choisir ...
  • Snap-action switching element
Contact material
Gold

Gold

choisir ...
  • Gold
Switching action
Momentary

Momentary

choisir ...
  • Maintained
  • Momentary
Conditions environnementales
IP front protection
IP40

IP40

choisir ...
  • IP40
Retour
Afficher l'aperçu détaillé des produits
Bouton poussoir
Distribution par
Mouser
https://mouser.eao.com/p/c3968119

Illuminated push button, Series 18, 19 mm x 19 mm, illuminative, Flush, 1 NO, Gold, IP40, Soldering terminal

  • 18-981.2L
  • 18-187.035
  • 18-920.1

18-981.2L
  • Switching action
18-187.035
18-920.1
Ajoute des accessoires & outilage
Ajouter à la comparaison
0 en stock 37.57 USD
Ajouter au panier
Votre produit:
18-981.2L
18-187.035
18-920.1

18-981.2L~18-187.035~18-920.1

Illuminated push button, Series 18, 19 mm x 19 mm, illuminative, Flush, 1 NO, Gold, IP40, Soldering terminal

37.57 USD0 en stock
Gamme de produits
Product Status:
Phase-out
HMI function:
Illuminated push button
Séries:
Series 18
Front
Front dimension:
19 mm x 19 mm
Front form:
Square
Front bezel colour:
Black
Front bezel material:
Plastic
Montage
Design:
Flush
Mounting cut-out:
15.8 mm x 15.8 mm
Mounting type:
Panel mounting
Partie commande/affichage
Lens colour:
Red
Lens material:
Plastic
Lens illumination:
Illuminated
Lens shape:
Flush
Lens optics:
translucent
Caractéristiques électriques
Switching voltage and switching current:
100 mA at 42 VAC/VDC
Contacts Configuration:
1 NO
Switching rating:
42 V @ 0,1 A
Electrical lifetime:
≥500 000 cycles of operation at 30 VDC, 100 mA, according to IEC 61058-1
Caractéristiques mécaniques
Terminal:
Soldering terminal
Contact material:
Gold
Switching action:
Momentary
Switching system:
Snap-action switching element
Tightening torque:
Fixing nut max. 0.2 Nm
Poids total:
0.022 kg
Conditions environnementales
IP front protection:
IP40
Operating temperature:
– 25 °C … + 65 °C
Vibration resistance:
10 g at 10 Hz…2000 Hz, amplitude 0.75 mm (Sinusoidal), according to DIN EN 60512-4-4
Autres
Housing colour:
Black
Housing material:
Plastic
Product attributes:
+/- terminals are not connected
Wiring diagrams:
Wiring diagrams
Wiring diagrams
Enregistrer ou recommander un produit
Télécharger des fichiers
0 en stock 37.57 USD
Ajouter au panier
Votre produit se compose des éléments suivants 3 COMPONENTS:
18-981.2L

18-981.2L

Lens

12.03 USD1 en stock
Gamme de produits
Product Status:
Phase-out
Front
Front form:
Square
Partie commande/affichage
Lens colour:
Red
Lens material:
Plastic
Lens illumination:
Illuminated
Lens shape:
Flush
Lens optics:
translucent
Caractéristiques mécaniques
Weight:
0.001 kg
Certificats
REACH:
REACH compliant
RoHS:
RoHS compliant
Autres
Short Description:
Lens, 13.8 mm x 13.8 mm, Illuminated, Red, Flush, Plastic
Dimension:
13.8 mm x 13.8 mm
Hints:
Luminosity and wave length variations caused by LED manufacturing processes may cause slight differences regarding the illumination. The customer has to decide what resistor shall be used to the LED
Red LED Vf = 2.0 VDC, yellow lens with white LED Vf = 3.0 V, green LED Vf = 3.2 V
Wiring diagrams:
Wiring diagrams
Télécharger des fichiers
Composant pour 12.03 USD
Ajouter au panier
18-187.035

18-187.035

Actuator

19.60 USD0 en stock
Gamme de produits
Product Status:
Phase-out
Front
Front dimension:
19 mm x 19 mm
Front form:
Square
Front bezel colour:
Black
Front bezel material:
Plastic
Montage
Design:
Flush
Mounting type:
Panel mounting
Partie commande/affichage
Lens illumination:
Illuminated
Caractéristiques électriques
Switching voltage and switching current:
100 mA at 42 VAC/VDC
Contacts:
1 NO
Switching rating:
42 V @ 0,1 A
Electrical lifetime:
≥500 000 cycles of operation at 30 VDC, 100 mA, according to IEC 61058-1
Electric strength:
500 VAC, 50 Hz, 1 minute, as per IEC 60512-2-11 between all terminals and earth
Caractéristiques mécaniques
Terminal:
Soldering terminal
Contact material:
Gold
Switching action:
Momentary
Switching system:
Snap-action switching element
Switching system:
The snap-action switching system was designed for switching low powers in electronic circuits. Single-break snap-action contact.
Mechanical lifetime:
2 Mil. cycles of operation
Operating force:
1.4 N
Operating Travel:
ca. 2.2 mm ± 0.2 mm
Tightening torque:
Fixing nut max. 0.2 Nm
Wire cross section:
Max. wire cross-section 2 wires with 0.5 mm
Max. wire cross-section of stranded cable 1 x 0.75 mm²
Wire cross-section of terminal 1,6 x 0,4 mm²
Weight:
0.018 kg
Conditions environnementales
IP front protection:
IP40, according to IEC 60529
Operating temperature:
– 25 °C … + 65 °C
Storage temperature:
– 40 °C … + 80 °C
Shock resistance:
50 g for 11 ms, as per DIN / EN 60068-2-27 (Single impacts, semi-sinusoidal)
Vibration resistance:
10 g at 10 Hz…2000 Hz, amplitude 0.75 mm (Sinusoidal), according to DIN EN 60512-4-4
Certificats
Conformities:
2011 / 65 / EC (RoHS), 2014 / 35 / EU (LVD) for version 230 VAC
REACH:
REACH compliant
RoHS:
RoHS compliant
Autres
Short Description:
Actuator, 19 mm x 19 mm, Illuminated, Square, Black, Plastic, 1 NO, Momentary, Soldering terminal, IP40, according to IEC 60529
Internal size:
13,8 mm x 13,8 mm
Housing colour:
Black
Housing material:
Plastic
Product attributes:
+/- terminals are not connected
Wiring diagrams:
Wiring diagrams

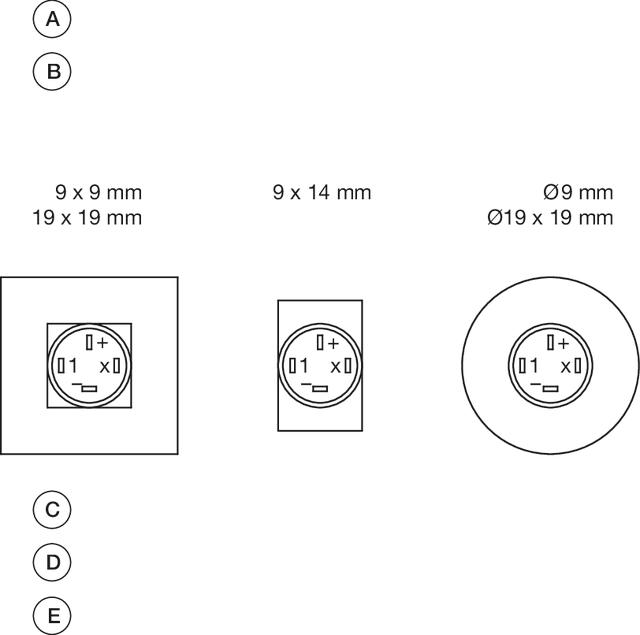

Component layouts:
Component layouts
A = Terminals (rear side)
B = Illuminated pushbutton
C = x = Contact No.
D = 2 = Normally open
E = 4 = Normally close

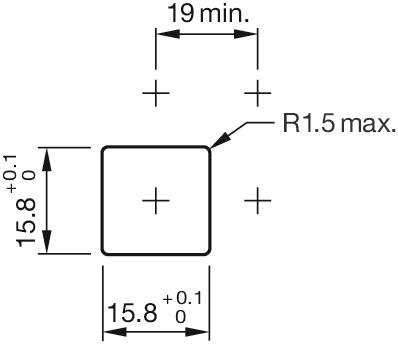

Mounting cut-outs:
Mounting cut-outs

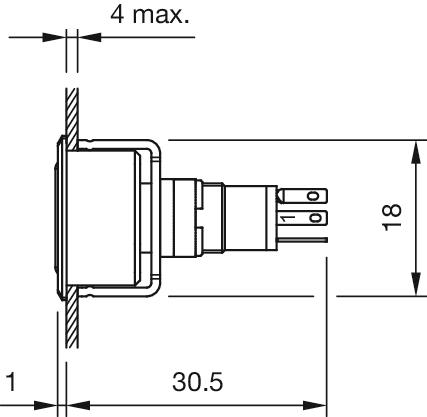

Dimension drawings:
Dimension drawings
Télécharger des fichiers
0 en stock 19.60 USD
Ajouter au panier
18-920.1

18-920.1

Front bezel set

5.94 USD78 en stock
Gamme de produits
Product Status:
Phase-out
Front
Front dimension:
19 mm x 19 mm
Front form:
Square
Front bezel colour:
Black
Front bezel material:
Plastic
Montage
Mounting cut-out:
15.8 mm x 15.8 mm
Mounting type:
Panel mounting
Caractéristiques mécaniques
Weight:
0.003 kg
Certificats
REACH:
REACH compliant
RoHS:
RoHS compliant
Autres
Short Description:
Front bezel set, 19 mm x 19 mm, 13,8 mm x 13,8 mm, Black, Plastic
Dimension:
19 mm x 19 mm
Internal size:
13,8 mm x 13,8 mm
Product attributes:
For square lens
Télécharger des fichiers
Composant pour 5.94 USD
Ajouter au panier
