Assembly settings
Anteriore
Front form
Rectangular
Rectangular
scegliere ...
Front bezel type
Raised
Raised
scegliere ...
Front bezel colour
Black
Black
scegliere ...
Front bezel material
Plastic
Plastic
scegliere ...
Front dimension
36 mm x 24 mm
36 mm x 24 mm
scegliere ...
Montaggio
Design
Flush
Flush
scegliere ...
Mounting type
Panel mounting
Panel mounting
scegliere ...
Mounting cut-out
22 mm x 30 mm
22 mm x 30 mm
scegliere ...
Unità operativa/display
Lens shape
Flush
Flush
scegliere ...
Lens colour
Red
Red
scegliere ...
Lens material
Plastic, according to UL 94 HB
Plastic, according to UL 94 HB
scegliere ...
Lens illumination
Illuminated
Illuminated
scegliere ...
Illumination colour
Red
Red
scegliere ...
Caratteristiche elettriche
Operating voltage kind of
V AC/DC
V AC/DC
scegliere ...
Operating voltage
12 V
12 V
scegliere ...
Caratteristiche meccaniche
Terminal
Screw terminal
Screw terminal
scegliere ...
Condizioni ambientali
IP front protection
IP65
IP65
scegliere ...
Indietro
Distribuzione attraverso
Mouser
Mouser
Indicator, Series 22, 36 mm x 24 mm, Flush, IP65, Screw terminal
- 22-903.2
- 22-040.001
- 10-2J09.1062
- 02-967.0
- Lens colour
- Terminal
- Operating voltage kind of
- Illumination colour
- Operating voltage
- Front bezel type
Aggiungere accessori e strumenti
Il vostro prodotto:
Gamma di prodotti
- Product Status:
- Not Recommended for new design
- HMI function:
- Indicator
- Serie:
- Series 22
Anteriore
- Front dimension:
- 36 mm x 24 mm
- Front form:
- Rectangular
- Front bezel colour:
- Black
- Front bezel material:
- Plastic
- Front bezel type:
- Raised
Montaggio
- Design:
- Flush
- Mounting cut-out:
- 22 mm x 30 mm
- Mounting type:
- Panel mounting
Unità operativa/display
- Lens colour:
- Red
- Lens material:
- Plastic, according to UL 94 HB
- Lens illumination:
- Illuminated
- Lens shape:
- Flush
- Lens optics:
- transparent
- Illumination colour:
- Red
Caratteristiche elettriche
- Operating voltage:
- 12 V AC/DC +10%
- Operation current:
- 7 - 14 mA ±15 %
- Lumi. Intensity:
- 330 mcd
Caratteristiche meccaniche
- Terminal:
- Screw terminal
- Peso totale:
- 0.028 kg
Condizioni ambientali
- IP front protection:
- IP65
- Operating temperature:
- – 25 °C … + 55 °C
Di più
- Wiring diagrams:
Salvare o raccomandare prodotti
Scarica i file
0 in magazzino 44.93 USD
Aggiungi al carrello
Il prodotto è composto da quanto segue 4 COMPONENTS:
Anteriore
- Front form:
- Rectangular
Unità operativa/display
- Lens colour:
- Red
- Lens material:
- Plastic, according to UL 94 HB
- Lens illumination:
- Illuminated
- Lens shape:
- Flush
- Lens optics:
- transparent
Caratteristiche meccaniche
- Weight:
- 0.002 kg
Certificati
- REACH:
- REACH compliant
- RoHS:
- RoHS compliant
Di più
- Short Description:
- Lens, 25.5 mm x 17 mm, Illuminated, Red, Flush, Plastic, according to UL 94 HB
- Dimension:
- 25.5 mm x 17 mm
Scarica i file
Componente per 4.41 USD
Aggiungi al carrello
Anteriore
- Front dimension:
- 36 mm x 24 mm
- Front form:
- Rectangular
Montaggio
- Design:
- Flush
- Mounting cut-out:
- 22 mm x 30 mm
- Mounting type:
- Panel mounting
Caratteristiche meccaniche
- Terminal:
- Screw terminal
- Weight:
- 0.024 kg
Condizioni ambientali
- Operating temperature:
- – 25 °C … + 55 °C
Certificati
- REACH:
- REACH compliant
- RoHS:
- RoHS compliant
Di più
- Short Description:
- Actuator, 22 mm x 30 mm, 36 mm x 24 mm, Rectangular, Screw terminal
- Wiring diagrams:
- Mounting cut-outs:

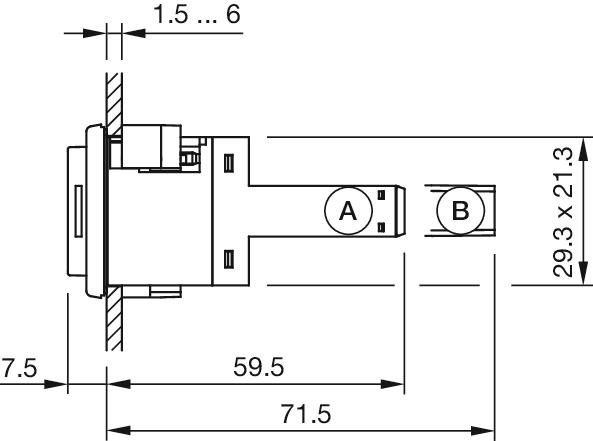

- Dimension drawings:
A = Screw terminal
B = Plug-in terminal 6.3 mm x 0.8 mm
Scarica i file
Componente per 24.27 USD
Aggiungi al carrello
Unità operativa/display
- Illumination colour:
- Red
Caratteristiche elettriche
- Operating voltage:
- 12 V AC/DC +10%
- Operation current:
- 7 - 14 mA ±15 %
- Lumi. Intensity:
- 330 mcd
Caratteristiche meccaniche
- Weight:
- 0.003 kg
Certificati
- REACH:
- REACH compliant
- RoHS:
- RoHS compliant
Di più
- Short Description:
- Single-LED, T1 ¾ MG, Red, 12 V AC/DC +10%
- Kind of iIllumination:
- Single-LED
- Hints:
- Due to high surface temperatures, the series resistor must not be soldered directly to the terminals of the equipment (use a terminal plate)When using AC/DC types with AC operation, slight flickering can occurThe luminous intensity stated is for when used with DCElectrical and optical data are measured at 25 °CThe specified versions are built with a protection diode (halve wave rectifier) in series and the LEDLuminosity and wave length variations caused by LED manufacturing processes may cause slight differences regarding the illumination. The customer has to decide what resistor shall be used to the LEDWhere supply voltages are over 48 V, a voltage-reduction element (external protective series resistor) must be used.Keep to the country specific safety instructions
- Wiring diagrams:
- Dimension drawings:
Scarica i file
0 in magazzino 13.82 USD
Aggiungi al carrello
Gamma di prodotti
- Product Status:
- Not Recommended for new design
Anteriore
- Front dimension:
- 36 mm x 24 mm
- Front form:
- Rectangular
- Front bezel colour:
- Black
- Front bezel material:
- Plastic
- Front bezel type:
- Raised
Montaggio
- Mounting type:
- Panel mounting
Caratteristiche meccaniche
- Weight:
- 0.001 kg
Certificati
- REACH:
- REACH compliant
- RoHS:
- RoHS compliant
Di più
- Short Description:
- Front bezel raised, 36 mm x 24 mm, Black, Plastic
- Dimension:
- 36 mm x 24 mm
Scarica i file
Componente per 2.43 USD
Aggiungi al carrello
