Assembly settings
Front
Front form
Rectangular

Rectangular

choisir ...
  • Rectangular
Front bezel type
Flush

Flush

choisir ...
  • Flush
Front bezel colour
Black

Black

choisir ...
  • Black
Front bezel material
Plastic

Plastic

choisir ...
  • Plastic
Front dimension
36 mm x 24 mm

36 mm x 24 mm

choisir ...
  • 36 mm x 24 mm
Montage
Design
Flush

Flush

choisir ...
  • Flush
Mounting type
Panel mounting

Panel mounting

choisir ...
  • Panel mounting
Mounting cut-out
22 mm x 30 mm

22 mm x 30 mm

choisir ...
  • 22 mm x 30 mm
Partie commande/affichage
Lens shape
Mushroom-head

Mushroom-head

choisir ...
  • Mushroom-head
Lens colour
Green

Green

choisir ...
  • Black
  • Green
  • Red
  • Yellow
Lens material
Plastic, according to UL 94 HB

Plastic, according to UL 94 HB

choisir ...
  • Plastic, according to UL 94 HB
Lens illumination
Non illuminated

Non illuminated

choisir ...
  • Non illuminated
Caractéristiques électriques
Contacts Configuration
2 NO

2 NO

choisir ...
  • 1 NC
  • 1 NC + 1 NO
  • 1 NO
  • 2 NC
  • 2 NO
Switching rating
400 V @ 10 A

400 V @ 10 A

choisir ...
  • 400 V @ 10 A
Caractéristiques mécaniques
Terminal
Screw terminal

Screw terminal

choisir ...
  • Plug-in terminal, 6.3 x 0.8 mm
  • Screw terminal
Switching system
Snap-action switching element

Snap-action switching element

choisir ...
  • Snap-action switching element
Contact material
Silver

Silver

choisir ...
  • Silver
Switching action
Momentary

Momentary

choisir ...
  • Maintained
  • Momentary
Conditions environnementales
IP front protection
IP65

IP65

choisir ...
  • IP65
Retour
Afficher l'aperçu détaillé des produits
Bouton poussoir
Distribution par
Mouser
https://mouser.eao.com/p/96a6ac2e

Mushroom-head push button, Series 22, 36 mm x 24 mm, non illuminative, Flush, 2 NO, Silver, IP65, Screw terminal

  • 22-930.5
  • 22-213.011
  • 02-965.0

  • Lens colour
22-930.5
  • Terminal
  • Switching action
  • Contacts Configuration
22-213.011
02-965.0
Ajoute des accessoires & outilage
Ajouter à la comparaison
0 en stock 77.20 USD
Ajouter au panier
Votre produit:
22-930.5
22-213.011
02-965.0

22-930.5~02-965.0~22-213.011

Mushroom-head push button, Series 22, 36 mm x 24 mm, non illuminative, Flush, 2 NO, Silver, IP65, Screw terminal

77.20 USD0 en stock
Gamme de produits
Product Status:
Not Recommended for new design
HMI function:
Mushroom-head push button
Séries:
Series 22
Front
Front dimension:
36 mm x 24 mm
Front form:
Rectangular
Front bezel colour:
Black
Front bezel material:
Plastic
Front bezel type:
Flush
Montage
Design:
Flush
Mounting cut-out:
22 mm x 30 mm
Mounting type:
Panel mounting
Partie commande/affichage
Lens colour:
Green
Lens material:
Plastic, according to UL 94 HB
Lens illumination:
Non illuminated
Lens shape:
Mushroom-head
Lens optics:
opaque
Caractéristiques électriques
Switching voltage and switching current:

400 VAC, 10 A (ohmic)

400 VAC, 4 A (inductive, cos(phi) = 0.7)

250 VAC, 5 A (inductive, cos(phi) = 0.7)

125 VAC, 8 A (inductive, cos(phi) = 0.7)

110 VDC, 0.4 A (inductive, L:R = 30 ms)

60 VDC, 1.5 A (inductive, L:R = 30 ms)

24 VDC, 6 A (inductive, L:R = 30 ms)
Contacts Configuration:
2 NO
Switching rating:
400 V @ 10 A
Electrical lifetime:
50 000 cycles of operation
Caractéristiques mécaniques
Terminal:
Screw terminal
Contact material:
Silver
Switching action:
Momentary
Switching system:
Snap-action switching element
Poids total:
0.055 kg
Conditions environnementales
IP front protection:
IP65
Operating temperature:
– 25 °C … + 55 °C
Vibration resistance:
10 g at 10 Hz…2000 Hz, amplitude 0.75 mm (Sinusoidal), according to DIN EN 60512-4-4
Autres
Housing colour:
Black
Housing material:
Plastic
Product attributes:
Use only flush front bezel
Wiring diagrams:
Wiring diagrams
Enregistrer ou recommander un produit
Télécharger des fichiers
0 en stock 77.20 USD
Ajouter au panier
Votre produit se compose des éléments suivants 3 COMPONENTS:
22-930.5

22-930.5

Mushroom-head cap

6.93 USD0 en stock
Front
Front form:
Rectangular
Partie commande/affichage
Lens colour:
Green
Lens material:
Plastic, according to UL 94 HB
Lens illumination:
Non illuminated
Lens shape:
Mushroom-head
Lens optics:
opaque
Caractéristiques mécaniques
Weight:
0.005 kg
Certificats
REACH:
REACH compliant
RoHS:
RoHS compliant
Autres
Short Description:
Mushroom-head cap, 35 mm x 23 mm, Non illuminated, Green, Mushroom-head, Plastic, according to UL 94 HB
Dimension:
35 mm x 23 mm
Product attributes:
Use only flush front bezel
Télécharger des fichiers
0 en stock 6.93 USD
Ajouter au panier
22-213.011

22-213.011

Actuator

67.91 USD23 en stock
Front
Front dimension:
36 mm x 24 mm
Front form:
Rectangular
Front bezel colour:
Black
Front bezel material:
Plastic
Montage
Design:
Flush
Mounting cut-out:
22 mm x 30 mm
Mounting type:
Panel mounting
Partie commande/affichage
Lens illumination:
Optional illuminated
Caractéristiques électriques
Switching voltage and switching current:

400 VAC, 10 A (ohmic)

400 VAC, 4 A (inductive, cos(phi) = 0.7)

250 VAC, 5 A (inductive, cos(phi) = 0.7)

125 VAC, 8 A (inductive, cos(phi) = 0.7)

110 VDC, 0.4 A (inductive, L:R = 30 ms)

60 VDC, 1.5 A (inductive, L:R = 30 ms)

24 VDC, 6 A (inductive, L:R = 30 ms)
Contacts:
2 NO
Switching rating:
400 V @ 10 A
Electrical lifetime:
50 000 cycles of operation
Electric strength:
2000 VAC, 50 Hz, 1 minute, as per IEC 60512-2-11 between all terminals and earth
Caractéristiques mécaniques
Terminal:
Screw terminal
Contact material:
Silver
Switching action:
Momentary
Switching system:
Snap-action switching element
Switching system:
Self-cleaning, double-break snap action switching system (contact opening width 2 mm x 1.5 mm).
Max. 2 normally closed or 2 normally open contacts, or one of each
Mechanical lifetime:
1 Mil. cycles of operation (RCC/RPB)
Operating force:
4.4 N ±1 N (1 switching element), 7.8 N ±1 N (2 switching element)
Operating Travel:
5.5 mm ± 0.5 mm
Travel:
> 3 mm
Terminal details 1:
Max. wire cross-section 2 mm x 2.5 mm²
Max. wire cross-section of stranded cable 2 x 1.5 mm²
Weight:
0.049 kg
Conditions environnementales
IP Protection:
IP20 rear side, IP65 front side, according to IEC 60529
Operating temperature:
– 25 °C … + 55 °C
Storage temperature:
– 40 °C … + 95 °C
Shock resistance:
50 g for 11 ms, according to IEC 60512-4-3
Vibration resistance:
10 g at 10 Hz…2000 Hz, amplitude 0.75 mm (Sinusoidal), according to DIN EN 60512-4-4
Certificats
Approbations:
CB (IEC 61058-1), CSA, EAC, ENEC (EN 61058-1), UL
Conformities:
CE, UKCA, 2011 / 65 / EC (RoHS), 2014 / 35 / EU (LVD)
REACH:
REACH compliant
RoHS:
RoHS compliant
Autres
Short Description:
Actuator, 22 mm x 30 mm, 36 mm x 24 mm, Optional illuminated, Rectangular, Black, Plastic, 2 NO, Momentary, Screw terminal
Housing colour:
Black
Housing material:
Plastic
Wiring diagrams:
Wiring diagrams

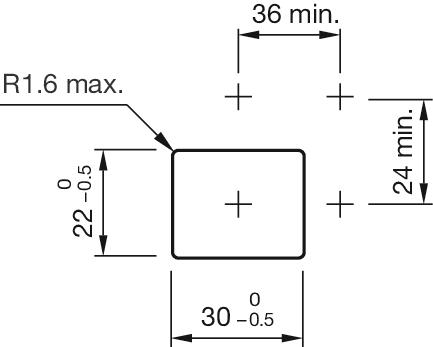

Mounting cut-outs:
Mounting cut-outs

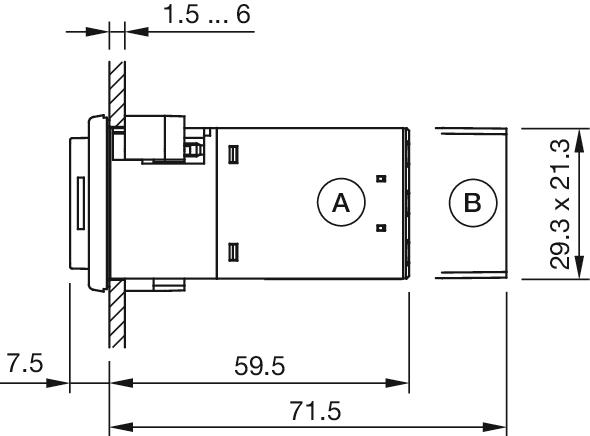

Dimension drawings:
Dimension drawings
A = Screw terminal
B = Plug-in terminal 6.3 mm x 0.8 mm

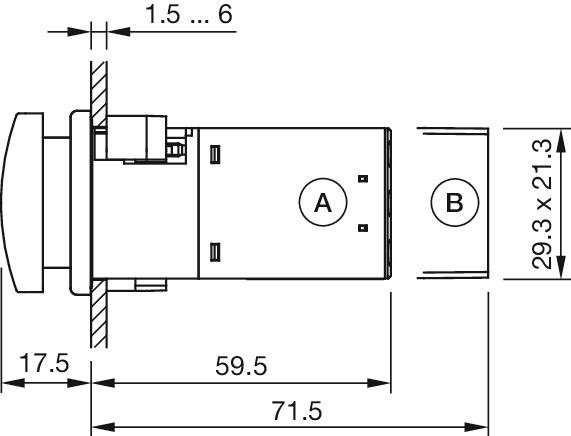

Dimension drawings
A = Screw terminal
B = Plug-in terminal 6.3 mm x 0.8 mm
Télécharger des fichiers
Composant pour 67.91 USD
Ajouter au panier
02-965.0

02-965.0

Front bezel

2.36 USD10 en stock
Gamme de produits
Product Status:
Not Recommended for new design
Front
Front dimension:
36 mm x 24 mm
Front form:
Rectangular
Front bezel colour:
Black
Front bezel material:
Plastic
Front bezel type:
Flush
Montage
Mounting type:
Panel mounting
Caractéristiques mécaniques
Weight:
0.001 kg
Certificats
REACH:
REACH compliant
RoHS:
RoHS compliant
Autres
Short Description:
Front bezel, 36 mm x 24 mm, Black, Plastic
Dimension:
36 mm x 24 mm
Télécharger des fichiers
Composant pour 2.36 USD
Ajouter au panier
