Buzzer, Series 45, Ø 29,5 mm, Raised, Screw terminal
- 45-2H00.1016.000
- 45-2300.1000.000
- Material
Ajoute des accessoires & outilage
Votre produit:
Gamme de produits
- HMI function:
- Buzzer
- Séries:
- Series 45
Front
- Front dimension:
- Ø 29,5 mm
- Front form:
- Round
Montage
- Design:
- Raised
- Mounting cut-out:
- Ø 22.3 mm
- Mounting type:
- Panel mounting
Caractéristiques électriques
- Operating voltage:
- 24 V AC/DC
Caractéristiques mécaniques
- Terminal:
- Screw terminal
- Tightening torque:
- 0.8 ... 1 Nm for screw terminal
- Poids total:
- 0.028 kg
Caractéristiques acoustiques
- Tone frequency:
- Approx. 2.4 kHz continuous tone only
- Sound pressure:
- 95 db (A) ±8 dB at a distance of 0.1m
Conditions environnementales
- IP front protection:
- IP40
- Operating temperature:
- – 25 °C … + 70 °C
- Vibration resistance:
- According to IEC 60068-2-6: 10 … 500 Hz: 5 g
Autres
- Material:
- Plastic
- Housing material:
- Plastic
- Wiring diagrams:
Enregistrer ou recommander un produit
Télécharger des fichiers
0 en stock 88.19 USD
Ajouter au panier
Votre produit se compose des éléments suivants 2 COMPONENTS:
Front
- Front dimension:
- Ø 29,5 mm
- Front form:
- Round
Montage
- Design:
- Raised
- Mounting cut-out:
- Ø 22.3 mm
- Mounting type:
- Panel mounting
Caractéristiques électriques
- Operating voltage:
- 24 V AC/DC
- Rated Operational Voltage Ue:
- At AC: rated value 24 ... 24 VAt DC: rated value 24 ... 24 V
- Insulation voltage:
- Rated value 320 V
- Surge voltage resistance:
- Rated value 4 kV
- Pollution degree:
- 3
Caractéristiques mécaniques
- Terminal:
- Screw terminal
- Tightening torque:
- 0.8 ... 1 Nm for screw terminal
- Terminal details 1:
- – With end sleeves 2 x (0.5 … 0.75 mm²)– Without end sleeves 2 x (0.5 … 1.5 mm²)Solid
- Terminal details 2:
- – Without end sleeves 2 x (0.5 … 0.75 mm²)– With end sleeves 2 x (0.5 … 1.5 mm²)Finely stranded– For AWG cables for auxiliary contacts 2 x (18 … 14)
- Weight:
- 0.001 kg
Caractéristiques acoustiques
- Tone frequency:
- Approx. 2.4 kHz continuous tone only
- Sound pressure:
- 95 db (A) ±8 dB at a distance of 0.1m
Conditions environnementales
- Operating temperature:
- – 25 °C … + 70 °C
- Storage temperature:
- – 40 °C … + 80 °C
- Shock resistance:
- According to IEC 60068-2-27: Sinusoidal half-wave 50 g / 11 ms
- Vibration resistance:
- According to IEC 60068-2-6: 10 … 500 Hz: 5 g
- Climate resistance:
- During operation according to IEC 60721: 3B2, 3K6, 3S2, 3M6
Certificats
- REACH:
- REACH compliant
- RoHS:
- RoHS compliant
Autres
- Short Description:
- Actuator, Ø 22.3 mm, Ø 29,5 mm, Round, Screw terminal
- Housing material:
- Plastic
- Wiring diagrams:

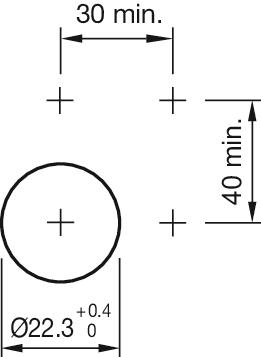

- Mounting cut-outs:

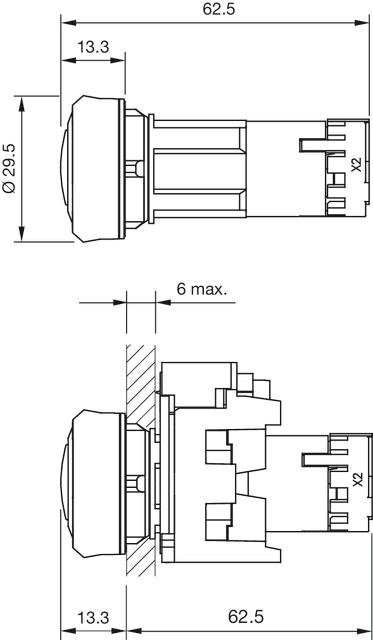

- Dimension drawings:
Télécharger des fichiers
0 en stock 83.56 USD
Ajouter au panier
Montage
- Mounting type:
- Panel mounting
Caractéristiques mécaniques
- Weight:
- 0.027 kg
Certificats
- REACH:
- REACH compliant
- RoHS:
- RoHS compliant
Autres
- Short Description:
- Holder for 3 elements, Plastic
- Material:
- Plastic
- Component layouts:
- Dimension drawings:
Télécharger des fichiers
Composant pour 4.63 USD
Ajouter au panier
