Double push button, Series 45, 58 mm x 35 mm, non illuminative, Raised, 1 NC, Gold, IP66, IP67, IP69K, Screw terminal
- 45-2J31.15V0.000
- 45-2300.1000.000
- 45-312.1X10
- Lens colour
- Lens type
- Terminal
- Contact material
- Switching element type
- Component mounting type
- Configurazione dei contatti
Aggiungere accessori e strumenti
Il vostro prodotto:
Gamma di prodotti
- HMI function:
- Double push button
- Serie:
- Series 45
Anteriore
- Front dimension:
- 58 mm x 35 mm
- Front form:
- Rectangular
- Front bezel colour:
- Black
- Front bezel material:
- Plastic
Montaggio
- Design:
- Raised
- Mounting cut-out:
- Ø 22.3 mm
- Component mounting type:
- Front mounting
- Mounting type:
- Panel mounting
Unità operativa/display
- Lens colour:
- White-Black
- Lens material:
- Plastic
- Lens illumination:
- Non illuminated
- Lens shape:
- Flush
- Lens optics:
- opaque
- Lens type:
- Raised above front bezel
Caratteristiche elettriche
- Switching voltage and switching current:
at AC-12
Voltage
24 V
48 V
110 V
230 V
400 V
500 V
Current
10 A
10 A
10 A
8 A
6 A
10 A
at AC-15
Voltage
24 V
48 V
110 V
230 V
400 V
500 V
Current
6 A
6 A
6 A
4 A
3 A
1,4 A
at DC-12
Voltage
24 V
48 V
110 V
230 V
400 V
500 V
Current
10 A
5 A
2,5 A
1 A
0,3 A
0,2 A
at DC-13
Voltage
24 V
48 V
110 V
230 V
400 V
500 V
Current
3 A
1,5 A
0,7 A
0,3 A
0,1 A
0,07 A
- Configurazione dei contatti:
- 1 NC
- Switching rating:
- 500 V AC @ 10 A
- Thermal current Ith:
- 10 A Max. permissible current for continuous operation and ambient temperatures not exceeding the specified max. values.
Caratteristiche meccaniche
- Terminal:
- Screw terminal
- Contact material:
- Gold
- Switching action:
- Momentary
- Switching system:
- Slow-make switching element
- Tightening torque:
- 0.8 … 0.9 Nm
- Peso totale:
- 0.063 kg
Condizioni ambientali
- IP front protection:
- IP66, IP67, IP69K
- Operating temperature:
- – 25 °C … + 70 °C
- Vibration resistance:
- According to IEC 60068-2-6: 10 … 500 Hz: 5 g
Di più
- Material:
- Plastic
- Housing colour:
- Black
- Housing material:
- Plastic
- Product attributes:
- Front plate mounting
- Switching element type:
- Single
- max. number of switching elements:
- 6
- Wiring diagrams:
Salvare o raccomandare prodotti
Scarica i file
0 in magazzino 62.98 USD
Aggiungi al carrello
Il prodotto è composto da quanto segue 3 COMPONENTS:
Anteriore
- Front dimension:
- 58 mm x 35 mm
- Front form:
- Rectangular
- Front bezel colour:
- Black
- Front bezel material:
- Plastic
Montaggio
- Design:
- Raised
- Mounting cut-out:
- Ø 22.3 mm
- Mounting type:
- Panel mounting
Unità operativa/display
- Lens colour:
- White-Black
- Lens material:
- Plastic
- Lens illumination:
- Non illuminated
- Lens shape:
- Flush
- Lens optics:
- opaque
- Lens type:
- Raised above front bezel
Caratteristiche meccaniche
- Switching action:
- Momentary
- Switching system:
- Slow-make switching element
- Mechanical lifetime:
- 2 Mil. cycles of operation
- Operating frequency:
- Max. 3 600/h
- Weight:
- 0.026 kg
Condizioni ambientali
- IP front protection:
- IP66, IP67, IP69K
- Operating temperature:
- – 25 °C … + 70 °C
- Storage temperature:
- – 40 °C … + 80 °C
- Shock resistance:
- According to IEC 60068-2-27: Sinusoidal half-wave 50 g / 11 ms
- Vibration resistance:
- According to IEC 60068-2-6: 10 … 500 Hz: 5 g
- Climate resistance:
- During operation according to IEC 60721: 3K6, 3C3, 3S2, 3M6, 3B2
Certificati
- REACH:
- REACH compliant
- RoHS:
- RoHS compliant
Di più
- Short Description:
- Actuator, Ø 22.3 mm, 58 mm x 35 mm, Flush, Non illuminated, White-Black, Plastic, opaque, Rectangular, Black, Plastic, Momentary, IP66, IP67, IP69K
- Housing colour:
- Black
- Housing material:
- Plastic
- Wiring diagrams:

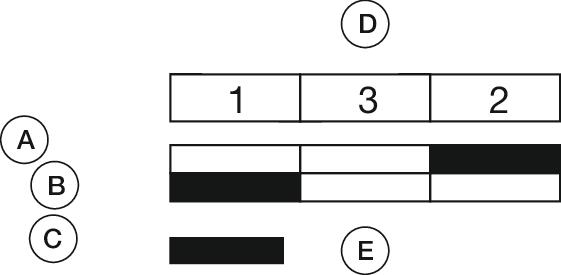

- Component layouts:
A = Switching action
B = green (white) button pressed
C = red (black) button pressed
D = Arrangement switching element correspondens to designation of front adaptor

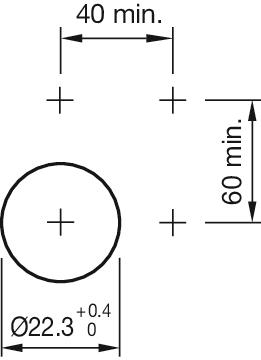

E = Switching element actuated- Mounting cut-outs:

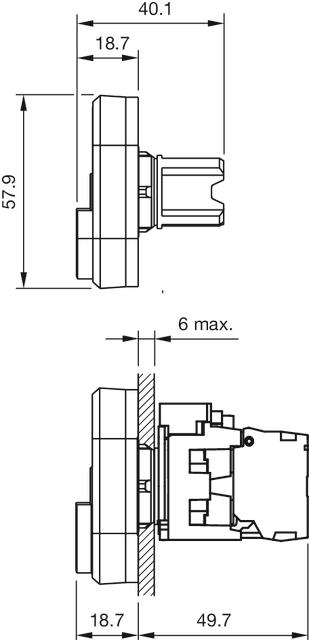

- Dimension drawings:
Scarica i file
0 in magazzino 37.68 USD
Aggiungi al carrello
Montaggio
- Mounting type:
- Panel mounting
Caratteristiche meccaniche
- Weight:
- 0.027 kg
Certificati
- REACH:
- REACH compliant
- RoHS:
- RoHS compliant
Di più
- Short Description:
- Holder for 3 elements, Plastic
- Material:
- Plastic
- Component layouts:
- Dimension drawings:
Scarica i file
Componente per 4.63 USD
Aggiungi al carrello
Montaggio
- Component mounting type:
- Front mounting
Caratteristiche elettriche
- Switching voltage and switching current:
at AC-12
Voltage
24 V
48 V
110 V
230 V
400 V
500 V
Current
10 A
10 A
10 A
8 A
6 A
10 A
at AC-15
Voltage
24 V
48 V
110 V
230 V
400 V
500 V
Current
6 A
6 A
6 A
4 A
3 A
1,4 A
at DC-12
Voltage
24 V
48 V
110 V
230 V
400 V
500 V
Current
10 A
5 A
2,5 A
1 A
0,3 A
0,2 A
at DC-13
Voltage
24 V
48 V
110 V
230 V
400 V
500 V
Current
3 A
1,5 A
0,7 A
0,3 A
0,1 A
0,07 A
- Contacts:
- 1 NC
- Contact reliability:
- One contact failure per 10 million switching operations (5 V, 1 mA)One contact failure per 100 million switching operations (17 V, 5 mA)
- Insulation voltage:
- Rated value 500 V
- Surge voltage resistance:
- Rated value 6 kV
- Switching rating:
- 500 V AC @ 10 A
- Pollution degree:
- 3
- Standards:
- The switches comply with the “Standards for low-voltage switching devices” EN IEC 60947-5-1
- Thermal current Ith:
- 10 A Max. permissible current for continuous operation and ambient temperatures not exceeding the specified max. values.
Caratteristiche meccaniche
- Terminal:
- Screw terminal
- Contact material:
- Gold
- Switching system:
- Slow-make switching element
- Switching system:
- The double-break, slow-make switching element is equipped with normally open or normally closed contact. The normally closed contact has forced opening.Up to six switching elements can be snapped to each holder.The NC contact opens automatically upon disconnection of the actuator. On delivery, the contact is open (= safe state).Activation (= NC contacts on the non-actuated commanding device are closed) takes place upon first-time actuation after the contact block is snapped onto the actuator.
- Mechanical lifetime:
- 10 Mil. cycles of operation
- Tightening torque:
- 0.8 … 0.9 Nm
- Operating frequency:
- Max. 3 600/h
- Terminal details 1:
- Solid 2 x (1.0 … 1.5mm²)– With end sleeves 2 x (0.5 … 0.75 mm²)
- Terminal details 2:
- Finely stranded– Without end sleeves 2 x (0.5 … 0.75 mm²)– Without end sleeves 2 x (0.5 … 1.5 mm²)– For AWG cables for auxiliary contacts 2 x (18 … 14)
- Wire cross section:
- Solid 2 x (1.0 … 1.5mm²)– With end sleeves 2 x (0.5 … 0.75 mm²)Finely stranded– Without end sleeves 2 x (0.5 … 0.75 mm²)– With end sleeves 2 x (0.5 … 1.5 mm²)– For AWG cables for auxiliary contacts 2 x (18 … 14)
- Weight:
- 0.01 kg
Condizioni ambientali
- IP Protection:
- IP20 Terminal, IP40 Housing
- Operating temperature:
- – 25 °C … + 70 °C
- Storage temperature:
- – 40 °C … + 80 °C
- Shock resistance:
- According to IEC 60068-2-27: Sinusoidal half-wave 50 g / 11 ms
- Vibration resistance:
- According to IEC 60068-2-6: 2 … 500 Hz: 5 g
- Climate resistance:
- During operation according to IEC 60721: 3K6, 3C3, 3S2, 3M6
Certificati
- Approbations:
- CCC, CSA, UL
- Conformities:
- CE, UKCA
- REACH:
- REACH compliant
- RoHS:
- RoHS compliant
Di più
- Short Description:
- Switching element, Slow-make switching element, 500 V AC @ 10 A, Gold, 1 NC, Screw terminal, Front mounting
- Product attributes:
- Front plate mounting
- Switching element type:
- Single
- Wiring diagrams:
- Dimension drawings:
A = Screw terminal
for Part No. 45-312.1Z10, 45-312.1X10
Scarica i file
Componente per 20.67 USD
Aggiungi al carrello
