Stop switch, Series 51, Ø 24,5 mm, Raised, 2 NC, IP65, Universal terminal, 2 x 0.5 mm

  • 51-252.026

  • Lens colour
  • Terminal
  • Switching system
  • Switching rating
  • Contacts configuration
51-252.026
Add Accessories & Tools
Add to compare
Product for 37.61 USD
Add to Cart
Your product:
51-252.026

51-252.026

Stop switch, Series 51, Ø 24,5 mm, Raised, 2 NC, IP65, Universal terminal, 2 x 0.5 mm

37.61 USD19 in stock
Product range
HMI function:
Stop switch
Series:
Series 51
Front
Front dimension:
Ø 24,5 mm
Front form:
Round
Mounting
Design:
Raised
Mounting cut-out:
Ø 16 mm
Mounting type:
Panel mounting
Operating-/Indication part
Lens colour:
Red
Lens material:
Plastic
Lens illumination:
Non illuminated
Lens shape:
Mushroom-head
Lens optics:
opaque
Electrical characteristics
Switching voltage and switching current:
100 mA at 42 VAC/VDC
Contacts configuration:
2 NC
Switching rating:
42 V AC @ 0,1 A
Mechanical Characteristics
Terminal:
Universal terminal, 2 x 0.5 mm
Contact material:
Gold
Switching action:
Maintained
Switching system:
Low-level element
Release type:
Twist to unlock
Tightening torque:
Fixing nut max. 0.5 Nm
Total weight:
0.011 kg
Ambient Condition
IP front protection:
IP65
Operating temperature:
– 25 °C … + 55 °C
Other
Housing colour:
Black
Wiring diagrams:
Wiring diagrams
Share and save this product
Download files
Product for 37.61 USD
Add to Cart
Your product consists of the following 1 COMPONENTS:
51-252.026

51-252.026

Actuator

37.61 USD19 in stock
Front
Front dimension:
Ø 24,5 mm
Front form:
Round
Mounting
Design:
Raised
Mounting type:
Panel mounting
Operating-/Indication part
Lens colour:
Red
Lens material:
Plastic
Lens illumination:
Non illuminated
Lens shape:
Mushroom-head
Lens optics:
opaque
Electrical characteristics
Switching voltage and switching current:
100 mA at 42 VAC/VDC
Contacts:
2 NC
Switching rating:
42 V AC @ 0,1 A
Mechanical Characteristics
Terminal:
Universal terminal, 2 x 0.5 mm
Contact material:
Gold
Switching action:
Maintained
Switching system:
Low-level element
Switching system:
This low-level switching element was designed for switching low powers in electronic circuits. The mechanism assures reliable switching of loads ranging from a few μA/μV up to 100 mA/ 42 VAC/DC.
Single-break momentary contact, as normally open or normally closed with 4 independent points of contact. 2 momentary contactsper switching element; combination of normally open and normally closed is possible.
Special features are the long life, extremely short rebound time and stable contact resistance.
Release type:
Twist to unlock
Mechanical lifetime:
1 Mil. cycles of operation (RCC/RPB)
Operating force:
18 … 21 N (depending on the switching element)
Operating Travel:
3 mm
Tightening torque:
Fixing nut max. 0.5 Nm
Terminal details 1:
The universal terminals permit these units to be mounted on printed circuit boards (PCB). These terminals can also be used as soldering or plug-in terminals.
For these terminals we can also supply a plug-in base which, when soldered on to the board, enables the switch to be plugged in.
Weight:
0.015 kg
Ambient Condition
IP front protection:
IP65, according to DIN EN 60529
Operating temperature:
– 25 °C … + 55 °C
Storage temperature:
– 40 °C … + 85 °C
Certificate
REACH:
REACH compliant
RoHS:
RoHS compliant
Other
Short Description:
Actuator, Ø 24,5 mm, Mushroom-head, Non illuminated, Red, Plastic, opaque, Round, 2 NC, Maintained, Universal terminal, 2 x 0.5 mm, IP65, according to DIN EN 60529, Twist to unlock
Housing colour:
Black
Hints:
Marking arrows

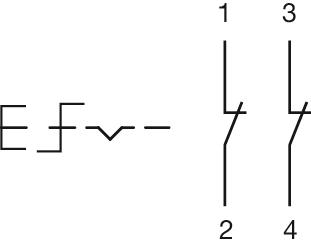

Wiring diagrams:
Wiring diagrams

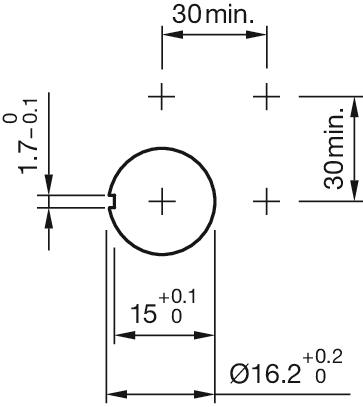

Mounting cut-outs:
Mounting cut-outs

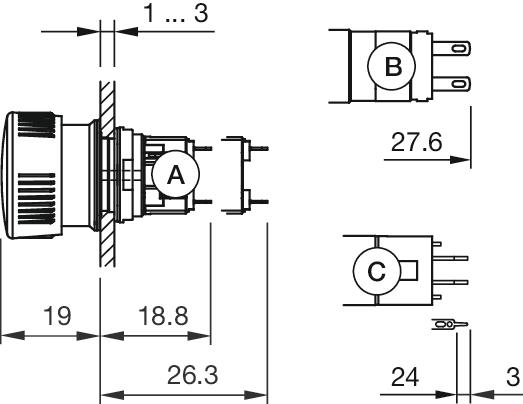

Dimension drawings:
Dimension drawings
A = Solder terminal
B = Plug-in terminal 2.8 mm x 0.5 mm
C = Universal terminal 2.0 mm x 0.5 mm
