Emergency stop switch & Stop switch
Distribution by
Mouser
https://mouser.eao.com/p/5942175f

Emergency stop switch compact, Series 61, Ø 27 mm, 2 NC, IP67, IP69K, Plug-in terminal, 2.8 x 0.5 mm

  • 61-6441.4057

61-6441.4057
61-6441.4057
  • Lens illumination
  • Front dimension
  • Contacts configuration
Add Accessories & Tools
Rotating 360° view
Scale representation
Mounting position
Night view
Augmented Reality
Add to compare
Product for 55.41 USD
Add to Cart
Your product:
61-6441.4057

61-6441.4057

Emergency stop switch compact, Series 61, Ø 27 mm, 2 NC, IP67, IP69K, Plug-in terminal, 2.8 x 0.5 mm

55.41 USD22 in stock
Product range
HMI function:
Emergency stop switch
Series:
Series 61
Front
Front dimension:
Ø 27 mm
Front form:
Round
Mounting
Mounting cut-out:
Ø 16 mm
Mounting type:
Panel mounting
Operating-/Indication part
Lens colour:
Red
Lens material:
Plastic
Lens illumination:
Non illuminated
Lens shape:
Mushroom-head
Electrical characteristics
Switching voltage and switching current:

Alternating current usage category AC-15

according to EN IEC 60947-5-1

Voltage

50 VAC

Current

0,2 A

DC usage category DC-13

according to EN IEC 60947-5-1

Voltage

50 VDC

Current

0,2 A
Contacts configuration:
2 NC
Switching rating:
50 V AC/DC @ 0,2 A
Electrical lifetime:
≥20 000 cycles of operation
Thermal current Ith:
0.5 A (EN IEC 60947-5-1 / max. current in continuous operation at max. + 55 degrees C)
Mechanical Characteristics
Terminal:
Plug-in terminal, 2.8 x 0.5 mm
Switching action:
Maintained
Release type:
Twist to unlock
Tightening torque:
Max. 0.8 Nm
Total weight:
0.018 kg
Ambient Condition
IP front protection:
IP67, IP69K
Operating temperature:
– 25 °C … + 55 °C
Vibration resistance:
Max. 100 m / s² from 10 Hz ... 500 Hz, 20 cycles, 3-axis (sinusoidal EN IEC 60068-2-6)
Certificate
Approbations:
UL, CE, EN 60947-5-5, ISO 13850
Other
Assembly instruction video:
https://vimeo.com/eaohmi/assembly-instruction-e-stop-s61-compact
Wiring diagrams:
Wiring diagrams
Share and save this product
Download files
Product for 55.41 USD
Add to Cart
Your product consists of the following 1 COMPONENTS:
61-6441.4057

61-6441.4057

Actuator

55.41 USD22 in stock
Front
Front dimension:
Ø 27 mm
Front form:
Round
Mounting
Mounting type:
Panel mounting
Operating-/Indication part
Lens colour:
Red
Lens material:
Plastic
Lens illumination:
Non illuminated
Lens shape:
Mushroom-head
Electrical characteristics
Switching voltage and switching current:

Alternating current usage category AC-15

according to EN IEC 60947-5-1

Voltage

50 VAC

Current

0,2 A

DC usage category DC-13

according to EN IEC 60947-5-1

Voltage

50 VDC

Current

0,2 A
Contacts:
2 NC
Contact resistance:
At 20 mV, 100 mA (IEC 60512-2-1) Insulation resistance
2 MΩ between the open contacts
7 MΩ towards the panel (DIN IEC 60512-3-1)
Rated Operational Voltage Ue:
50 VAC / DC, according to EN / IEC 60947-5-1
Rated impulse withstand voltage Uimp:
0.5 kV, according to EN / IEC 60947-1
Rated insulation voltage Ui:
250 VAC/DC according to EN IEC 60947-1
Rated short-circuit current caused:
1 000 A, type of short-circuit device 2 A gG (EN 60947-5-1)
Recommended minimum operational data:

Voltage

1 VAC/DC

Current

1 mA
Switching rating:
50 V AC/DC @ 0,2 A
Electrical lifetime:
≥20 000 cycles of operation
Electric strength:
500 VAC, 50 Hz, 1 minute according to DIN IEC 60512-2
Overvoltage category:
II, according to EN / IEC 61058-1
Pollution degree:
3, according to EN IEC 60947-1
Standards:
According to EN 60947-5-1, EN 60947-5-5, DIN EN ISO 13850, EN IEC 60204
Thermal current Ith:
0.5 A (EN IEC 60947-5-1 / max. current in continuous operation at max. + 55 degrees C)
Mechanical Characteristics
Terminal:
Plug-in terminal, 2.8 x 0.5 mm
Switching action:
Maintained
Release type:
Twist to unlock
Mechanical lifetime:
≥20 000 cycles of operation
Operating force:
30 N ±4 N
Operating Travel:
4.2 mm
Tightening torque:
Max. 0.8 Nm
Weight:
0.018 kg
Ambient Condition
IP Protection:
IP67 front side, according to EN IEC 60529/A1:2010-04, IP69K front side, according to EN IEC 60529/A1:2010-04, Panel surface roughness Ra1.6
IK Protection:
IK06
Operating temperature:
– 25 °C … + 55 °C
Storage temperature:
– 40 °C … + 85 °C
Shock resistance:
Max. 150 m / s², pulse width 11 ms, 3-axis, (semi-sinusoidal as per EN IEC 60068-2-27)
Vibration resistance:
Max. 100 m / s² from 10 Hz ... 500 Hz, 20 cycles, 3-axis (sinusoidal EN IEC 60068-2-6)
Climate resistance:
Damp heat, steady: 56 days, + 40 °C/93 % relative humidity, according to EN IEC 60068-2-78
Dry heat: 96 hours, + 65 °C, as per EN IEC 60068-2-2
Low temperature: 96 hours, – 25 °C (as per EN IEC 60068-2-1) ) UV test, 56 days (EN 60068-2-5:1999)
Certificate
Approbations:
CB (EN 60947), UL NISD (cULus, UL EU) LISTED E-File-Nr.: E341760
Conformities:
CE, UKCA
REACH:
REACH compliant
RoHS:
RoHS compliant
Other
Short Description:
Actuator, Ø 27 mm, Mushroom-head, Non illuminated, Red, Plastic, Round, 2 NC, Maintained, Plug-in terminal, 2.8 x 0.5 mm, Twist to unlock
Dimension:
Ø 27 mm
Hints:
Application as per DIN EN ISO 13850 and EN 60204-1
Seal Part No. 61-9900
Anti-twist ring No. 51-910
Fixing nut No. 51-991
Plug-in terminals 2.8 mm x 0.5 mm are solderable without UL certificate
Front plate thickness 1 … 4 mm with an anti-rotaition ring
Front plate thickness 1 … 6 mm without an anti-rotaition ring

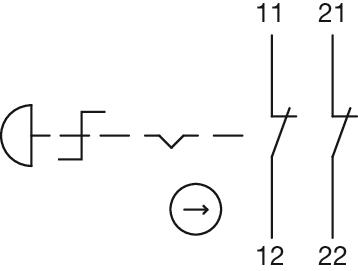

Wiring diagrams:
Wiring diagrams

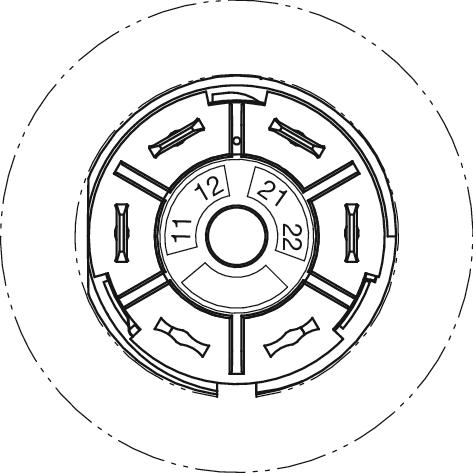

Component layouts:
Component layouts

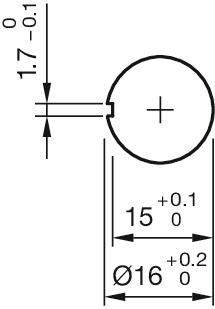

Mounting cut-outs:
Mounting cut-outs

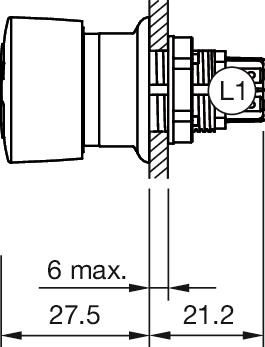

Dimension drawings:
Dimension drawings
