Mushroom-head push button, Series 61, Ø 25 mm, non illuminative, Flush, 1 NC + 1 NO, Gold, IP65, Plug-in terminal, 2.8 x 0.5 mm

  • 61-9593.2
  • 61-1100.0
  • 61-9933.0
  • 61-8470.22

  • Lens colour
61-9593.2
  • Switching action
61-1100.0
  • Front dimension
  • Front bezel colour
  • Front bezel material
61-9933.0
  • Terminal
  • Contact material
  • Switching system
  • Switching rating
  • Contacts Configuration
61-8470.22
Ajoute des accessoires & outilage
Ajouter à la comparaison
Produits pour 57.36 USD
Ajouter au panier
Votre produit:
61-9593.2
61-1100.0
61-9933.0
61-8470.22

61-9593.2~61-1100.0~61-8470.22~61-9933.0

Mushroom-head push button, Series 61, Ø 25 mm, non illuminative, Flush, 1 NC + 1 NO, Gold, IP65, Plug-in terminal, 2.8 x 0.5 mm

57.36 USD8 en stock
Gamme de produits
HMI function:
Mushroom-head push button
Séries:
Series 61
Front
Front dimension:
Ø 25 mm
Front form:
Round
Front bezel colour:
Nature
Front bezel material:
Aluminium
Montage
Design:
Flush
Mounting cut-out:
Ø 22.5 mm
Mounting type:
Panel mounting
Partie commande/affichage
Lens colour:
Red
Lens material:
Plastic
Lens illumination:
Non illuminated
Lens shape:
Mushroom-head
Lens optics:
opaque
Caractéristiques électriques
Switching voltage and switching current:

Switch rating AC with silver contact or silver contact with gold

plating

Service category AC-15

according to EN IEC 60947-5-1

Voltage

125 VAC

250 VAC

Current

2.5 A

2 A

Switch rating DC with silver contact or silver contact with gold

plating

Service category DC-13

according to EN IEC 60947-5-1

Voltage

250 VDC

Current

0.15 A
Contacts Configuration:
1 NC + 1 NO
Switching rating:
250 V AC/DC @ 5 A
Electrical lifetime:
≥50 000 cycles of operation at 250VAC, 2A, cosφ 0.95,
Thermal current Ith:
5 A
Caractéristiques mécaniques
Terminal:
Plug-in terminal, 2.8 x 0.5 mm
Contact material:
Gold
Switching action:
Momentary
Switching system:
Snap-action switching element
Switching positions:
2 positions
Tightening torque:
Max. 0.5 Nm
Poids total:
0.018 kg
Conditions environnementales
IP front protection:
IP65
Operating temperature:
– 25 °C … + 55 °C
Vibration resistance:
Max. 100 m / s² from 10 Hz ... 500 Hz, (sinusoidal EN IEC 60068-2-6)
Autres
Material:
Plastic, according to UL 94 V0
Housing colour:
Black
Housing material:
Plastic, according to UL 94 V0, self-extinguishing
Product attributes:
For indicator, push button, illuminated push button
max. number of switching elements:
1
Wiring diagrams:
Wiring diagrams
Wiring diagrams
Enregistrer ou recommander un produit
Télécharger des fichiers
Produits pour 57.36 USD
Ajouter au panier
Votre produit se compose des éléments suivants 4 COMPONENTS:
61-9593.2

61-9593.2

Lens

7.28 USD8 en stock
Front
Front form:
Round
Partie commande/affichage
Lens colour:
Red
Lens material:
Plastic
Lens illumination:
Non illuminated
Lens shape:
Mushroom-head
Lens optics:
opaque
Caractéristiques mécaniques
Weight:
0.003 kg
Certificats
REACH:
REACH compliant
RoHS:
RoHS compliant
Autres
Short Description:
Lens, Ø 32 mm, Non illuminated, Red, Mushroom-head, Plastic
Dimension:
Ø 32 mm
Télécharger des fichiers
Composant pour 7.28 USD
Ajouter au panier
61-1100.0

61-1100.0

Actuator

12.91 USD282 en stock
Montage
Mounting type:
Panel mounting
Partie commande/affichage
Lens illumination:
Illuminated
Caractéristiques mécaniques
Switching action:
Momentary
Mechanical lifetime:
According to DIN/IEC 60512-5-6 and EN/IEC 60947-5-1, 2 Mil. cycles of operation
Operating force:
3 N … 5 N snap-action switching element, 3.5 … 11 N slow-make switching element
Operating Travel:
3 mm
Tightening torque:
Max. 0.5 Nm
Weight:
0.004 kg
Conditions environnementales
IP Protection:
IP40 rear side, according to EN IEC 60529, IP67 front side, according to EN IEC 60529
Operating temperature:
– 25 °C … + 55 °C
Storage temperature:
– 40 °C … + 85 °C
Certificats
REACH:
REACH compliant
RoHS:
RoHS compliant
Autres
Short Description:
Actuator, Illuminated, Momentary
Housing colour:
Black
Housing material:
Plastic, according to UL 94 V0, self-extinguishing
Wiring diagrams:
Wiring diagrams

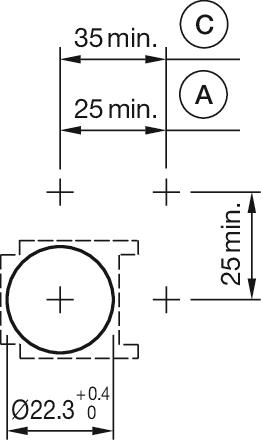

Mounting cut-outs:
Mounting cut-outs
A = Solder/Plug-in terminal 2.8 mm x 0.5 mm
B = Solder terminal
C = Screw terminal
Mounting cut-outs
A = Solder/Plug-in terminal 2.8 mm x 0.5 mm
C = Screw terminal
Mounting cut-outs
A = Solder/Plug-in terminal 2.8 mm x 0.5 mm
C = Screw terminal
Mounting cut-outs
A = Solder/Plug-in terminal 2.8 mm x 0.5 mm
C = Screw terminal

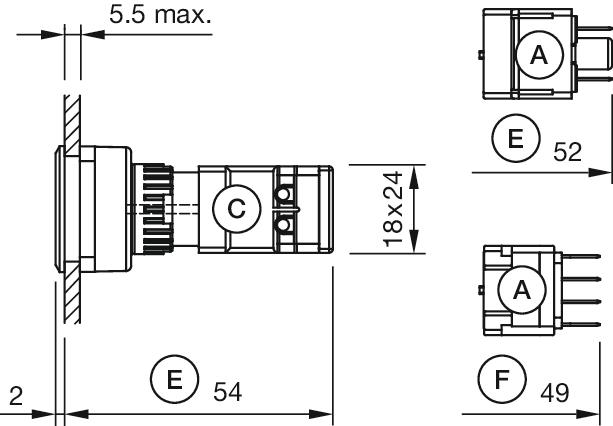

Dimension drawings:
Dimension drawings
A = Plug-in terminal 2.8 mm x 0.5 mm
C = Screw terminal
E = Slow-make switching element
F = Snap-action switching element

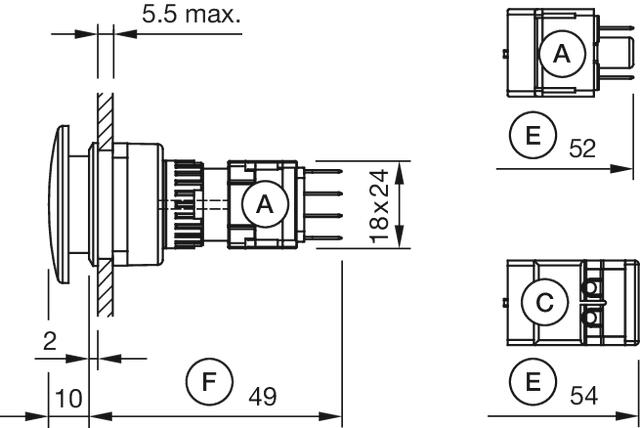

Dimension drawings
A = Plug-in terminal 2.8 mm x 0.5 mm
C = Screw terminal
E = Slow-make switching element
F = Snap-action switching element
Dimension drawings
A = Plug-in terminal 2.8 mm x 0.5 mm
C = Screw terminal
E = Slow-make switching element
F = Snap-action switching element
Télécharger des fichiers
Composant pour 12.91 USD
Ajouter au panier
61-9933.0

61-9933.0

Front bezel set

12.65 USD219 en stock
Front
Front dimension:
Ø 25 mm
Front form:
Round
Front bezel colour:
Nature
Front bezel material:
Aluminium
Montage
Mounting cut-out:
Ø 22.5 mm
Mounting type:
Panel mounting
Caractéristiques mécaniques
Weight:
0.005 kg
Certificats
REACH:
REACH compliant
RoHS:
RoHS compliant
Autres
Short Description:
Front bezel set, Ø 25 mm, Ø 19,7 mm, Nature, Aluminium
Dimension:
Ø 25 mm
Internal size:
Ø 19,7 mm
Product attributes:
For indicator, push button, illuminated push button
Hints:
The colour of anodised aluminium parts can vary due to technical production reasons
Mounting cut-outs:
Mounting cut-outs
Télécharger des fichiers
Composant pour 12.65 USD
Ajouter au panier
61-8470.22

61-8470.22

Switching element

24.52 USD442 en stock
Caractéristiques électriques
Switching voltage and switching current:

Switch rating AC with silver contact or silver contact with gold

plating

Service category AC-15

according to EN IEC 60947-5-1

Voltage

125 VAC

250 VAC

Current

2.5 A

2 A

Switch rating DC with silver contact or silver contact with gold

plating

Service category DC-13

according to EN IEC 60947-5-1

Voltage

250 VDC

Current

0.15 A
Contacts:
1 NC / 1 NO
Rated Operational Voltage Ue:
250 VAC/DC according to EN IEC 60947-1
Rated impulse withstand voltage Uimp:
4 kV, according to EN/IEC 60947-5-1
Rated insulation voltage Ui:
320 VAC, according to EN / IEC 60947-5-1
Recommended minimum operational data:

Voltage

5 VAC/DC

Current

10 mA
Switching rating:
250 V AC/DC @ 5 A
Electrical lifetime:
≥50 000 cycles of operation at 250VAC, 2A, cosφ 0.95,
Electric strength:
2500 VAC, 50 Hz, 1 minute, as per DIN / IEC 60512-2 between all terminals and earth
Overvoltage category:
III, according to EN / IEC 60947-5-1
Pollution degree:
2, according to EN IEC 60947-1
Protection class:
II, according to EN / IEC 61058-1
Standards:
The switches comply with the “Standards for low-voltage switching devices” EN IEC 61058-1, EN IEC 60947-5-1
Thermal current Ith:
5 A
Caractéristiques mécaniques
Terminal:
Plug-in terminal, 2.8 x 0.5 mm
Contact material:
Gold
Switching system:
Snap-action switching element
Switching system:
Self-cleaning, double-break snap-action switching system with contact opening width 2mm x 0.5mm (switch with small contact opening width as per EN IEC 61058-1).
The switching elements are optionally equipped with the following switching functions: One to three normally open (NO) or normally closed (NC), or any combination of NO and NC plus connections for T1 3/4 LED or lamp.
The number of switching elements cannot exceed three. The switching elements provided for the 3-position switch actua tors are equipped with max. 2 NC or 2 NO or any combination. The number of switching elements cannot exceed two.
Switching positions:
2 positions
Wire cross section:
1 wire flexible: 0.5 … 0.75 mm²
1 wire super flexible: 0.5 mm²
1 wire rigid: 0.5 … 1.5 mm²
2 wires rigid: 0.75 mm²
2 wires flexible: 0.5 mm²
Weight:
0.006 kg
Conditions environnementales
Operating temperature:
– 25 °C … + 55 °C
Storage temperature:
– 40 °C … + 85 °C
Shock resistance:
Max. 100 m / s², pulse width, 3-axis (sinusoidal EN IEC 60068-2-27)
Vibration resistance:
Max. 100 m / s² from 10 Hz ... 500 Hz, (sinusoidal EN IEC 60068-2-6)
Climate resistance:
Damp heat, cyclic: 96 hours, + 25 °C/97 %, + 55 °C/93 % relative humidity, as per EN IEC 60068-2-30
Damp heat, steady: 56 days, + 40 °C/93 % relative humidity, according to EN IEC 60068-2-78
Rapid change of temperature: 100 cycles, – 40 °C … + 80 °C, as per EN / IEC 60068-2-14
Certificats
Approbations:
CB (IEC 61058-1), CQC, CSA, DNV, ENEC (EN 61058-1), UL, VDE
Conformities:
CE, UKCA, 2011 / 65 / EC (RoHS), 2014 / 35 / EU (LVD)
REACH:
REACH compliant
RoHS:
RoHS compliant
Autres
Short Description:
Switching element, Snap-action switching element, 250 V AC/DC @ 5 A, Gold, 1 NC / 1 NO, Plug-in terminal, 2.8 x 0.5 mm
Material:
Plastic, according to UL 94 V0
Hints:
With lamp terminal
Wiring diagrams:
Wiring diagrams
Component layouts:
Component layouts
Télécharger des fichiers
Composant pour 24.52 USD
Ajouter au panier
Consentement aux cookies
Notre site Web utilise des cookies. Pour plus d'information sur les cookies utilisés sur ce site Web, veuillez consulter notre Déclaration de confidentialité et en savoir plus sur nous dans la section Mentions légales. Vous pouvez modifier les paramètres dans la section Déclaration de confidentialité.
Accepter tous
Refuser
Gérer les paramètres
