Illuminated push button, Series 70, illuminative, PCB, Gold, PCB terminal
- 70-920.9
- 70-220.9S
- Front form
- Lens colour
- Switching rating
- Illumination colour
Ajoute des accessoires & outilage
Votre produit:
Gamme de produits
- HMI function:
- Illuminated push button
- Séries:
- Series 70
Front
- Front form:
- Square
Montage
- Design:
- PCB
Partie commande/affichage
- Lens colour:
- White
- Lens material:
- Plastic
- Lens illumination:
- Illuminated
- Lens shape:
- Flush
- Lens optics:
- translucent
- Illumination colour:
- White
Caractéristiques électriques
- Switching rating:
- 42 V DC @ 0,1 A
- Lumi. Intensity:
- 500 mcd
Caractéristiques mécaniques
- Terminal:
- PCB terminal
- Contact material:
- Gold
- Switching action:
- Momentary
- Switching system:
- Short-travel element
- Poids total:
- 0.002 kg
Autres
- Wiring diagrams:
Enregistrer ou recommander un produit
Télécharger des fichiers
0 en stock 13.22 USD
Ajouter au panier
Votre produit se compose des éléments suivants 2 COMPONENTS:
Front
- Front form:
- Square
Partie commande/affichage
- Lens colour:
- White
- Lens material:
- Plastic
- Lens illumination:
- Illuminated
- Lens shape:
- Flush
- Lens optics:
- translucent
Caractéristiques mécaniques
- Weight:
- 0.001 kg
Certificats
- REACH:
- REACH compliant
- RoHS:
- RoHS compliant
Autres
- Short Description:
- Lens, 19.05 mm x 19.05 mm, Illuminated, White, Flush, Plastic
- Dimension:
- 19.05 mm x 19.05 mm

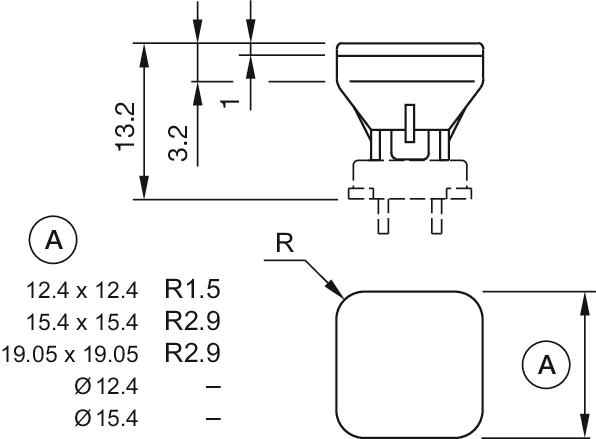

- Dimension drawings:
A = Front dimension
Télécharger des fichiers
0 en stock 5.49 USD
Ajouter au panier
Partie commande/affichage
- Illumination colour:
- White
Caractéristiques électriques
- Contacts:
- 1 NO
- Switching rating:
- 42 V DC @ 0,1 A
- Lumi. Intensity:
- 500 mcd
Caractéristiques mécaniques
- Terminal:
- PCB terminal
- Contact material:
- Gold
- Switching action:
- Momentary
- Switching system:
- Short-travel element
- Weight:
- 0.001 kg
Certificats
- REACH:
- REACH compliant
- RoHS:
- RoHS compliant
Autres
- Short Description:
- Switching element, Short-travel element, 42 V DC @ 0,1 A, Gold, 1 NO, PCB terminal
- Hints:
- The customer has to decide what series resistor shall be used to the LED
- Wiring diagrams:
- Component layouts:
A = Switching element with illumination
B = Single LED
C = Drilling plan (component side)
D = Hole for switching element, pad max. Ø 2.5 mm

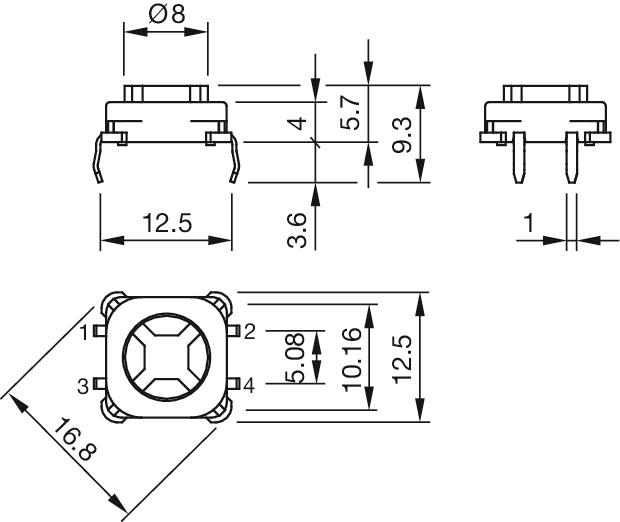

E = Hole for LED- Dimension drawings:
