Indicator full-face illumination compact, Series 04, Ø 29 mm, Raised, IP65, Screw terminal

  • 704.021.5
  • 10-2513.1149

  • Lens cap colour
704.021.5
  • Operating voltage
  • Illumination colour
  • Operating voltage kind of
10-2513.1149
Ajoute des accessoires & outilage
Ajouter à la comparaison
0 en stock 50.11 USD
Ajouter au panier
Votre produit:
704.021.5
10-2513.1149

704.021.5~10-2513.1149

Indicator full-face illumination compact, Series 04, Ø 29 mm, Raised, IP65, Screw terminal

50.11 USD0 en stock
Gamme de produits
HMI function:
Indicator
Séries:
Series 04
Front
Front dimension:
Ø 29 mm
Front form:
Round
Montage
Design:
Raised
Mounting cut-out:
Ø 22.5 mm
Mounting type:
Panel mounting
Partie commande/affichage
Lens cap colour:
Green
Lens cap material:
Plastic
Lens cap optical effect:
transparent
Marking cap colour:
Colourless
Illumination colour:
White
Caractéristiques électriques
Operating voltage:
28 V AC/DC +10%
Operation current:
5 mA ±15 %
Lumi. Intensity:
750 mcd
Caractéristiques mécaniques
Terminal:
Screw terminal
Poids total:
0.021 kg
Conditions environnementales
IP front protection:
IP65
Operating temperature:
– 40 °C … + 55 °C
Autres
Housing colour:
Grey
Housing material:
Plastic
Wiring diagrams:
Wiring diagrams
Wiring diagrams
Enregistrer ou recommander un produit
Télécharger des fichiers
0 en stock 50.11 USD
Ajouter au panier
Votre produit se compose des éléments suivants 2 COMPONENTS:
704.021.5

704.021.5

Actuator

26.35 USD0 en stock
Front
Front dimension:
Ø 29 mm
Front form:
Round
Montage
Design:
Raised
Mounting type:
Panel mounting
Partie commande/affichage
Lens cap colour:
Green
Lens cap material:
Plastic
Lens cap optical effect:
transparent
Marking cap colour:
Colourless
Marking cap optics:
transparent
Marking cap surface:
ribbed
Caractéristiques électriques
Standards:
The switches comply with the “Standards for low-voltage switching devices” DIN EN 60947-1
Caractéristiques mécaniques
Terminal:
Screw terminal
Weight:
0.019 kg
Conditions environnementales
IP Protection:
IP65 front side
Operating temperature:
– 40 °C … + 55 °C
Storage temperature:
– 40 °C … + 85 °C
Certificats
REACH:
REACH compliant
RoHS:
RoHS compliant
Autres
Short Description:
Actuator, Ø 29 mm, Round, Screw terminal
Housing colour:
Grey
Housing material:
Plastic
Wiring diagrams:
Wiring diagrams

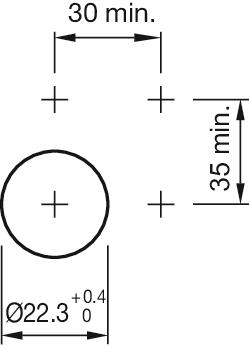

Mounting cut-outs:
Mounting cut-outs

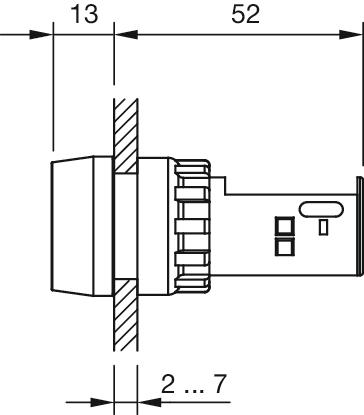

Dimension drawings:
Dimension drawings
Télécharger des fichiers
0 en stock 26.35 USD
Ajouter au panier
10-2513.1149

10-2513.1149

Single-LED

23.76 USD0 en stock
Partie commande/affichage
Illumination colour:
White
Caractéristiques électriques
Operating voltage:
28 V AC/DC +10%
Operation current:
5 mA ±15 %
Lumi. Intensity:
750 mcd
Caractéristiques mécaniques
Weight:
0.002 kg
Certificats
REACH:
REACH compliant
RoHS:
RoHS compliant
Autres
Short Description:
Single-LED, BA9s, White, 28 V AC/DC +10%
Kind of iIllumination:
Single-LED
Hints:
The specified 6 V DC, 24 V DC Bi-colour; 130 V AC, 130 V DC and 230 V AC versions are built with a protection diode
The specified 12, 24, 28, 48 VAC/DC versions are built with a bridge rectifier
The specified 130 VAC types are developed to run on a supply voltage of 130 VAC only
An operation at a higher supply voltage using commercial lampholders with integrated resistors, is not approved
If the 24VDC Bi-colour lamp is driven with normal polarity (plus on middle contact of the lamp) the first mentioned colour will light up, with inverted polarity the second colour will ligth up
The luminous intensity stated is for when used with DC
Electrical and optical data are measured at 25 °C
Luminosity and wave length variations caused by LED manufacturing processes may cause slight differences regarding the illumination. The customer has to decide what resistor shall be used to the LED
Wiring diagrams:
Wiring diagrams
Dimension drawings:
Dimension drawings
A = (standard)
B = (super bright)
Télécharger des fichiers
0 en stock 23.76 USD
Ajouter au panier
