Distribution by
Mouser
View alternatives
Assembly settings
Front
Front form
Round

Round

choose ...
  • Round
Front dimension
Ø 37 mm

Ø 37 mm

choose ...
  • Ø 37 mm
Mounting
Design
Raised

Raised

choose ...
  • Raised
Mounting type
Panel mounting

Panel mounting

choose ...
  • Panel mounting
Mounting cut-out
Ø 22 mm

Ø 22 mm

choose ...
  • Ø 22 mm
Operating-/Indication part
Lens shape
Mushroom-head

Mushroom-head

choose ...
  • Mushroom-head
Lens colour
Red

Red

choose ...
  • Red
Lens material
Plastic

Plastic

choose ...
  • Plastic
Lens illumination
Non illuminated

Non illuminated

choose ...
  • Non illuminated
Electrical characteristics
Contacts configuration
2 NC

2 NC

choose ...
  • 1 FS + 1 NC
  • 1 FS + 1 NC + 1 NO
  • 1 FS + 1 NC + 2 NO
  • 1 FS + 2 NC
  • 1 FS + 2 NC + 1 NO
  • 1 FS + 3 NC
  • 1 NC
  • 1 NC + 1 NO
  • 1 NC + 2 NO
  • 1 NC + 3 NO
  • 2 FS + 2 NC
  • 2 NC
  • 2 NC + 1 NO
  • 2 NC + 2 NO
  • 3 NC
  • 3 NC + 1 NO
  • 4 NC
Switching rating
500 V AC @ 10 A

500 V AC @ 10 A

choose ...
  • 250 V AC @ 6 A
  • 500 V @ 10 A
  • 500 V AC @ 10 A
  • 500 V AC @ 6 A
Mechanical Characteristics
Release type
Twist to unlock

Twist to unlock

choose ...
  • Key release to unlock
  • Twist to unlock
Terminal
Screw terminal

Screw terminal

choose ...
  • Double plug-in terminal, 6.3 x 0.8 mm
  • Plug-in terminal, 6.3 x 0.8 mm
  • Push-in terminal
  • Ring cable lug screw terminal
  • Screw terminal
Switching system
Slow-make switching element

Slow-make switching element

choose ...
  • Slow-make switching element
Contact material
Palladium

Palladium

choose ...
  • Gold
  • Palladium
  • Silver
Switching action
Maintained

Maintained

choose ...
  • Maintained
Ambient Condition
IP front protection
IP65

IP65

choose ...
  • IP65
Other
Marking
Arrows

Arrows

choose ...
  • Arrows
Back
View detailed product overview
Emergency stop switch & Stop switch
Distribution by
Mouser
https://mouser.eao.com/p/ff3b3614

Emergency stop switch, Series 04, Ø 37 mm, Raised, 2 NC, IP65, Screw terminal

  • 704.064.2A
  • 704.912.4-1

  • Release type
704.064.2A
  • Terminal
  • Switching rating
  • Contact material
  • Contacts configuration
704.912.4-1
Add Accessories & Tools
Add to compare
0 in stock 174.80 USD
Add to Cart
Your product:
704.064.2A
704.912.4-1

704.064.2A~704.912.4-1

Emergency stop switch, Series 04, Ø 37 mm, Raised, 2 NC, IP65, Screw terminal

174.80 USD0 in stock
Product range
HMI function:
Emergency stop switch
Series:
Series 04
Front
Front dimension:
Ø 37 mm
Front form:
Round
Mounting
Design:
Raised
Mounting cut-out:
Ø 22.5 mm
Mounting type:
Panel mounting
Operating-/Indication part
Lens colour:
Red
Lens material:
Plastic
Lens illumination:
Non illuminated
Lens shape:
Mushroom-head
Lens optics:
opaque
Electrical characteristics
Switching voltage and switching current:

as per DIN EN IEC 60947-5-1

voltage

DC13

AC15

24 V

4.0 A

8.0 A

60 V

1.5 A

8.0 A

110 V

1.0 A

120 V

8.0 A

230 V

0.4 A

7.0 A

400 V

0.2 A

5.0 A

500 V

0.15 A

4.0 A

as per UL 60947-5-1

voltage

power

24 VDC

4.0 A, Pilot duty

60 VDC

1.5 A, Pilot duty

120 VDC

1.0 A, Pilot duty

240 VDC

0.4 A, Pilot duty

415 VDC

0.2 A, Pilot duty

480 VDC

0.14A, Pilot duty

120 VAC

8.0 A, Pilot duty

240 VAC

7.0 A, Pilot duty

415 VAC

5.0 A, Pilot duty

480 VAC

4.0 A, Pilot duty

For voltages greater than Ue = 400 V,

the grid dimensions must not be

less than 35 mm x 50 mm.
Contacts configuration:
2 NC
Switching rating:
500 V AC @ 10 A
Electrical lifetime:
50 000 cycles of operation (500 VAC, 10 A)
Thermal current Ith:
Max. current as per EN IEC 60947-5-1 10 A
Mechanical Characteristics
Terminal:
Screw terminal
Contact material:
Palladium
Switching action:
Maintained
Switching system:
Slow-make switching element
Release type:
Twist to unlock
Tightening torque:
Screw terminal 0.8 Nm
Total weight:
0.077 kg
Ambient Condition
IP front protection:
IP65
Operating temperature:
– 25 °C … + 55 °C
Vibration resistance:
(sinusförmig) 100 m/s² bei 10 Hz…500 Hz, nach DIN EN 60068-2-6, Erhöhtes Breitbandrauschen nach DIN EN 61373, Klasse 1B
Certificate
Approbations:
UL, CE, CCC, EN 60947-5-5, ISO 13850
Other
Housing colour:
Yellow
Housing material:
Plastic
Marking:
Arrows
Product attributes:
Twist to unlock anti-clockwise
max. number of switching elements:
2
Assembly instruction video:
https://vimeo.com/eaohmi/assembly-instruction-e-stop-s04
Wiring diagrams:
Wiring diagrams
Wiring diagrams
Share and save this product
Download files
0 in stock 174.80 USD
Add to Cart
Your product consists of the following 2 COMPONENTS:
704.064.2A

704.064.2A

Actuator

41.85 USD9 in stock
Front
Front dimension:
Ø 37 mm
Front form:
Round
Mounting
Design:
Raised
Mounting type:
Panel mounting
Operating-/Indication part
Lens colour:
Red
Lens material:
Plastic
Lens illumination:
Non illuminated
Lens shape:
Mushroom-head
Lens optics:
opaque
Mechanical Characteristics
Switching action:
Maintained
Release type:
Twist to unlock
Mechanical lifetime:
≥50 000 cycles of operation
Operating force:
8 N
Operating Travel:
ca. 5.8 mm ± 0.2 mm
Weight:
0.048 kg
Ambient Condition
IP Protection:
IP65 front side
Operating temperature:
– 25 °C … + 55 °C
Storage temperature:
– 40 °C … + 85 °C
Certificate
REACH:
REACH compliant
RoHS:
RoHS compliant
Other
Short Description:
Actuator, Ø 37 mm, Mushroom-head, Non illuminated, Red, Plastic, opaque, Round, Maintained, Twist to unlock
Housing colour:
Yellow
Housing material:
Plastic
Marking:
Arrows
Product attributes:
Twist to unlock anti-clockwise
Hints:
Shaft yellow
Wiring diagrams:
Wiring diagrams
Mounting cut-outs:
Mounting cut-outs

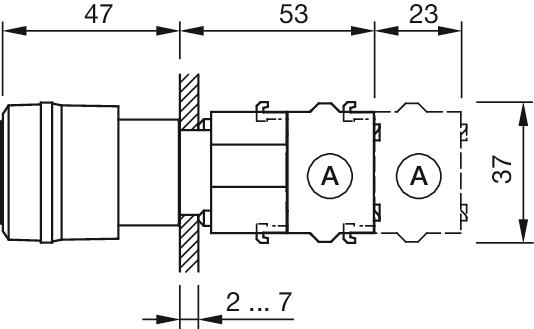

Dimension drawings:
Dimension drawings
A = Screw terminal
Download files
Component for 41.85 USD
Add to Cart
704.912.4-1

704.912.4-1

Switching element - New Version

132.95 USD0 in stock
Electrical characteristics
Switching voltage and switching current:

as per DIN EN IEC 60947-5-1

voltage

DC13

AC15

24 V

4.0 A

8.0 A

60 V

1.5 A

8.0 A

110 V

1.0 A

120 V

8.0 A

230 V

0.4 A

7.0 A

400 V

0.2 A

5.0 A

500 V

0.15 A

4.0 A

as per UL 60947-5-1

voltage

power

24 VDC

4.0 A, Pilot duty

60 VDC

1.5 A, Pilot duty

120 VDC

1.0 A, Pilot duty

240 VDC

0.4 A, Pilot duty

415 VDC

0.2 A, Pilot duty

480 VDC

0.14A, Pilot duty

120 VAC

8.0 A, Pilot duty

240 VAC

7.0 A, Pilot duty

415 VAC

5.0 A, Pilot duty

480 VAC

4.0 A, Pilot duty

For voltages greater than Ue = 400 V,

the grid dimensions must not be

less than 35 mm x 50 mm.
Contacts:
2 NC
Rated impulse withstand voltage Uimp:
4 kV
Rated insulation voltage Ui:
500 V
Recommended minimum operational data:

Gold-silver contacts

Voltage

24 VDC

110 VDC

Current

5 mA

2 mA

Hard silver contacts

Voltage

24 VDC

110 VDC

Current

50 mA

10 mA
Switching rating:
500 V AC @ 10 A
Electrical lifetime:
50 000 cycles of operation (500 VAC, 10 A)
Pollution degree:
3
Standards:
The switches comply with the “Standards for low-voltage switching devices” DIN EN IEC UL 60947-5-1
Thermal current Ith:
Max. current as per EN IEC 60947-5-1 10 A
Mechanical Characteristics
Terminal:
Screw terminal
Contact material:
Palladium
Switching system:
Slow-make switching element
Switching system:
The double-break, slow-make switching element is equipped with one or two independent contact systems, acting as normally open or normally closed contact. The normally closed contact has forced opening.
Slow-make contacts with forced action are ideal for high switch ratings.
Operating force:
1 Normally closed approx. 2 N, 1 Normally open approx. 3 N
Tightening torque:
Screw terminal 0.8 Nm
Wire cross section:
Wire cross-section 0.75 ... 2.5 mm² / AWG 18 to AWG 14
Skinning wire 10 mm
Max. number of wires: 2
Wire cross-section of stranded cable 0.5 ... 1.5 mm² / AWG 24 to AWG 18
use stranded wires only with wire end ferrules of 10 mm length
Max. number of stranded cables: 2
Only one polarity is allowed on each side when wiring.
Weight:
0.029 kg
Ambient Condition
IP Protection:
IP20
Operating temperature:
– 40 °C … + 55 °C
Storage temperature:
– 40 °C … + 85 °C
Shock resistance:
(single impacts, semi-sinusoidal) 300 m/s², pulse width 18 ms, as per DIN EN 60068-2-27
Vibration resistance:
(sinusförmig) 100 m/s² bei 10 Hz…500 Hz, nach DIN EN 60068-2-6, Erhöhtes Breitbandrauschen nach DIN EN 61373, Klasse 1B
Climate resistance:
Relative humidity 10 %rh ... 95 %rh (non-condensing) original packaging according to DIN EN IEC 60721-3-1 Class 1C1
Certificate
Approbations:
CB (IEC 60947-5-1), cULus, DNV, VDE
Conformities:
CE, CCC, UKCA
REACH:
REACH compliant
RoHS:
RoHS compliant
Other
Short Description:
Switching element - New Version, Slow-make switching element, 500 V AC @ 10 A, Palladium, 2 NC, Screw terminal
Hints:
When using the switching element, the application guidelines must be observed.
For the third switching element the terminal marking insert is to be ordered separately
Operating temperature: Other temperatures on request
A suitable enclosure is required for applications with increased protection requirements. In North America, the product must be installed in an enclosure in accordance with UL 50E Type 2 or higher.
Special requirements:

Special requirements for positive-opening auxiliary current switches

Positive opening travel

Emergency stop 12.5 mm

Minimum force

Emergency stop 50 N (actuating force at

which is safely switched)

Max. travel

Emergency stop 12.5 mm
Wiring diagrams:
Wiring diagrams
Dimension drawings:
Dimension drawings
Download files
0 in stock 132.95 USD
Add to Cart
