Emergency stop switch & Stop switch
Distribution by
Mouser
https://mouser.eao.com/p/f8f51c3a

Stop switch, Series 04, Ø 37 mm, Raised, 2 NC, IP65, Push-in terminal

  • 704.064.2
  • 704.908.4-1

  • Release type
704.064.2
  • Terminal
  • Switching rating
  • Contact material
  • Switching system
  • Contacts configuration
704.908.4-1
Add Accessories & Tools
Add to compare
Not available
Your product:
704.064.2
704.908.4-1

704.064.2~704.908.4-1

Stop switch, Series 04, Ø 37 mm, Raised, 2 NC, IP65, Push-in terminal

0 in stock
Product range
HMI function:
Stop switch
Series:
Series 04
Front
Front dimension:
Ø 37 mm
Front form:
Round
Mounting
Design:
Raised
Mounting cut-out:
Ø 22.5 mm
Mounting type:
Panel mounting
Operating-/Indication part
Lens colour:
Red
Lens material:
Plastic
Lens illumination:
Non illuminated
Lens shape:
Mushroom-head
Lens optics:
opaque
Electrical characteristics
Switching voltage and switching current:

as per DIN EN IEC 60947-5-1

voltage

DC13

AC15

24 V

2,5 A

60 V

0,8 A

110 V

0,6 A

120 V

4,5 A

230 V

0,2 A

4,5 A

400 V

0,15 A

4,0 A

500 V

0,7 A

2,5 A

as per UL 60947-5-1

voltage

power

24 VDC

2,5 A, Pilot duty

60 VDC

0,8 A, Pilot duty

120 VDC

0,6 A, Pilot duty

240 VDC

0,2 A, Pilot duty

415 VDC

0,15 A, Pilot duty

480 VDC

0,07A, Pilot duty

120 VAC

4,5 A, Pilot duty

240 VAC

4,5 A, Pilot duty

415 VAC

4,0 A, Pilot duty

480 VAC

2,5 A, Pilot duty
Contacts configuration:
2 NC
Switching rating:
250 V AC @ 6 A
Electrical lifetime:
50 000 cycles of operation (500 VAC, 10 A)
Thermal current Ith:
Max. current as per EN IEC 60947-5-1 6 A
Mechanical Characteristics
Terminal:
Push-in terminal
Contact material:
Silver
Switching action:
Maintained
Switching system:
Snap-action switching element
Release type:
Twist to unlock
Total weight:
0.075 kg
Ambient Condition
IP front protection:
IP65
Operating temperature:
– 40 °C … + 55 °C
Vibration resistance:
(sinusförmig) 100 m/s² bei 10 Hz…500 Hz, nach DIN EN 60068-2-6, Erhöhtes Breitbandrauschen nach DIN EN 61373, Klasse 1B
Other
Housing colour:
Yellow
Housing material:
Plastic
Marking:
Arrows
Product attributes:
Twist to unlock clockwise
max. number of switching elements:
3
Wiring diagrams:
Wiring diagrams
Wiring diagrams
Share and save this product
Download files
Not available
Your product consists of the following 2 COMPONENTS:
704.064.2

704.064.2

Actuator

0 in stock
Front
Front dimension:
Ø 37 mm
Front form:
Round
Mounting
Design:
Raised
Mounting type:
Panel mounting
Operating-/Indication part
Lens colour:
Red
Lens material:
Plastic
Lens illumination:
Non illuminated
Lens shape:
Mushroom-head
Lens optics:
opaque
Electrical characteristics
Standards:
The switches comply with the “Standards for low-voltage switching devices” DIN EN 60947-1
Mechanical Characteristics
Switching action:
Maintained
Release type:
Twist to unlock
Mechanical lifetime:
≤50 000 cycles of operation
Operating force:
8 N
Operating Travel:
ca. 5.8 mm ± 0.2 mm
Weight:
0.048 kg
Ambient Condition
IP Protection:
IP65 front side
Operating temperature:
– 40 °C … + 55 °C
Storage temperature:
– 40 °C … + 85 °C
Certificate
REACH:
REACH compliant
RoHS:
RoHS compliant
Other
Short Description:
Actuator, Ø 37 mm, Mushroom-head, Non illuminated, Red, Plastic, opaque, Round, Maintained, Twist to unlock
Housing colour:
Yellow
Housing material:
Plastic
Marking:
Arrows
Product attributes:
Twist to unlock clockwise
Hints:
Shaft yellow
max. number of switching elements:
2
Wiring diagrams:
Wiring diagrams

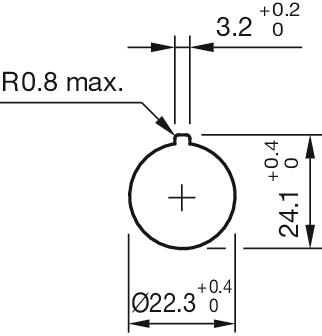

Mounting cut-outs:
Mounting cut-outs

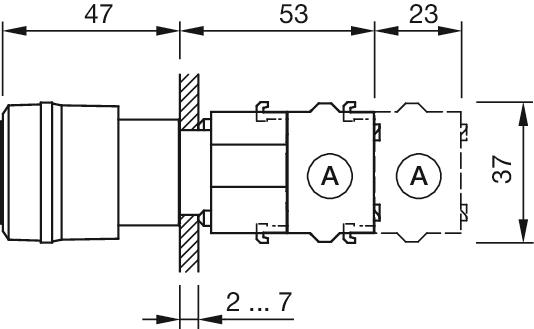

Dimension drawings:
Dimension drawings
A = Screw terminal
Download files
Not available
704.908.4-1

704.908.4-1

Switching element - New Version

41.16 USD4 in stock
Electrical characteristics
Switching voltage and switching current:

as per DIN EN IEC 60947-5-1

voltage

DC13

AC15

24 V

2,5 A

60 V

0,8 A

110 V

0,6 A

120 V

4,5 A

230 V

0,2 A

4,5 A

400 V

0,15 A

4,0 A

500 V

0,7 A

2,5 A

as per UL 60947-5-1

voltage

power

24 VDC

2,5 A, Pilot duty

60 VDC

0,8 A, Pilot duty

120 VDC

0,6 A, Pilot duty

240 VDC

0,2 A, Pilot duty

415 VDC

0,15 A, Pilot duty

480 VDC

0,07A, Pilot duty

120 VAC

4,5 A, Pilot duty

240 VAC

4,5 A, Pilot duty

415 VAC

4,0 A, Pilot duty

480 VAC

2,5 A, Pilot duty
Contacts:
2 NC
Rated impulse withstand voltage Uimp:
4 kV
Rated insulation voltage Ui:
500 V
Recommended minimum operational data:

Gold-silver contacts

Voltage

24 VDC

Current

5 mA

Hard silver contacts

Voltage

24 VDC

Current

50 mA
Switching rating:
250 V AC @ 6 A
Electrical lifetime:
50 000 cycles of operation (500 VAC, 10 A)
Pollution degree:
3
Standards:
The switches comply with the “Standards for low-voltage switching devices” DIN EN IEC UL 60947-5-1
Thermal current Ith:
Max. current as per EN IEC 60947-5-1 6 A
Mechanical Characteristics
Terminal:
Push-in terminal
Contact material:
Silver
Switching system:
Snap-action switching element
Switching system:
The double-break, snap-action switching element is equipped with one or two independent contact systems, acting as normally open or normally closed contact. The snap-action switching element is fitted with self-cleaning contacts.
Operating force:
1 Normally closed approx. 2 N, 1 Normally open approx. 3 N
Wire cross section:
Wire cross-section 0.2 ... 1.0 mm² / AWG 24 to AWG 18
Skinning wire 8 mm
Max. number of wires: 2
stranded cables 0.2 … 0.75 mm²/ AWG 24 bis AWG 18
use stranded wires only with wire end ferrules of 8 mm length
Max. number of stranded cables: 2
Only one polarity is allowed on each side when wiring.
Weight:
0.027 kg
Ambient Condition
IP Protection:
IP20
Operating temperature:
– 40 °C … + 55 °C
Storage temperature:
– 40 °C … + 85 °C
Shock resistance:
(single impacts, semi-sinusoidal) 300 m/s², pulse width 18 ms, as per DIN EN 60068-2-27
Vibration resistance:
(sinusförmig) 100 m/s² bei 10 Hz…500 Hz, nach DIN EN 60068-2-6, Erhöhtes Breitbandrauschen nach DIN EN 61373, Klasse 1B
Climate resistance:
Relative humidity 10 %rh ... 95 %rh (non-condensing) original packaging according to DIN EN IEC 60721-3-1 Class 1C1
Certificate
Approbations:
CB (IEC 60947-5-1), cULus, DNV, VDE
Conformities:
CE, CCC, UKCA
REACH:
REACH compliant
RoHS:
RoHS compliant
Other
Short Description:
Switching element - New Version, Snap-action switching element, 250 V AC @ 6 A, Silver, 2 NC, Push-in terminal
Hints:
When using the switching element, the application guidelines must be observed.
For the third switching element the terminal marking insert is to be ordered separately
Operating temperature: Other temperatures on request
A suitable enclosure is required for applications with increased protection requirements. In North America, the product must be installed in an enclosure in accordance with UL 50E Type 2 or higher.
Wiring diagrams:
Wiring diagrams
Dimension drawings:
Dimension drawings
Download files
Component for 41.16 USD
Add to Cart
