Mushroom-head push button, Series 04, Ø 40 mm, non illuminative, Raised, 2 NC, Silver, IP65, Push-in terminal
- 704.070.0
- 704.908.4-1
- Lens material
- Front bezel colour
- Switching action
- Front bezel material
- Lens colour
- Front dimension
- Terminal
- Switching rating
- Contact material
- Switching system
- Contacts Configuration
Ajoute des accessoires & outilage
Votre produit:
Gamme de produits
- HMI function:
- Mushroom-head push button
- Séries:
- Series 04
Front
- Front dimension:
- Ø 40 mm
- Front form:
- Round
- Front bezel colour:
- Grey
- Front bezel material:
- Plastic
Montage
- Design:
- Raised
- Mounting cut-out:
- Ø 22.5 mm
- Mounting type:
- Panel mounting
Partie commande/affichage
- Lens colour:
- Black
- Lens material:
- Plastic
- Lens illumination:
- Non illuminated
- Lens shape:
- Mushroom-head
- Lens optics:
- opaque
Caractéristiques électriques
- Switching voltage and switching current:
as per DIN EN IEC 60947-5-1
voltage
DC13
AC15
24 V
2,5 A
60 V
0,8 A
110 V
0,6 A
120 V
4,5 A
230 V
0,2 A
4,5 A
400 V
0,15 A
4,0 A
500 V
0,7 A
2,5 A
as per UL 60947-5-1
voltage
power
24 VDC
2,5 A, Pilot duty
60 VDC
0,8 A, Pilot duty
120 VDC
0,6 A, Pilot duty
240 VDC
0,2 A, Pilot duty
415 VDC
0,15 A, Pilot duty
480 VDC
0,07A, Pilot duty
120 VAC
4,5 A, Pilot duty
240 VAC
4,5 A, Pilot duty
415 VAC
4,0 A, Pilot duty
480 VAC
2,5 A, Pilot duty
- Contacts Configuration:
- 2 NC
- Switching rating:
- 250 V AC @ 6 A
- Electrical lifetime:
- 50 000 cycles of operation (500 VAC, 10 A)
- Thermal current Ith:
- Max. current as per EN IEC 60947-5-1 6 A
Caractéristiques mécaniques
- Terminal:
- Push-in terminal
- Contact material:
- Silver
- Switching action:
- Momentary
- Switching system:
- Snap-action switching element
- Poids total:
- 0.047 kg
Conditions environnementales
- IP front protection:
- IP65
- Operating temperature:
- – 40 °C … + 55 °C
- Vibration resistance:
- (sinusförmig) 100 m/s² bei 10 Hz…500 Hz, nach DIN EN 60068-2-6, Erhöhtes Breitbandrauschen nach DIN EN 61373, Klasse 1B
Autres
- Housing colour:
- Grey
- Housing material:
- Plastic
- max. number of switching elements:
- 3
- Wiring diagrams:
Enregistrer ou recommander un produit
Télécharger des fichiers
Produits pour 60.23 USD
Ajouter au panier
Votre produit se compose des éléments suivants 2 COMPONENTS:
Front
- Front dimension:
- Ø 40 mm
- Front form:
- Round
- Front bezel colour:
- Grey
- Front bezel material:
- Plastic
Montage
- Design:
- Raised
- Mounting type:
- Panel mounting
Partie commande/affichage
- Lens colour:
- Black
- Lens material:
- Plastic
- Lens illumination:
- Non illuminated
- Lens shape:
- Mushroom-head
- Lens optics:
- opaque
Caractéristiques mécaniques
- Switching action:
- Momentary
- Mechanical lifetime:
- ≤3 Mil. cycles of operation
- Weight:
- 0.02 kg
Certificats
- REACH:
- REACH compliant
- RoHS:
- RoHS compliant
Autres
- Short Description:
- Actuator, Ø 40 mm, Mushroom-head, Non illuminated, Black, Plastic, opaque, Round, Grey, Plastic, Momentary
- Housing colour:
- Grey
- Housing material:
- Plastic
- Hints:
- Max. 3 switching elements can be clipped on
- max. number of switching elements:
- 3
- Wiring diagrams:
- Mounting cut-outs:
A = Screw terminal
B = Push-in terminal (PIT)
C = Plug-in terminal 6.3 mm x 0.8 mm
D = Double plug-in terminal 6.3 mm x 0.8 mm- Dimension drawings:
A = Screw terminal
Télécharger des fichiers
Composant pour 19.07 USD
Ajouter au panier
Caractéristiques électriques
- Switching voltage and switching current:
as per DIN EN IEC 60947-5-1
voltage
DC13
AC15
24 V
2,5 A
60 V
0,8 A
110 V
0,6 A
120 V
4,5 A
230 V
0,2 A
4,5 A
400 V
0,15 A
4,0 A
500 V
0,7 A
2,5 A
as per UL 60947-5-1
voltage
power
24 VDC
2,5 A, Pilot duty
60 VDC
0,8 A, Pilot duty
120 VDC
0,6 A, Pilot duty
240 VDC
0,2 A, Pilot duty
415 VDC
0,15 A, Pilot duty
480 VDC
0,07A, Pilot duty
120 VAC
4,5 A, Pilot duty
240 VAC
4,5 A, Pilot duty
415 VAC
4,0 A, Pilot duty
480 VAC
2,5 A, Pilot duty
- Contacts:
- 2 NC
- Rated impulse withstand voltage Uimp:
- 4 kV
- Rated insulation voltage Ui:
- 500 V
- Recommended minimum operational data:
Gold-silver contacts
Voltage
24 VDC
Current
5 mA
Hard silver contacts
Voltage
24 VDC
Current
50 mA
- Switching rating:
- 250 V AC @ 6 A
- Electrical lifetime:
- 50 000 cycles of operation (500 VAC, 10 A)
- Pollution degree:
- 3
- Standards:
- The switches comply with the “Standards for low-voltage switching devices” DIN EN IEC UL 60947-5-1
- Thermal current Ith:
- Max. current as per EN IEC 60947-5-1 6 A
Caractéristiques mécaniques
- Terminal:
- Push-in terminal
- Contact material:
- Silver
- Switching system:
- Snap-action switching element
- Switching system:
- The double-break, snap-action switching element is equipped with one or two independent contact systems, acting as normally open or normally closed contact. The snap-action switching element is fitted with self-cleaning contacts.
- Operating force:
- 1 Normally closed approx. 2 N, 1 Normally open approx. 3 N
- Wire cross section:
- Wire cross-section 0.2 ... 1.0 mm² / AWG 24 to AWG 18Skinning wire 8 mmMax. number of wires: 2stranded cables 0.2 … 0.75 mm²/ AWG 24 bis AWG 18use stranded wires only with wire end ferrules of 8 mm lengthMax. number of stranded cables: 2Only one polarity is allowed on each side when wiring.
- Weight:
- 0.027 kg
Conditions environnementales
- IP Protection:
- IP20
- Operating temperature:
- – 40 °C … + 55 °C
- Storage temperature:
- – 40 °C … + 85 °C
- Shock resistance:
- (single impacts, semi-sinusoidal) 300 m/s², pulse width 18 ms, as per DIN EN 60068-2-27
- Vibration resistance:
- (sinusförmig) 100 m/s² bei 10 Hz…500 Hz, nach DIN EN 60068-2-6, Erhöhtes Breitbandrauschen nach DIN EN 61373, Klasse 1B
- Climate resistance:
- Relative humidity 10 %rh ... 95 %rh (non-condensing) original packaging according to DIN EN IEC 60721-3-1 Class 1C1
Certificats
- Approbations:
- CB (IEC 60947-5-1), cULus, DNV, VDE
- Conformities:
- CE, CCC, UKCA
- REACH:
- REACH compliant
- RoHS:
- RoHS compliant
Autres
- Short Description:
- Switching element - New Version, Snap-action switching element, 250 V AC @ 6 A, Silver, 2 NC, Push-in terminal
- Hints:
- When using the switching element, the application guidelines must be observed.For the third switching element the terminal marking insert is to be ordered separatelyOperating temperature: Other temperatures on requestA suitable enclosure is required for applications with increased protection requirements. In North America, the product must be installed in an enclosure in accordance with UL 50E Type 2 or higher.
- Wiring diagrams:

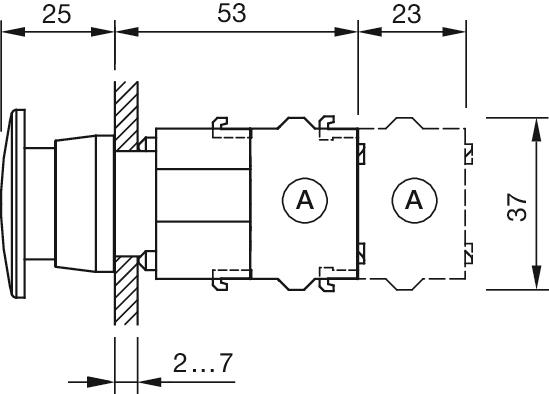

- Dimension drawings:
