Assembly settings
Front
Front form
Round
Round
choisir ...
Front bezel colour
Nature
Nature
choisir ...
Front bezel material
Aluminium
Aluminium
choisir ...
Front dimension
Ø 35 mm
Ø 35 mm
choisir ...
Montage
Design
Flush
Flush
choisir ...
Mounting type
Panel mounting
Panel mounting
choisir ...
Mounting cut-out
Ø 30 mm
Ø 30 mm
choisir ...
Partie commande/affichage
Lever shape
short
short
choisir ...
Lever colour
Black
Black
choisir ...
Lever bar colour
White
White
choisir ...
Caractéristiques électriques
Contacts Configuration
1 NO
1 NO
choisir ...
Switching rating
250 V AC @ 6 A
250 V AC @ 6 A
choisir ...
Caractéristiques mécaniques
Terminal
Push-in terminal
Push-in terminal
choisir ...
Switching positions
2 positions
2 positions
choisir ...
Switching system
Snap-action switching element
Snap-action switching element
choisir ...
Contact material
Gold
Gold
choisir ...
Switching action
Rest - Maintained
Rest - Maintained
choisir ...
Switching angle
90° right / -45° … +45°
90° right / -45° … +45°
choisir ...
Conditions environnementales
IP front protection
IP65
IP65
choisir ...
Retour
Distribution par
Mouser
Mouser
Selector switch, Series 04, 2 positions, Flush, 1 NO, Push-in terminal
- 704.411.018
- 704.907.1-1
- Front bezel colour
- Lever shape
- Front dimension
- Switching action
- Switching angle
- Mounting cut-out
- Front form
- Lever bar colour
- Front bezel material
- Switching system
- Contact material
- Terminal
- Switching rating
- Contacts Configuration
Ajoute des accessoires & outilage
Votre produit:
Gamme de produits
- HMI function:
- Selector switch
- Séries:
- Series 04
Front
- Front dimension:
- Ø 35 mm
- Front form:
- Round
- Front bezel colour:
- Nature
- Front bezel material:
- Aluminium
Montage
- Design:
- Flush
- Mounting cut-out:
- Ø 30.5 mm
- Mounting type:
- Panel mounting
Partie commande/affichage
- Lever colour:
- Black
- Lever bar colour:
- White
- Lever shape:
- short
Caractéristiques électriques
- Switching voltage and switching current:
as per DIN EN IEC 60947-5-1
voltage
DC13
AC15
24 V
2,5 A
60 V
0,8 A
110 V
0,6 A
120 V
4,5 A
230 V
0,2 A
4,5 A
400 V
0,15 A
4,0 A
500 V
0,7 A
2,5 A
as per UL 60947-5-1
voltage
power
24 VDC
2,5 A, Pilot duty
60 VDC
0,8 A, Pilot duty
120 VDC
0,6 A, Pilot duty
240 VDC
0,2 A, Pilot duty
415 VDC
0,15 A, Pilot duty
480 VDC
0,07A, Pilot duty
120 VAC
4,5 A, Pilot duty
240 VAC
4,5 A, Pilot duty
415 VAC
4,0 A, Pilot duty
480 VAC
2,5 A, Pilot duty
- Contacts Configuration:
- 1 NO
- Switching rating:
- 250 V AC @ 6 A
- Electrical lifetime:
- 50 000 cycles of operation (500 VAC, 10 A)
- Thermal current Ith:
- Max. current as per EN IEC 60947-5-1 6 A
Caractéristiques mécaniques
- Terminal:
- Push-in terminal
- Contact material:
- Gold
- Switching action:
- Rest - Maintained
- Switching system:
- Snap-action switching element
- Switching positions:
- 2 positions
- Switching angle:
- 90° right / -45° … +45°
- Poids total:
- 0.062 kg
Conditions environnementales
- IP front protection:
- IP65
- Operating temperature:
- – 40 °C … + 55 °C
- Vibration resistance:
- (sinusförmig) 100 m/s² bei 10 Hz…500 Hz, nach DIN EN 60068-2-6, Erhöhtes Breitbandrauschen nach DIN EN 61373, Klasse 1B
Autres
- max. number of switching elements:
- 3
- Wiring diagrams:
Enregistrer ou recommander un produit
Télécharger des fichiers
Produits pour 119.67 USD
Ajouter au panier
Votre produit se compose des éléments suivants 2 COMPONENTS:
Front
- Front dimension:
- Ø 35 mm
- Front form:
- Round
- Front bezel colour:
- Nature
- Front bezel material:
- Aluminium
Montage
- Design:
- Flush
- Mounting cut-out:
- Ø 30.5 mm
- Mounting type:
- Panel mounting
Partie commande/affichage
- Lever colour:
- Black
- Lever bar colour:
- White
- Lever material:
- plastic
- Lever shape:
- short
Caractéristiques électriques
- Standards:
- The switches comply with the “Standards for low-voltage switching devices” DIN EN 60947-1
Caractéristiques mécaniques
- Switching action:
- Rest - Maintained
- Switching positions:
- 2 positions
- Switching angle:
- 90° right / -45° … +45°
- Mechanical lifetime:
- ≤2.5 Mil. cycles of operation
- Weight:
- 0.042 kg
Conditions environnementales
- IP Protection:
- IP65 front side
- Operating temperature:
- – 40 °C … + 55 °C
- Storage temperature:
- – 40 °C … + 85 °C
Certificats
- REACH:
- REACH compliant
- RoHS:
- RoHS compliant
Autres
- Short Description:
- Actuator, Ø 30.5 mm, Ø 35 mm, non illuminative, Black, short, Round, Nature, Aluminium, anodised, Rest - Maintained
- Hints:
- Max. 3 switching elements can be clipped on
- max. number of switching elements:
- 3
- Switching positions:
- Wiring diagrams:

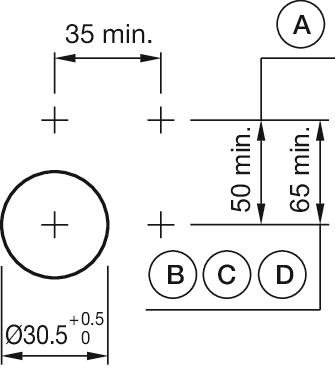

- Mounting cut-outs:
A = Screw terminal
B = Push-in terminal (PIT)
C = Plug-in terminal 6.3 mm x 0.8 mm

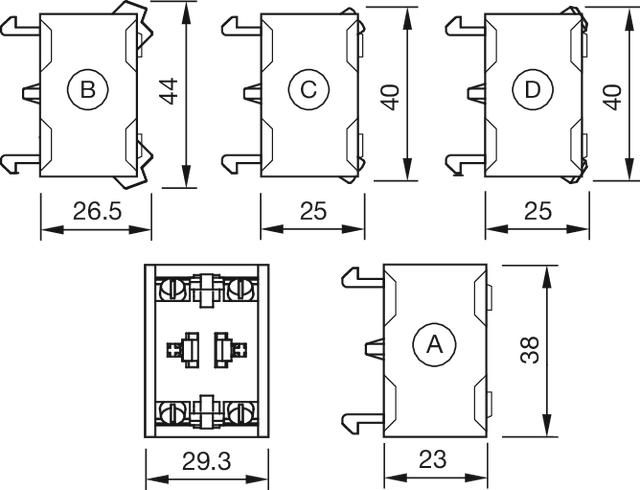

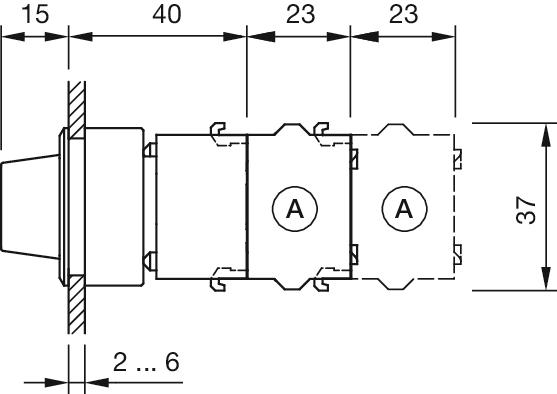

D = Double plug-in terminal 6.3 mm x 0.8 mm- Dimension drawings:
A = Screw terminal
Télécharger des fichiers
Composant pour 59.17 USD
Ajouter au panier
Caractéristiques électriques
- Switching voltage and switching current:
as per DIN EN IEC 60947-5-1
voltage
DC13
AC15
24 V
2,5 A
60 V
0,8 A
110 V
0,6 A
120 V
4,5 A
230 V
0,2 A
4,5 A
400 V
0,15 A
4,0 A
500 V
0,7 A
2,5 A
as per UL 60947-5-1
voltage
power
24 VDC
2,5 A, Pilot duty
60 VDC
0,8 A, Pilot duty
120 VDC
0,6 A, Pilot duty
240 VDC
0,2 A, Pilot duty
415 VDC
0,15 A, Pilot duty
480 VDC
0,07A, Pilot duty
120 VAC
4,5 A, Pilot duty
240 VAC
4,5 A, Pilot duty
415 VAC
4,0 A, Pilot duty
480 VAC
2,5 A, Pilot duty
- Contacts:
- 1 NO
- Rated impulse withstand voltage Uimp:
- 4 kV
- Rated insulation voltage Ui:
- 500 V
- Recommended minimum operational data:
Gold-silver contacts
Voltage
24 VDC
Current
5 mA
Hard silver contacts
Voltage
24 VDC
Current
50 mA
- Switching rating:
- 250 V AC @ 6 A
- Electrical lifetime:
- 50 000 cycles of operation (500 VAC, 10 A)
- Pollution degree:
- 3
- Standards:
- The switches comply with the “Standards for low-voltage switching devices” DIN EN IEC UL 60947-5-1
- Thermal current Ith:
- Max. current as per EN IEC 60947-5-1 6 A
Caractéristiques mécaniques
- Terminal:
- Push-in terminal
- Contact material:
- Gold
- Switching system:
- Snap-action switching element
- Switching system:
- The double-break, snap-action switching element is equipped with one or two independent contact systems, acting as normally open or normally closed contact. The snap-action switching element is fitted with self-cleaning contacts.
- Operating force:
- 1 Normally closed approx. 2 N, 1 Normally open approx. 3 N
- Wire cross section:
- Wire cross-section 0.2 ... 1.0 mm² / AWG 24 to AWG 18Skinning wire 8 mmMax. number of wires: 2stranded cables 0.2 … 0.75 mm²/ AWG 24 bis AWG 18use stranded wires only with wire end ferrules of 8 mm lengthMax. number of stranded cables: 2Only one polarity is allowed on each side when wiring.
- Weight:
- 0.02 kg
Conditions environnementales
- IP Protection:
- IP20
- Operating temperature:
- – 40 °C … + 55 °C
- Storage temperature:
- – 40 °C … + 85 °C
- Shock resistance:
- (single impacts, semi-sinusoidal) 300 m/s², pulse width 18 ms, as per DIN EN 60068-2-27
- Vibration resistance:
- (sinusförmig) 100 m/s² bei 10 Hz…500 Hz, nach DIN EN 60068-2-6, Erhöhtes Breitbandrauschen nach DIN EN 61373, Klasse 1B
- Climate resistance:
- Relative humidity 10 %rh ... 95 %rh (non-condensing) original packaging according to DIN EN IEC 60721-3-1 Class 1C1
Certificats
- Approbations:
- CB (IEC 60947-5-1), cULus, DNV, VDE
- Conformities:
- CE, CCC, UKCA
- REACH:
- REACH compliant
- RoHS:
- RoHS compliant
Autres
- Short Description:
- Switching element - New Version, Snap-action switching element, 250 V AC @ 6 A, Gold, 1 NO, Push-in terminal
- Hints:
- When using the switching element, the application guidelines must be observed.For the third switching element the terminal marking insert is to be ordered separatelyOperating temperature: Other temperatures on requestA suitable enclosure is required for applications with increased protection requirements. In North America, the product must be installed in an enclosure in accordance with UL 50E Type 2 or higher.
- Wiring diagrams:
- Dimension drawings:
