Mushroom-head push button, Series 14, Ø 50 mm, non illuminative, Flush, 1 NC + 1 NO, Gold, IP67, Plug-in terminal, 2.8 x 0.5 mm
- 704.604.5
- 14-271.022
- 14-958.8
- 704.609.9
- Lens colour
- Terminal
- Switching action
- Switching system
- Switching rating
- Contacts Configuration
- Front bezel colour
Ajoute des accessoires & outilage
Votre produit:
Gamme de produits
- HMI function:
- Mushroom-head push button
- Séries:
- Series 14
Front
- Front dimension:
- Ø 50 mm
- Front form:
- Round
- Front bezel colour:
- Nature
- Front bezel material:
- Aluminium
- Front bezel type:
- Flush
Montage
- Design:
- Flush
- Mounting cut-out:
- Ø 30.5 mm
- Mounting type:
- Panel mounting
Partie commande/affichage
- Lens colour:
- Green
- Lens material:
- Plastic
- Lens illumination:
- Non illuminated
- Lens shape:
- Mushroom-head
- Lens optics:
- opaque
- Marking plate colour:
- White
- Marking plate optics:
- translucent
- Marking plate illumination:
- illuminative
Caractéristiques électriques
- Switching voltage and switching current:
250 VAC, 5 A (ohmic)
250 VAC, 3 A (Soldering terminal)
250 VAC, 2 A (inductive, cos(phi) = 0.7)
220 VDC, 0.1 A (inductive, L:R = 30 ms)
110 VDC, 0.2 A (inductive, L:R = 30 ms)
60 VDC, 0.7 A (inductive, L:R = 30 ms)
24 VDC, 2 A (inductive, L:R = 30 ms)
- Contacts Configuration:
- 1 NC + 1 NO
- Switching rating:
- 250 V @ 3 A
- Electrical lifetime:
- 50 000 cycles of operation
- Thermal current Ith:
- The maximum current in continuous operation and at ambient temperature not exceeding the quoted maximum values.3 A
Caractéristiques mécaniques
- Terminal:
- Plug-in terminal, 2.8 x 0.5 mm
- Contact material:
- Gold
- Switching action:
- Maintained
- Switching system:
- Snap-action switching element
- Tightening torque:
- Fixing nut max. 0.25 Nm
- Poids total:
- 0.067 kg
Conditions environnementales
- IP front protection:
- IP67
- Operating temperature:
- – 25 °C … + 55 °C, mounted as a block, make sure the heat can escape freely
- Vibration resistance:
- Max. 100 m / s² from 10 Hz ... 500 Hz, (sinusoidal EN IEC 60068-2-6)
Autres
- Housing colour:
- Black
- Housing material:
- Plastic
- Product attributes:
- For mushroom-head cap Ø 50 mm, flush design
- max. number of switching elements:
- 1
- Wiring diagrams:
Enregistrer ou recommander un produit
Télécharger des fichiers
0 en stock 76.30 USD
Ajouter au panier
Votre produit se compose des éléments suivants 4 COMPONENTS:
Front
- Front form:
- Round
Partie commande/affichage
- Lens colour:
- Green
- Lens material:
- Plastic
- Lens illumination:
- Non illuminated
- Lens shape:
- Mushroom-head
- Lens optics:
- opaque
Caractéristiques mécaniques
- Weight:
- 0.005 kg
Certificats
- REACH:
- REACH compliant
- RoHS:
- RoHS compliant
Autres
- Short Description:
- Lens, Ø 40 mm, Non illuminated, Green, Mushroom-head, Plastic
- Dimension:
- Ø 40 mm
- Hints:
- To obtain IP67, use marking plate Part No. 704.609.9
Télécharger des fichiers
0 en stock 4.34 USD
Ajouter au panier
Front
- Front form:
- Round
Montage
- Mounting type:
- Panel mounting
Partie commande/affichage
- Lens illumination:
- Illuminated
Caractéristiques électriques
- Switching voltage and switching current:
250 VAC, 5 A (ohmic)
250 VAC, 3 A (Soldering terminal)
250 VAC, 2 A (inductive, cos(phi) = 0.7)
220 VDC, 0.1 A (inductive, L:R = 30 ms)
110 VDC, 0.2 A (inductive, L:R = 30 ms)
60 VDC, 0.7 A (inductive, L:R = 30 ms)
24 VDC, 2 A (inductive, L:R = 30 ms)
- Contacts:
- 1 NC / 1 NO
- Rated Operational Voltage Ue:
- 250 VAC/DC according to EN IEC 61058-1
- Switching rating:
- 250 V @ 3 A
- Electrical lifetime:
- 50 000 cycles of operation
- Electric strength:
- 3000 VAC, 50 Hz, 1 min. between all terminals and earth, according to EN/IEC 61058-1
- Protection class:
- ll
- Standards:
- According to EN/IEC 61058-1
- Thermal current Ith:
- The maximum current in continuous operation and at ambient temperature not exceeding the quoted maximum values.3 A
Caractéristiques mécaniques
- Terminal:
- Plug-in terminal, 2.8 x 0.5 mm
- Contact material:
- Gold
- Switching action:
- Maintained
- Switching system:
- Snap-action switching element
- Switching system:
- Self-cleaning, double-break snap action switching system (contact opening width 2 mm x 0.5 mm), 1 normally closed and 1 normally open contact per element.
- Mechanical lifetime:
- 1 Mil. cycles of operation (RCC/RPB)
- Operating force:
- 5 N … 8 N
- Operating Travel:
- 3 mm
- Tightening torque:
- Fixing nut max. 0.25 Nm
- Terminal details 1:
- Snap-action switching element with axial soldering terminals, which can also be used as plug-in terminals 2.8 x 0.5mm
- Weight:
- 0.017 kg
Conditions environnementales
- IP front protection:
- IP67, according to DIN EN 60529
- Operating temperature:
- – 25 °C … + 55 °C, mounted as a block, make sure the heat can escape freely
- Storage temperature:
- – 40 °C … + 85 °C
- Shock resistance:
- Max. 150 m / s², pulse width 11 ms, 3-axis, (semi-sinusoidal as per EN IEC 60068-2-27)
- Vibration resistance:
- Max. 100 m / s² from 10 Hz ... 500 Hz, (sinusoidal EN IEC 60068-2-6)
- Climate resistance:
- Standard condition, as per DIN EN 60068-2-78Standard cyclic, as per DIN IEC 60068-2-30
Certificats
- Approbations:
- CB (IEC 61058-1), CQC, CSA, DNV, EAC, ENEC (EN 61058-1), UL, VDE
- Conformities:
- CE, UKCA, 2011 / 65 / EC (RoHS), 2014 / 35 / EU (LVD)
- REACH:
- REACH compliant
- RoHS:
- RoHS compliant
Autres
- Short Description:
- Actuator, Illuminated, Round, 1 NC / 1 NO, Maintained, Plug-in terminal, 2.8 x 0.5 mm, IP67, according to DIN EN 60529
- Housing colour:
- Black
- max. number of switching elements:
- 1

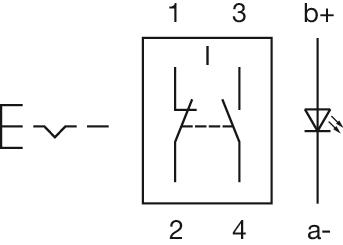

- Wiring diagrams:

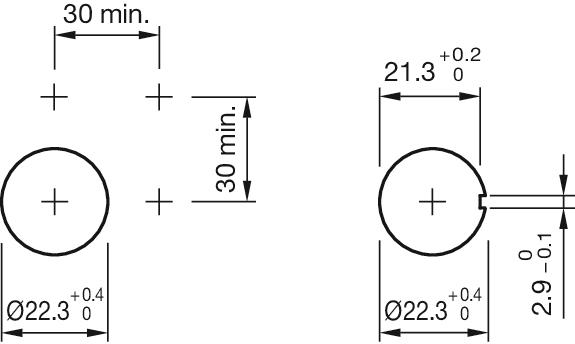

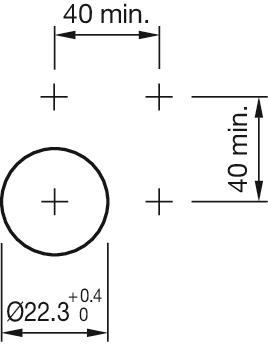

- Mounting cut-outs:

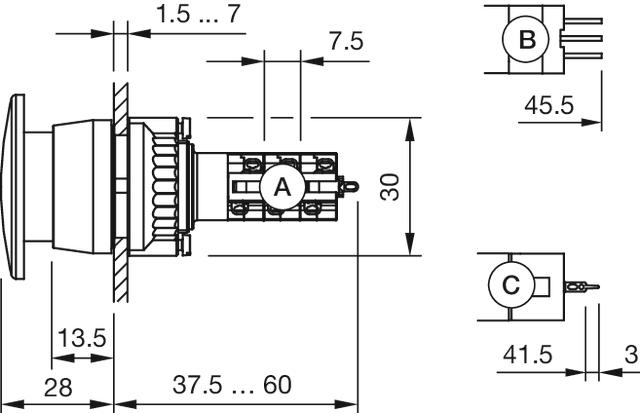

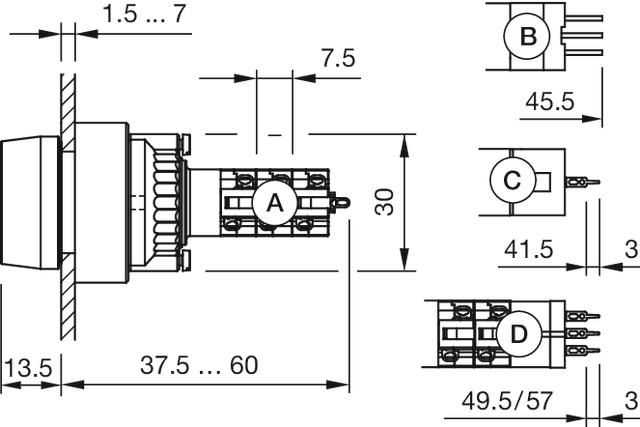

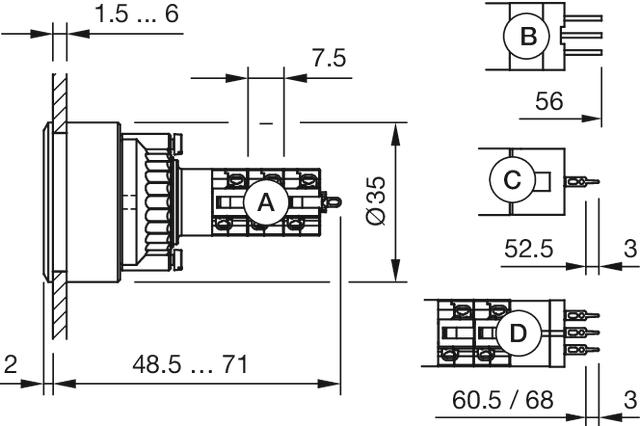

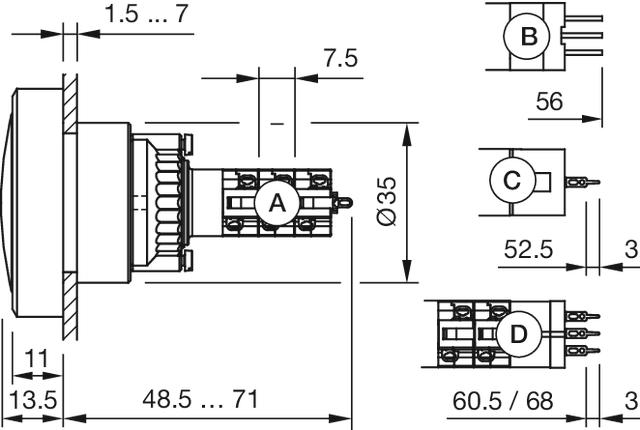

- Dimension drawings:
A = Solder terminal
B = Plug-in terminal 2.8 x 0.5 mm
C = Universal terminal 2.0 mm x 0.5 mm
D = Universal-Solder terminal
A = Solder terminal
B = Plug-in terminal 2.8 x 0.5 mm
C = Universal terminal 2.0 mm x 0.5 mm
D = Universal-Solder terminal
A = Solder terminal
B = Plug-in terminal 2.8 x 0.5 mm
C = Universal terminal 2.0 mm x 0.5 mm
Universal-Solder terminal
A = Solder terminal
B = Plug-in terminal 2.8 x 0.5 mm
C = Universal terminal 2.0 mm x 0.5 mm
D = Universal-Solder terminal
A = Solder terminal
B = Plug-in terminal 2.8 x 0.5 mm
C = Universal terminal 2.0 mm x 0.5 mm
Télécharger des fichiers
Composant pour 36.37 USD
Ajouter au panier
Front
- Front dimension:
- Ø 50 mm
- Front form:
- Round
- Front bezel colour:
- Nature
- Front bezel material:
- Aluminium
- Front bezel type:
- Flush
Montage
- Mounting cut-out:
- Ø 30.5 mm
- Mounting type:
- Panel mounting
Caractéristiques mécaniques
- Weight:
- 0.045 kg
Certificats
- REACH:
- REACH compliant
- RoHS:
- RoHS compliant
Autres
- Short Description:
- Front bezel, Ø 50 mm, Ø 40 mm, Nature, Aluminium
- Internal size:
- Ø 40 mm
- Housing colour:
- Black
- Housing material:
- Plastic
- Product attributes:
- For mushroom-head cap Ø 50 mm, flush design
- Hints:
- The colour of anodised aluminium parts can vary due to technical production reasons

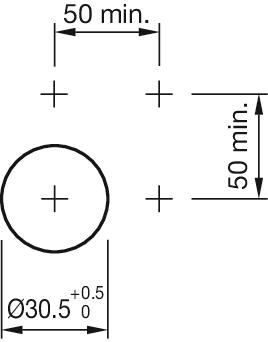

- Mounting cut-outs:
