Assembly settings
Front
Front form
Round
Round
choisir ...
Front bezel shape
Flush
Flush
choisir ...
Front bezel colour
Silver
Silver
choisir ...
Front bezel material
Stainless steel
Stainless steel
choisir ...
Front dimension
Ø 25 mm
Ø 25 mm
choisir ...
Montage
Design
Flush
Flush
choisir ...
Mounting cut-out
Ø 22 mm
Ø 22 mm
choisir ...
Partie commande/affichage
Symbol
No Symbol
No Symbol
choisir ...
Lens shape
Flush
Flush
choisir ...
Lens colour
Silver
Silver
choisir ...
Lens material
Stainless steel
Stainless steel
choisir ...
Lens illumination
Non illuminated
Non illuminated
choisir ...
Caractéristiques mécaniques
Terminal
Plug-in terminal, 2.8 x 0.5 mm
Plug-in terminal, 2.8 x 0.5 mm
choisir ...
Contact material
Gold-plated silver
Gold-plated silver
choisir ...
Switching action
Maintained
Maintained
choisir ...
Conditions environnementales
IP front protection
IP65, IP67
IP65, IP67
choisir ...
Retour
Distribution par
Mouser
Mouser

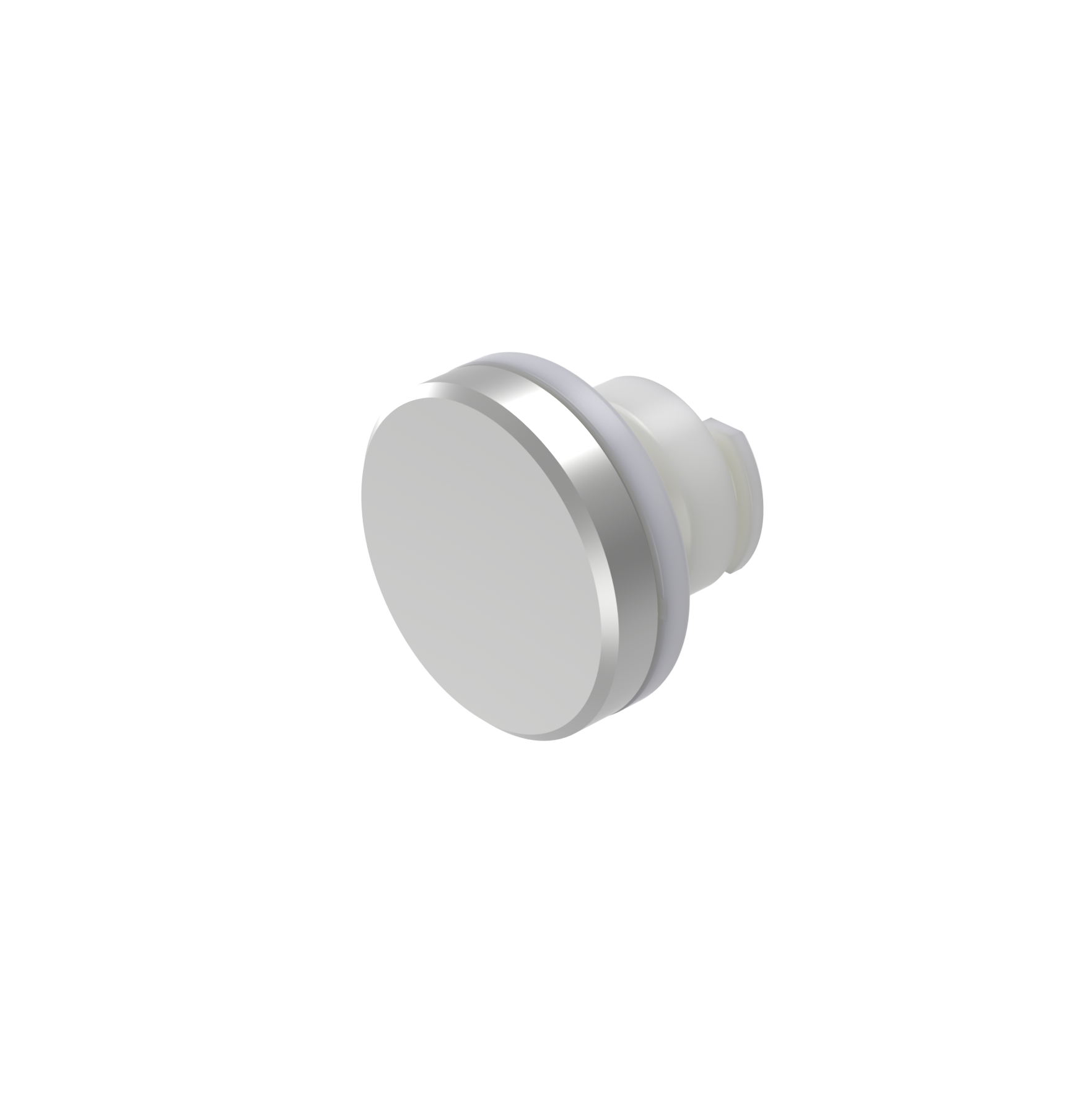

Push button, Series 82, Ø 25 mm, Flush, Gold-plated silver, IP65, IP67, Plug-in terminal, 2.8 x 0.5 mm
- 82-6153.2000
- Lens colour
- Lens shape
- Lens material
- Front dimension
- Front bezel material
- Mounting cut-out
- Terminal
- Switching action
- Contact material
- Symbol
Ajoute des accessoires & outilage
Votre produit:
Gamme de produits
- HMI function:
- Push button
- Séries:
- Series 82
Front
- Front dimension:
- Ø 25 mm
- Front form:
- Round
- Front bezel colour:
- Silver
- Front bezel material:
- Stainless steel
- Front bezel shape:
- Flush
Montage
- Design:
- Flush
- Mounting cut-out:
- Ø 22 mm
Partie commande/affichage
- Lens colour:
- Silver
- Lens material:
- Stainless steel
- Lens illumination:
- Non illuminated
- Lens shape:
- Flush
- Lens optics:
- opaque
- Symbol:
- No Symbol
- Marking symbol shape:
- laser engraved
Caractéristiques électriques
- Switching voltage and switching current:
according to IEC 60947-5-1 (Silver contacts)
Service categorie AC-15
Voltage
Current
24 VAC
1 A
35 VAC
1 A (M12 version)
110 VAC
1 A
220 VAC
0.5 A
Switch rating DC service categorie DC-13 (Silver contacts)
Voltage
Current
24 VDC
0.7 A
35 VDC
0.5 A (M12 version)
110 VDC
0.2 A
220 VDC
0.1 A
according to UL 508 (Silver contacts)
cosφ 0,75 … 0,8
Voltage
Current
120 VAC
5 A
240 VAC
3 A
24 VAC
1 A
- Electrical lifetime:
- 50 000 cycles of operation
- Thermal current Ith:
- 5 A
Caractéristiques mécaniques
- Terminal:
- Plug-in terminal, 2.8 x 0.5 mm
- Contact material:
- Gold-plated silver
- Switching action:
- Maintained
- Tightening torque:
- 0.5 … 0.6 Nm
- Poids total:
- 0.026 kg
Conditions environnementales
- IP front protection:
- IP65, IP67
- Operating temperature:
- – 30 °C … + 70 °C
- Vibration resistance:
- 10 … 500 Hz, amplitude 1.5 mm p-p according to IEC 60068-2-6
Autres
- Housing size:
- 19 mm
- Housing colour:
- Silver
- Housing material:
- Stainless steel
- max. number of switching elements:
- 1
- Wiring diagrams:
- Component layouts:
- Mounting cut-outs:
- Dimension drawings:
A = Solder terminal
B = Screw terminal- Numéro d'article:
- 82-6153.2000
Enregistrer ou recommander un produit
Télécharger des fichiers
0 en stock 32.99 USD
Ajouter au panier
