Illuminated push button, Series 82, Ø 25 mm, Flush, Silver, IP65, IP67, Plug-in terminal, 2.8 x 0.5 mm
- 82-6551.2114
- Shape of illumination
- Lens colour
- Lens material
- Front dimension
- Front bezel material
- Mounting cut-out
- Terminal
- Contact material
- Switching action
- Illumination colour
- Operating voltage
- Symbol
Ajoute des accessoires & outilage
Vue à 360°
Vue à l'échelle
Situation de montage
Vue nocturne
Réalité augmentée
Votre produit:
Gamme de produits
- HMI function:
- Illuminated push button
- Séries:
- Series 82
Front
- Front dimension:
- Ø 25 mm
- Front form:
- Round
- Front bezel colour:
- Silver
- Front bezel material:
- Aluminium
- Front bezel shape:
- Flush
Montage
- Design:
- Flush
- Mounting cut-out:
- Ø 22 mm
Partie commande/affichage
- Lens colour:
- Nature
- Lens material:
- Aluminium
- Lens illumination:
- Illuminated
- Lens shape:
- Flush
- Lens optics:
- opaque
- Symbol:
- No Symbol
- Marking symbol shape:
- unmarkable
- Illumination colour:
- Red
- Shape of illumination:
- Ring
Caractéristiques électriques
- Switching voltage and switching current:
according to IEC 60947-5-1 (Silver contacts)
Service categorie AC-15
Voltage
Current
24 VAC
1 A
35 VAC
1 A (M12 version)
110 VAC
1 A
220 VAC
0.5 A
Switch rating DC service categorie DC-13 (Silver contacts)
Voltage
Current
24 VDC
0.7 A
35 VDC
0.5 A (M12 version)
110 VDC
0.2 A
220 VDC
0.1 A
according to UL 508 (Silver contacts)
cosφ 0,75 … 0,8
Voltage
Current
120 VAC
5 A
240 VAC
3 A
24 VAC
1 A
- Operating voltage:
- 24 V AC/DC ±10 %
- Operation current:
- 7 mA
- Electrical lifetime:
- 50 000 cycles of operation
- Thermal current Ith:
- 5 A
Caractéristiques mécaniques
- Terminal:
- Plug-in terminal, 2.8 x 0.5 mm
- Contact material:
- Silver
- Switching action:
- Maintained
- Switching system:
- Snap-action switching element
- Tightening torque:
- 0.5 … 0.6 Nm
- Poids total:
- 0.026 kg
Conditions environnementales
- IP front protection:
- IP65, IP67
- Operating temperature:
- – 30 °C … + 70 °C
- Vibration resistance:
- 10 … 500 Hz, amplitude 1.5 mm p-p according to IEC 60068-2-6
Autres
- Housing size:
- 19 mm
- Housing colour:
- Nature
- Housing material:
- Aluminium
- max. number of switching elements:
- 1
- Wiring diagrams:
- Component layouts:

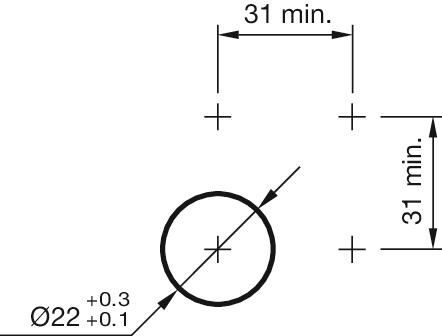

- Mounting cut-outs:
- Dimension drawings:
A = Solder terminal
B = Screw terminal- Numéro d'article:
- 82-6551.2114
Enregistrer ou recommander un produit
Télécharger des fichiers
0 en stock 24.56 USD
Ajouter au panier
