Capacitive sensor switch with IO-Link Standard, Series 84, Ø 30 mm, illuminative, Flush, IP69K, Connector M12
- 84-ASKS-C17-04A7
- Symbol
Ajoute des accessoires & outilage
Votre produit:
Gamme de produits
- HMI function:
- Push button
- Séries:
- Series 84
Front
- Front dimension:
- Ø 30 mm
- Front form:
- Round
- Front bezel material:
- Plastic
Montage
- Design:
- Flush
- Mounting cut-out:
- Ø 22.5 mm
- Mounting type:
- Panel mounting
Partie commande/affichage
- Lens material:
- Plastic
- Lens illumination:
- Illuminated
- Lens shape:
- Flush
- Lens optics:
- transparent
- Symbol:
- START (C17)
Caractéristiques électriques
- Operating voltage:
- 8.4 - 32 V DC
- Communication interface:
- IO-Link specification
Caractéristiques mécaniques
- Terminal:
- Connector M12
- Switching system:
- Capacitive
- Poids total:
- 0.015 kg
Conditions environnementales
- IP front protection:
- IP69K
- Operating temperature:
- – 30 °C … + 65 °C
Autres
- Housing colour:
- Black
- Housing material:
- Plastic
- max. number of switching elements:
- 1
- Wiring diagrams:
Enregistrer ou recommander un produit
Télécharger des fichiers
Produits pour 101.69 USD
Ajouter au panier
Votre produit se compose des éléments suivants 1 COMPONENTS:
Front
- Front dimension:
- Ø 30 mm
- Front form:
- Round
- Front bezel material:
- Plastic
Montage
- Design:
- Flush
- Mounting cut-out:
- Ø 22.5 mm
- Mounting type:
- Panel mounting
Partie commande/affichage
- Lens material:
- Plastic
- Lens illumination:
- Illuminated
- Lens shape:
- Flush
- Lens optics:
- transparent
- Symbol:
- START (C17)
Caractéristiques électriques
- Operating voltage:
- 8.4 - 32 V DC
- Communication interface:
- IO-Link specification
Caractéristiques mécaniques
- Terminal:
- Connector M12
- Switching system:
- Capacitive
- Operating force:
- No actuating force necessary
- Weight:
- 0.015 kg
Conditions environnementales
- IP front protection:
- IP69K
- IK front protection:
- IK08
- Operating temperature:
- – 30 °C … + 65 °C
- Climate resistance:
- Relative humidity, max. 95%, non-condensing
Certificats
- Approbations:
- CSA, EHEDG
- Conformities:
- CE, UKCA
- REACH:
- REACH compliant
- RoHS:
- RoHS compliant
Autres
- Short Description:
- Capacitive sensor switch with IO-Link Standard, Ø 22.5 mm, Ø 30 mm, Flush, Illuminated, Plastic, transparent, Round, Plastic, Connector M12, IP69K, IK08, START (C17)
- Housing colour:
- Black
- Housing material:
- Plastic

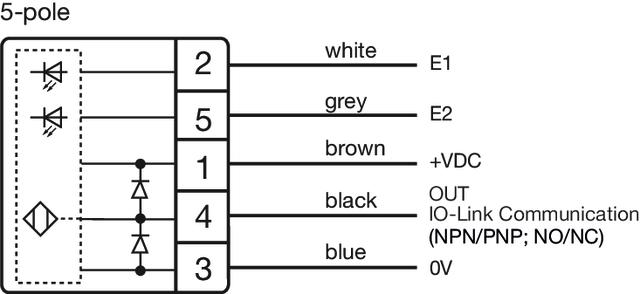

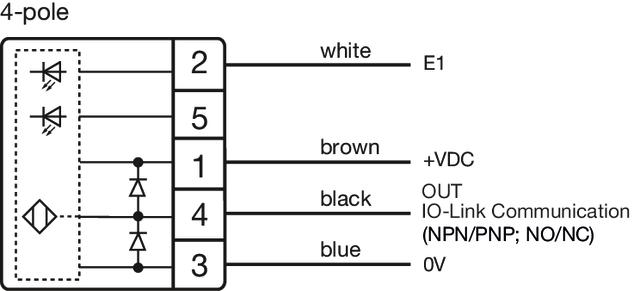

- Wiring diagrams:
- Component layouts:

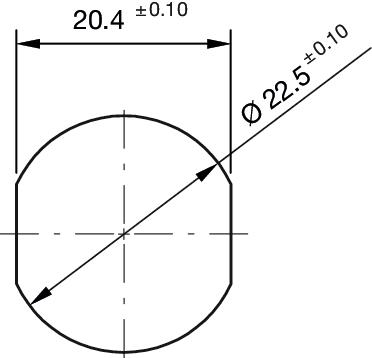

- Mounting cut-outs:

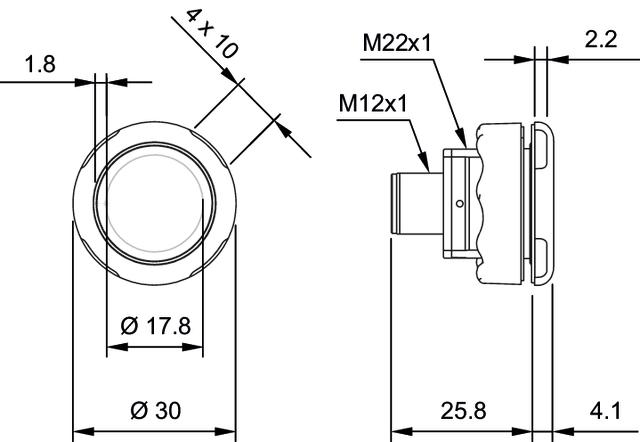

- Dimension drawings:
