Selector switch 2 positions, Series 14, 2 positions, Flush, 2 NC + 2 NO, Soldering terminal
- K14-507.22200
- Terminal
- Contacts Configuration
Ajoute des accessoires & outilage
Votre produit:
Gamme de produits
- HMI function:
- Selector switch
- Séries:
- Series 14
Front
- Front dimension:
- Ø 35 mm
- Front form:
- Round
- Front bezel colour:
- Nature
- Front bezel material:
- Aluminium
Montage
- Design:
- Flush
- Mounting cut-out:
- Ø 30.5 mm
- Mounting type:
- Panel mounting
Partie commande/affichage
- Lever colour:
- Black
- Lever shape:
- short
Caractéristiques électriques
- Switching voltage and switching current:
250 VAC, 5 A (ohmic)
250 VAC, 3 A (Soldering terminal)
250 VAC, 2 A (inductive, cos(phi) = 0.7)
220 VDC, 0.1 A (inductive, L:R = 30 ms)
110 VDC, 0.2 A (inductive, L:R = 30 ms)
60 VDC, 0.7 A (inductive, L:R = 30 ms)
24 VDC, 2 A (inductive, L:R = 30 ms)
- Contacts Configuration:
- 2 NC + 2 NO
- Switching rating:
- 250 V AC @ 3 A
- Electrical lifetime:
- 50 000 cycles of operation
- Thermal current Ith:
- 3 A
Caractéristiques mécaniques
- Terminal:
- Soldering terminal
- Contact material:
- Gold-plated silver
- Switching action:
- Rest - Maintained
- Switching system:
- Snap-action switching element
- Switching positions:
- 2 positions
- Switching angle:
- 90° right
- Tightening torque:
- Fixing nut max. 0.25 Nm
- Poids total:
- 0.041 kg
Conditions environnementales
- IP front protection:
- IP67
- Operating temperature:
- – 25 °C … + 55 °C
- Vibration resistance:
- Max. 100 m / s² from 10 Hz ... 500 Hz, (sinusoidal EN IEC 60068-2-6)
Autres
- Housing colour:
- Black
- Housing material:
- Plastic
- max. number of switching elements:
- 1
- Wiring diagrams:
Enregistrer ou recommander un produit
Télécharger des fichiers
Produits pour 66.78 USD
Ajouter au panier
Votre produit se compose des éléments suivants 1 COMPONENTS:
Front
- Front dimension:
- Ø 35 mm
- Front bezel colour:
- Nature
- Front bezel material:
- Aluminium
Montage
- Mounting cut-out:
- Ø 30.5 mm
- Mounting type:
- Panel mounting
Partie commande/affichage
- Lever colour:
- Black
- Lever material:
- plastic
- Lever shape:
- short
Caractéristiques électriques
- Switching voltage and switching current:
250 VAC, 5 A (ohmic)
250 VAC, 3 A (Soldering terminal)
250 VAC, 2 A (inductive, cos(phi) = 0.7)
220 VDC, 0.1 A (inductive, L:R = 30 ms)
110 VDC, 0.2 A (inductive, L:R = 30 ms)
60 VDC, 0.7 A (inductive, L:R = 30 ms)
24 VDC, 2 A (inductive, L:R = 30 ms)
- Contacts:
- 2 NC / 2 NO
- Rated Operational Voltage Ue:
- 250 VAC/DC according to EN IEC 61058-1
- Switching rating:
- 250 V AC @ 3 A
- Electrical lifetime:
- 50 000 cycles of operation
- Electric strength:
- 3000 VAC, 50 Hz, 1 min. between all terminals and earth, according to EN/IEC 61058-1
- Protection class:
- ll
- Standards:
- According to EN/IEC 61058-1
- Thermal current Ith:
- 3 A
Caractéristiques mécaniques
- Terminal:
- Soldering terminal
- Contact material:
- Gold-plated silver
- Switching action:
- Rest - Maintained
- Switching system:
- Snap-action switching element
- Switching positions:
- 2 positions
- Switching angle:
- 90° right
- Mechanical lifetime:
- 1 Mil. cycles of operation (RCC/RPB)
- Operating force:
- 5 N … 8 N
- Operating Travel:
- ca. 90°
- Tightening torque:
- Fixing nut max. 0.25 Nm
- Wire cross section:
- Max. wire diameter 2 wires à 1.2 mmMax. wire cross-section of stranded cable 1 x 1 mm²
- Weight:
- 0.041 kg
Conditions environnementales
- IP front protection:
- IP67, according to DIN EN 60529
- Operating temperature:
- – 25 °C … + 55 °C
- Storage temperature:
- – 40 °C … + 85 °C
- Shock resistance:
- Max. 150 m / s², pulse width 11 ms, 3-axis, (semi-sinusoidal as per EN IEC 60068-2-27)
- Vibration resistance:
- Max. 100 m / s² from 10 Hz ... 500 Hz, (sinusoidal EN IEC 60068-2-6)
- Climate resistance:
- Standard condition, as per DIN EN 60068-2-78Standard cyclic, as per DIN IEC 60068-2-30
Certificats
- Approbations:
- CB (IEC 61058-1), CQC, CSA, DNV, EAC, ENEC (EN 61058-1), UL, VDE
- Conformities:
- CE, UKCA, 2011 / 65 / EC (RoHS), 2014 / 35 / EU (LVD)
- REACH:
- REACH compliant
- RoHS:
- RoHS compliant
Autres
- Short Description:
- Selector switch 2 positions, Rest - Maintained, 250 V AC @ 3 A, 2 NC / 2 NO, Soldering terminal, Aluminium
- Housing colour:
- Black
- Housing material:
- Plastic
- Hints:
- The colour of anodised aluminium parts can vary due to technical production reasons
- max. number of switching elements:
- 1
- Switching positions:

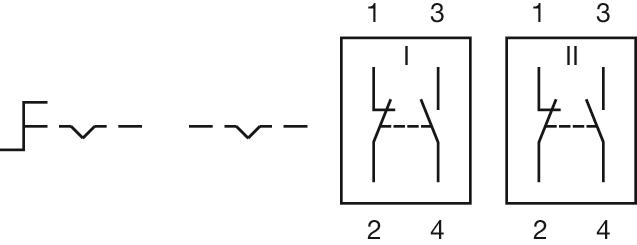

- Wiring diagrams:

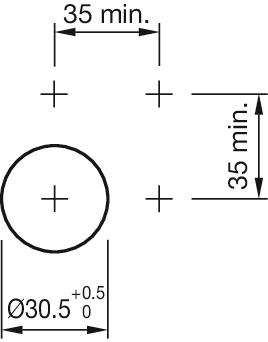

- Mounting cut-outs:

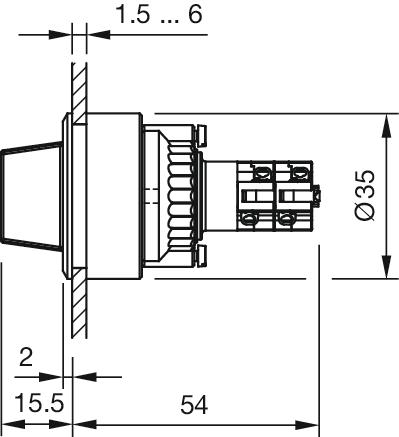

- Dimension drawings:
